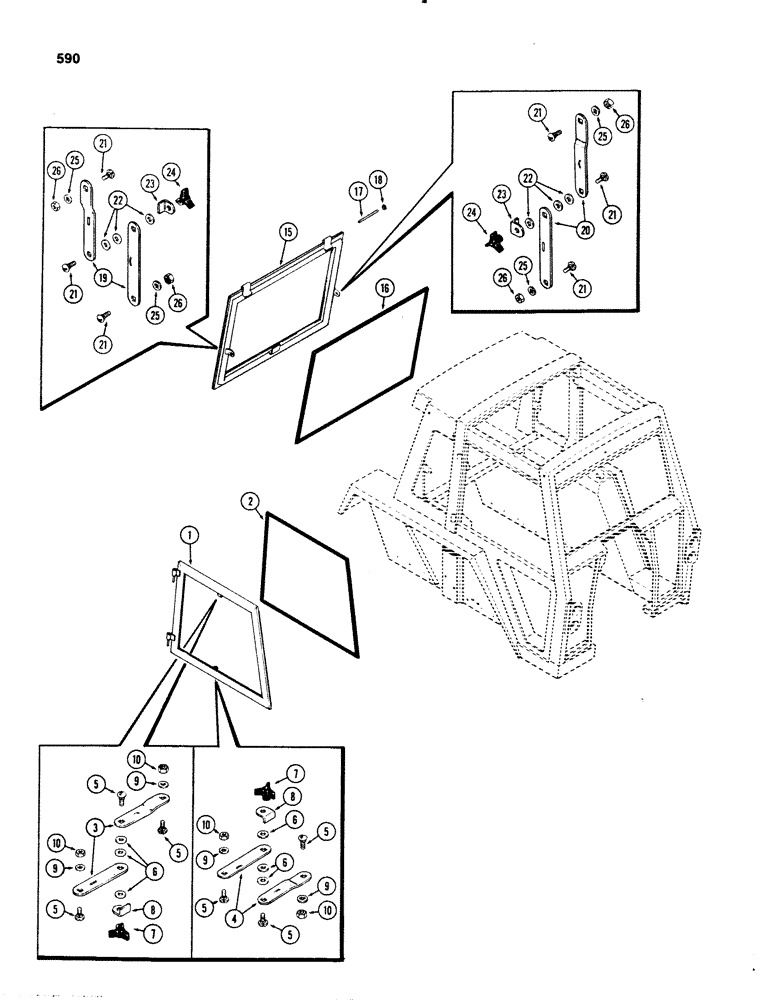

Запчасти Case IH 1070 (0590) - CAB, WINDOWS, USED CAB SERIAL NUMBERS 7814176 TO 7821251 (09) - CHASSIS/ATTACHMENTS

1

F89672

WINDOW

ASSY - RH (Includes glass) (Replaces F89391), Includes: Ref. 2

1шт.

For glass data & ordering, see figure 708

1шт.

2

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window, 134-5/8" (Order A42504)

1шт.

A42504

TYRE/TIRE

WEATHERSTRIP - window, (50' roll)

1шт.

3

A42926

ARM

ASSY - window, upper (Includes Ref 5 thru 8)

1шт.

4

A42927

ARM

ASSY - window, lower, Includes: Ref. 5 - 8

1шт.

5

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" NC round head square neck

3шт.

6

F63299

WASHER

- friction

3шт.

7

F63415

KNOB

- regulator

2шт.

8

F63665

CLIP

- pivot

1шт.

9

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex, lock

4шт.

15

F89790

WINDOW

ASSY - rear (Includes glass), Includes: Ref. 16

1шт.

For glass data & ordering, see figure 708

1шт.

16

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window, 150-1/4" (Order A42504)

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP - window (50' roll)

1шт.

17

A42524

PIN,9.53mm OD x 119.38mm L

- rear window hinge

2шт.

18

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

19

F63203

ARM

ASSY - rear window, RH (Includes Ref 21-23)

1шт.

20

F63280

ARM

ASSY - rear window, LH, Includes: Ref. 21 - 23

1шт.

21

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" NC round head square neck

3шт.

22

F63299

WASHER

- friction

3шт.

23

F63665

CLIP

- pivot

1шт.

24

F63415

KNOB

- regulator

2шт.

25

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

4шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex, lock

4шт.
