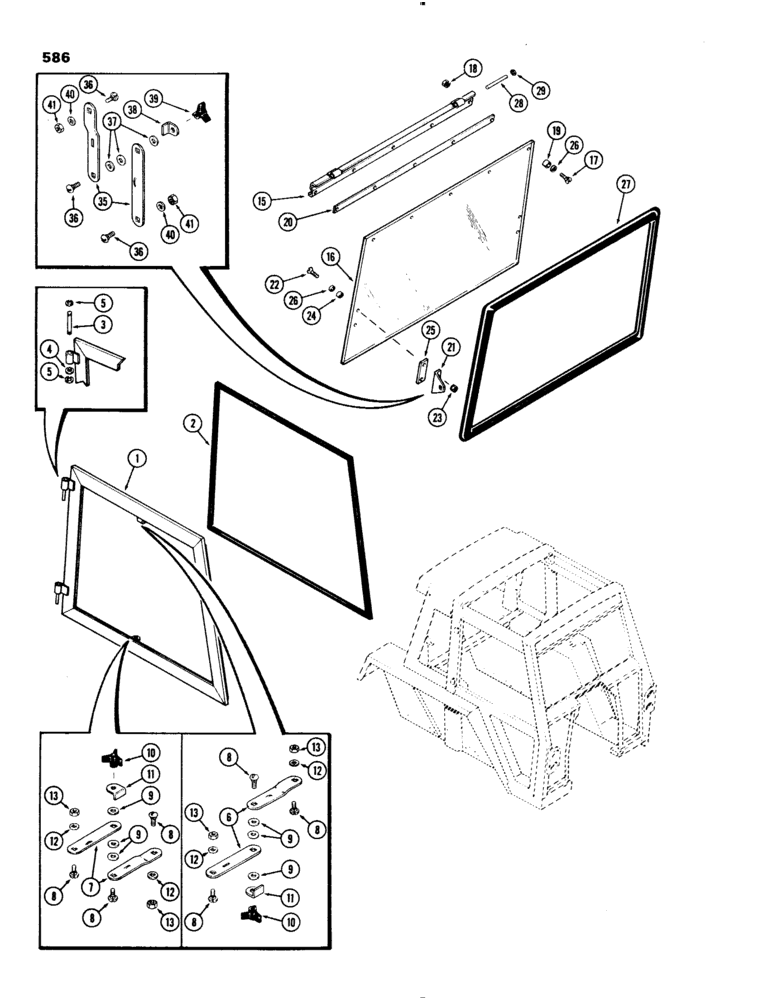

Запчасти Case IH 1070 (0586) - CAB, WINDOWS, 1ST USED CAB SERIAL NUMBER 7872700 (09) - CHASSIS/ATTACHMENTS

1

F98125

FRAME

WINDOW ASSY - RH (Includes glass) (Replaces F89391), Includes: Ref. 2 - 5

1шт.

For glass data & ordering, see figure 678

1шт.

2

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window, 134-5/8" (Order A42504)

1шт.

3

F63729

PIN

- hinge

2шт.

4

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- 25/64 x 3/4 x 1/32"

2шт.

5

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

A42504X

FILLING STRIP

WEATHERSTRIP - window (50' roll)

1шт.

6

A42926

ARM

ASSY - window, upper (Includes Ref 8 thru 11)

1шт.

7

A42927

ARM

ASSY - window, lower, Includes: Ref. 8 - 11

1шт.

8

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" NC round head square neck

3шт.

9

F63299

WASHER

- friction

3шт.

10

F63415

KNOB

- regulator

2шт.

11

F63665

CLIP

- pivot

1шт.

12

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

4шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex lock

4шт.

15

F98160

FRAME

CHANNEL - rear window pivot

1шт.

16

F64202

GLASS

- rear window

1шт.

17

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, #10-24 x 3/4" oval head

5шт.

18

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

5шт.

19

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw

5шт.

20

F64205

SPACER

- rubber, Serial Range: window-channel

1шт.

21

F64204

BRACKET

- regulator arm

2шт.

22

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, #10-24 x 3/4" oval head

4шт.

23

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

24

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw

4шт.

25

F64140

SPACER

-, Serial Range: bracket-glass

2шт.

26

F43576

WASHER

- finishing

9шт.

27

F64499

SEAL

SEAL - window edge (153" long)

1шт.

28

A42524

PIN,9.53mm OD x 119.38mm L

- hinge

2шт.

29

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

35

F63203

ARM

ASSY - rear window, RH (Includes Ref 36-38), Includes: Ref. 36 - 38

1шт.

36

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" NC round head square neck

3шт.

37

F63299

WASHER

- friction

3шт.

38

F63665

CLIP

- pivot

1шт.

39

F63415

KNOB

- regulator

2шт.

40

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

4шт.

41

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex lock

4шт.
