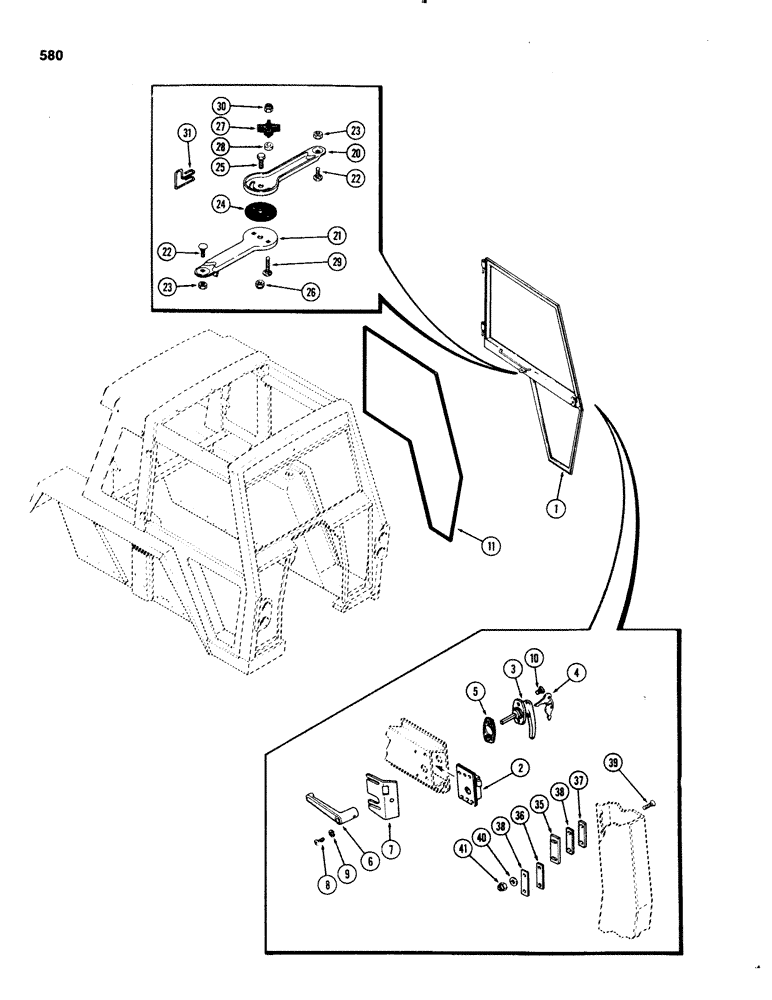

Запчасти Case IH 1070 (0580) - CAB, DOOR, USED CAB SERIAL NUMBERS 7821251 TO 7838473 (09) - CHASSIS/ATTACHMENTS

1

F89394

DOOR

ASSY - cab (Includes glass), Includes: Ref. 2 - 10

1шт.

For glass data & ordering, see figure 678

1шт.

2

F98122

LATCH

LOCK - door (Replaces F89710)

1шт.

3

F64122

HANDLE

ASSY - locking (Replaces A42572), Includes: Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEY - door lock

2шт.

5

A42913

GASKET

- outside handle

1шт.

6

F63925

HANDLE

ASSY - inside, Includes: Ref. 7

1шт.

176-49

SCREW - 5/16 x 5/16" NC slotted head cone point set

1шт.

7

F63658

COVER

- door latch

1шт.

8

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" round head

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- #10-24 x 5/8" oval head Phillips

2шт.

11

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - door, 180-1/2" (Order A42504)

1шт.

A42504

TYRE/TIRE

WEATHERSTRIP - (50' roll)

1шт.

20

F63990

ARM

- door, lower

1шт.

21

F63991

ARM

- door, upper

1шт.

In the Artwork should be reversed.

1шт.

22

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8 x 3/4" NC round head square neck

2шт.

23

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - 3/8" NC hex, crown lock

2шт.

24

F63405

DISC

- friction, door arm

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

26

231-1445

NUT,5/16"-18, GB

NUT - 5/16" NC hex lock

1шт.

27

F63415

KNOB

- door arm

1шт.

28

F63586

BUSHING

SPACER - knob

1шт.

29

111-261

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - 5/16 x 2" NC round head square neck

1шт.

30

131-1117

LOCK NUT,5/16"-18, GA

NUT - 5/16" NC hex crown lock

1шт.

31

F64025

DOOR

WIRE - door stop

1шт.

35

F63783

CATCH

- door

1шт.

36

F63784

SHIM

- door catch (12 ga)

1шт.

37

F63785

SHIM

- door catch (14 ga)

1шт.

38

F63786

SHIM

- door catch (20 ga)

2шт.

39

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- 1/4 x 1" NC flat head

2шт.

40

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

41

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex lock

2шт.
