(0574) - CAB, AIR FILTER, 1ST USED CAB SERIAL NUMBER 7800701

Запчасти Case IH 1070 (0574) - CAB, AIR FILTER, 1ST USED CAB SERIAL NUMBER 7800701 (09) - CHASSIS/ATTACHMENTS

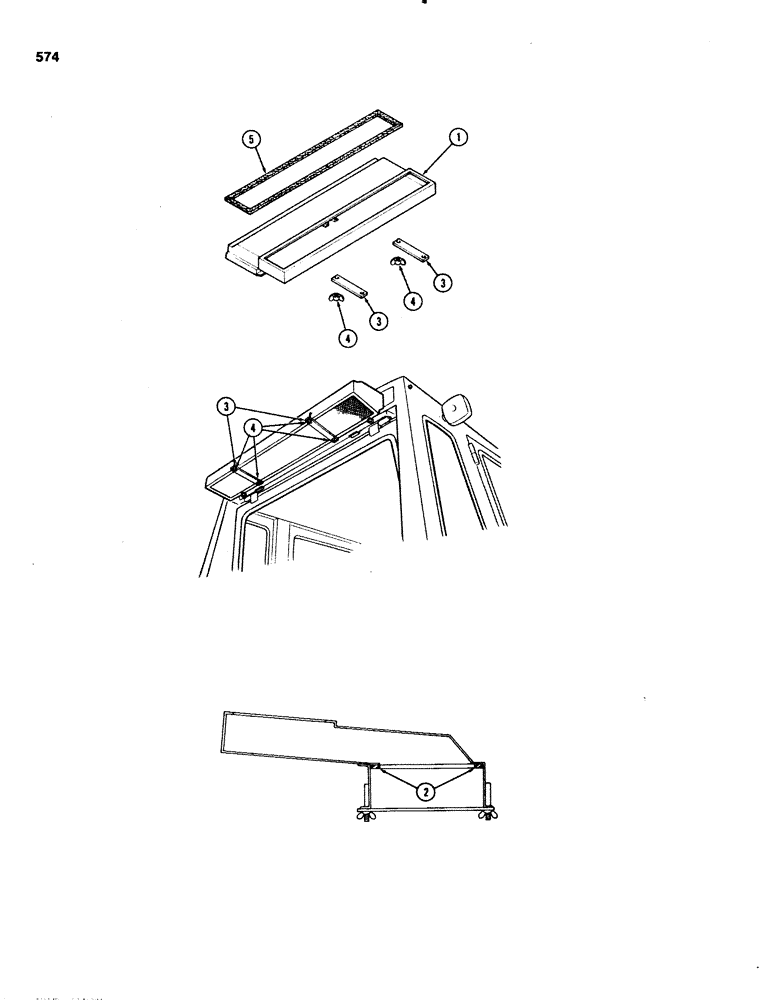

Схема запчастей Case IH 1070 - (0574) - CAB, AIR FILTER, 1ST USED CAB SERIAL NUMBER 7800701 (09) - CHASSIS/ATTACHMENTS
2
4
4
1
3
4
3
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

ATTACHMENT - air filter (Mach. Item) (Replaces A65701) (Order components), Includes: Ref. 1 - 5

1шт.

A66394

HOUSING ASSY. - filter (Metal), Includes: Ref. 1 - 4

1шт.

1

A44661

HOUSING - filter

1шт.

2

A44660

GASKET -, Serial Range: housing-filter

1шт.

3

A44436

BAR

- filter retainer

2шт.

4

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

5

A44500

GASKET

- housing to cab (Replaces A44438)

1шт.
