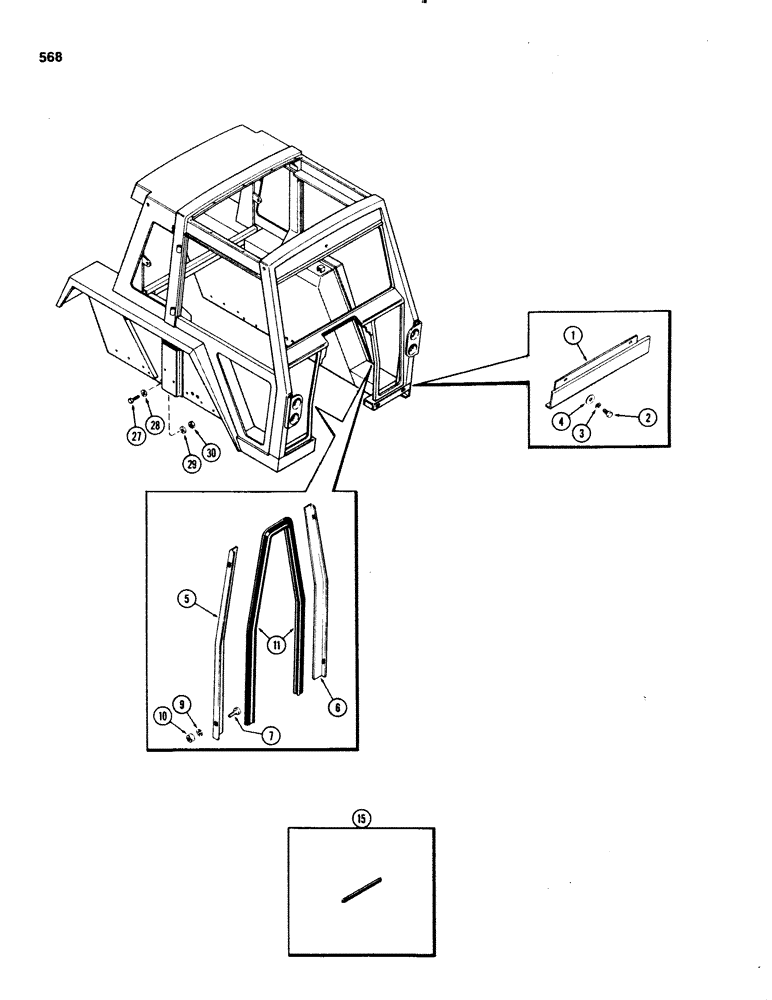

Запчасти Case IH 1070 (0568) - CAB, LOWER SHEET METAL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
F98131
CAB - w/o heater or air conditioner (Machine Item) (1st used cab ser no. 7849601)
1шт.
F89971
CAB - w/o heater or air conditioner (Machine Item) (Used cab ser nos., Serial Range: 7821251-7849601)
1шт.
F98132
CAB - w/air conditioner (Machine Item) (1st used cab ser no. 7849601)
1шт.
F89972
CAB - w/air conditioner (Machine Item) (Used cab ser nos., Serial Range: 7821251-7849601)
1шт.
F98133
CAB - w/heater (Machine Item) (1st used cab ser no. 7849601)
1шт.
F89973
CAB - w/heater (Machine Item) (Used cab ser nos., Serial Range: 7821251-7849601)
1шт.
F98134
CAB - w/air conditioner & heater (Machine Item) (1st used cab ser no. 7849601)
1шт.
F89974
CAB - w/air conditioner & heater (Machine Item) (Used cab ser nos., Serial Range: 7821251-7849601)
1шт.
1
F89392
PANEL - battery access
1шт.
2
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
3
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
4
195-521
WASHER,5/16", SAE
- 3/8 x 1-1/8 x 1/16'
2шт.
5
A61138
FILLER - dust shield, RH
1шт.
6
A61139
FILLER - dust shield, LH
1шт.
9
192-44
LOCK WASHER
- lock, 1/4"
4шт.
10
129-517
NUT - 1/4" NC hex
4шт.
11
A62885
SEAL
- dust shield (90" long)
1шт.
To be attached with adhesive 345-22
1шт.
15
NSS
NOT SOLD SEPARAT
MOLDING - under hoses (6" long) (Order F63578)
2шт.
To be attached with adhesive 345-22
1шт.
F63578
GASKET
MOLDING - U Type, 24-1/2" long (cut as required)
1шт.
27
113-286
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd
- 3/8 x 3/4" NC hex
2шт.
27
113-287
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
- 3/8 x 1-3/4" NC hex
4шт.
27
113-268
BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd
- 3/8 x 1" NC hex
14шт.
28
195-525
WASHER,3/8", SAE
- 3/8 x 1-1/8 x 1/16"
38шт.
29
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
20шт.
30
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
18шт.
Выбрано товаров: 28
