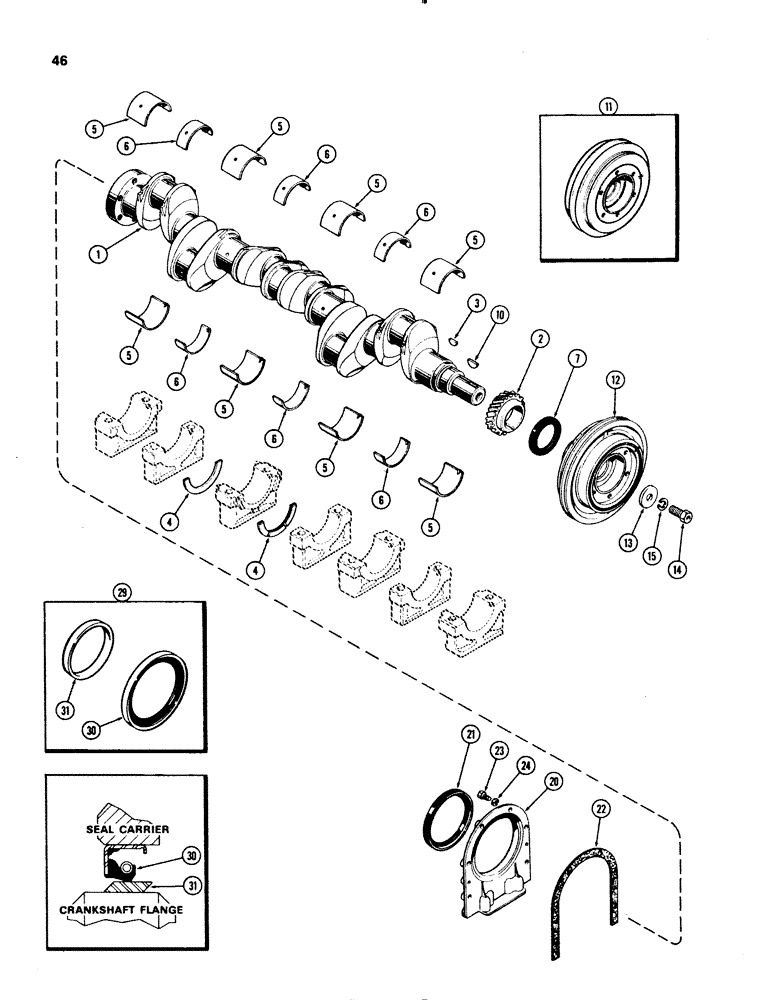

Запчасти Case IH 1070 (0046) - CRANKSHAFT, 451B DIESEL ENGINE (02) - ENGINE

1

A136106

CRANKSHAFT

ASSY - engine (Replaces A58860), Includes: Ref. 2

1шт.

2

A66404

GEAR

- crankshaft front (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust (.185") (Replaces A58786)

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust (.191")

2шт.

5

A43163

BEARING LINER

LINER - main bearing, wide (Std) (Replaces A42490)

4шт.

5

A43164

BEARING LINER

LINER - main bearing, wide (-.002") (Replaces A42486)

4шт.

5

A43165

BEARING LINER

LINER - main bearing, wide (-.010") (Replaces A42487)

4шт.

5

A43166

BEARING LINER

LINER - main bearing, wide (-.020") (Replaces A42488)

4шт.

5

A42489

BEARING

LINER - main bearing, wide (-.030")

4шт.

6

A43158

BEARING LINER

LINER - main bearing, narrow (Std) (Replaces A42492)

3шт.

6

A42482

LINING

LINER - main bearing, narrow (-.002")

3шт.

6

A43160

BEARING LINER

LINER - main bearing, narrow (-.010") (Replaces A42483)

3шт.

6

A43161

BEARING SET

LINER - main bearing, narrow (-.020") (Replaces A42484)

3шт.

6

A43162

BEARING LINER

LINER - main bearing, narrow (-.030") (Replaces A42485)

3шт.

7

A62049

OIL SEAL

- crankshaft, front, 2-5/8 x 3-5/8 x 29/64"

1шт.

10

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

11

A66446

PULLEY

- fan drive (1st used trac. ser. no. 8693001)

1шт.

12

A58871

FAN

PULLEY - fan drive (Used prior to trac ser no. 8693001)

1шт.

A58871 no longer available. OK to use A66446 instead. May have to replace compressor clutch if going from 11mm belt to 1/2" belt. See Figure 704 in this book for compressor clutch info.

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- crankshaft rear, 4-3/4 x 5-3/4 x 1/2" (See Ref. 29)

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

29

A43194

KIT

- crankshaft wear seal, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil, 4-7/8 x 5-3/4 x 1/2"

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear, 4-3/4 x 4-7/8 x 9/16"

1шт.
