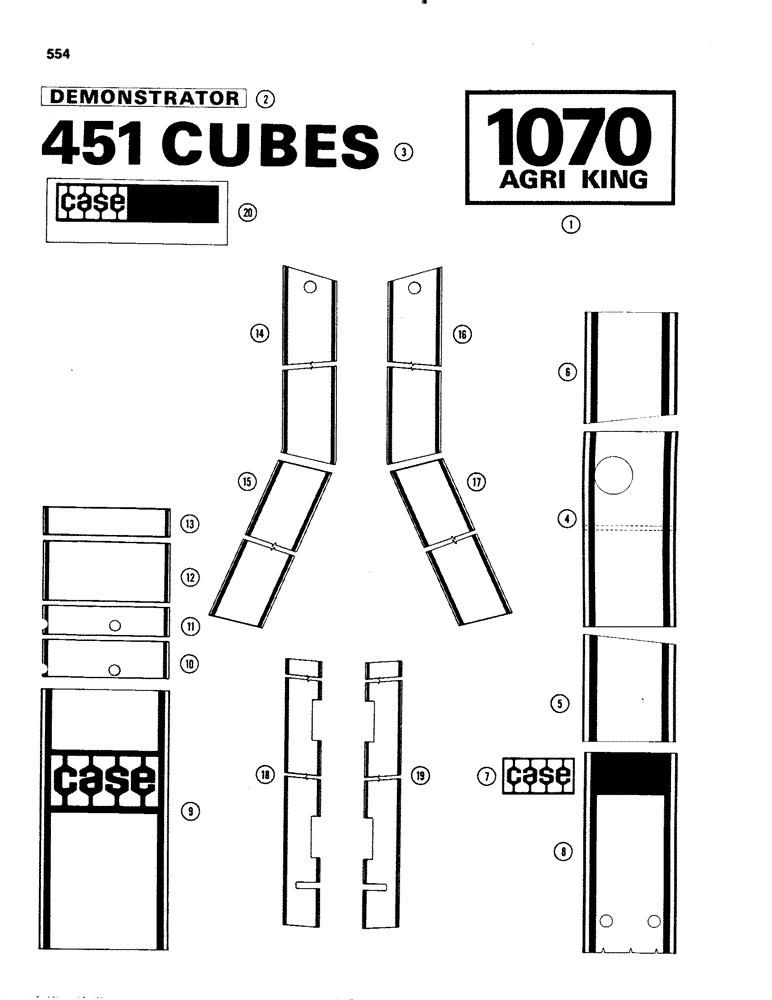

Запчасти Case IH 1070 (0554) - DECALS, DEMONSTRATOR (09) - CHASSIS/ATTACHMENTS

1

321-1817

DECAL

- 1070 Agri-King, front panels & fuel tank

3шт.

2

321-1875

DECAL

- Demonstrator

2шт.

Decal is mounted on cab top sides. When cab is not used mount decal on fender top sides

1шт.

3

321-2098

DECAL - 451 Cubes, decal panel

2шт.

4

321-1681

DECAL

- strip, front hood top

1шт.

5

321-1690

DECAL

- strip, front upper, RH

1шт.

6

321-1691

DECAL

- strip, front upper, LH

1шт.

7

321-1684

DECAL

- Case, front side sheets

2шт.

8

321-1685

DECAL

- strip, lower front panel

2шт.

9

321-1877

DECAL

- strip Case, fuel tank

1шт.

10

321-1900

DECAL - strip, spacer plate (2-7/32" wide)

1шт.

11

321-1886

DECAL - strip, rear cab panel (2-13/16" wide)

1шт.

12

321-1878

DECAL - strip, rear cab panel (4-3/4" wide)

1шт.

13

321-1879

DECAL - strip, rear window frame (2" wide)

2шт.

14

321-1880

DECAL - strip, upper RH front post

1шт.

15

321-1882

DECAL - strip, lower RH front post

1шт.

16

321-1881

DECAL - strip, upper LH front post

1шт.

17

321-1883

DECAL - strip, lower LH front post

1шт.

18

321-1884

DECAL - strip, rear RH side post

1шт.

19

321-1885

DECAL - strip, rear LH side post

1шт.

20

321-1846

DECAL - dealer's name, LH decal panel

1шт.
