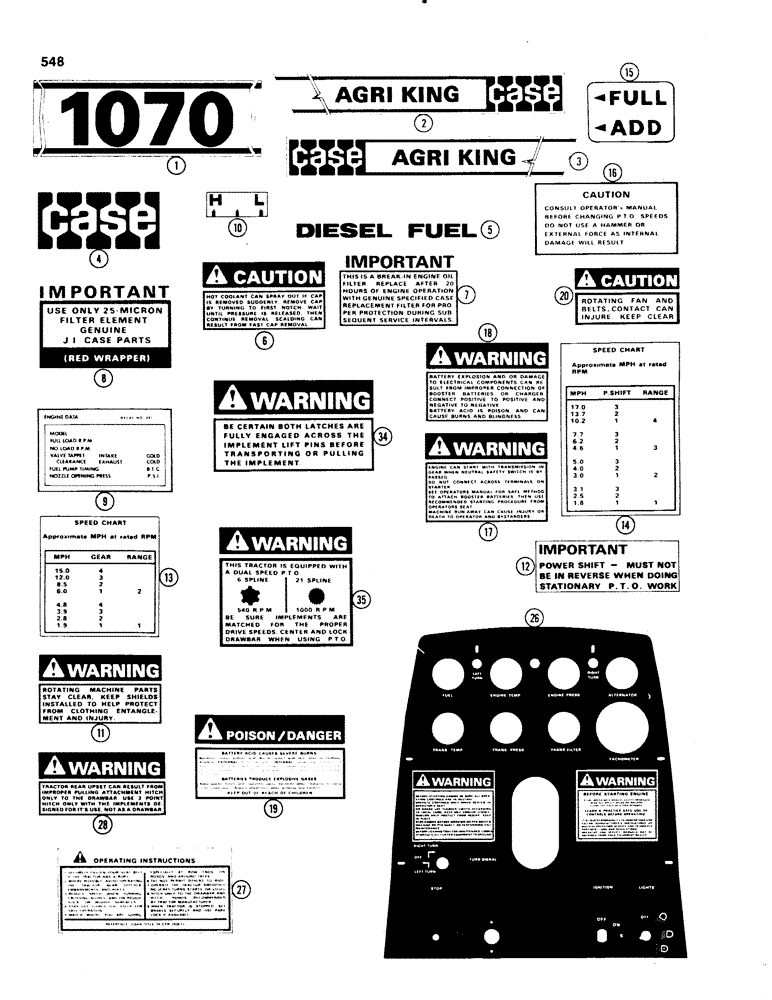

Запчасти Case IH 1070 (0548) - DECALS, 1ST USED TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS/ATTACHMENTS

A45264

KIT

- decal, Includes: Ref. 1 - 20

1шт.

1

321-2661

DECAL

- 1070

2шт.

2

321-2670

DECAL

- Case Agri-king, RH side

1шт.

3

321-2671

DECAL

- Case Agri-king, LH side

1шт.

4

321-2600

DECAL

- Case (on fuel tank)

1шт.

5

321-2601

DECAL

- Diesel Fuel (on fuel tank)

1шт.

6

321-3708

DECAL

- pressure cooling system (Replaces 321-2100)

1шт.

7

321-2101

DECAL

- engine oil filter change

1шт.

8

321-1763

DECAL

- oil filter (25 micron)

1шт.

9

321-2315

DECAL

- engine data

1шт.

10

321-1335

DECAL

- seat adjustment indicator

1шт.

11

321-3710

DECAL

- warning, shields (Replaces 321-2682)

1шт.

12

321-2741

DECAL

- Important, power shift

1шт.

13

321-1825

DECAL

-speed chart (8 speed mechanical shift)

1шт.

14

321-1826

DECAL

- speed chart (12 speed power shift)

1шт.

15

321-1642

DECAL

- Add-Full (transmission case)

1шт.

16

321-1650

DECAL

- Caution, PTO

1шт.

17

321-3709

DECAL

- jumper cables (Replaces 321-2788)

1шт.

18

321-2707

DECAL - booster-charger connection

1шт.

19

321-2996

DECAL

- battery

1шт.

20

321-3596

DECAL

- warning, fan

1шт.

26

321-3764

DECAL

- operational procedure & instrument panel

1шт.

27

321-3739

DECAL

- operating instruction (OSHA)

1шт.

28

321-3845

DECAL

- hitch instructions

1шт.
