Запчасти Case IH 1070 (0544) - BUCKET SEAT (09) - CHASSIS/ATTACHMENTS

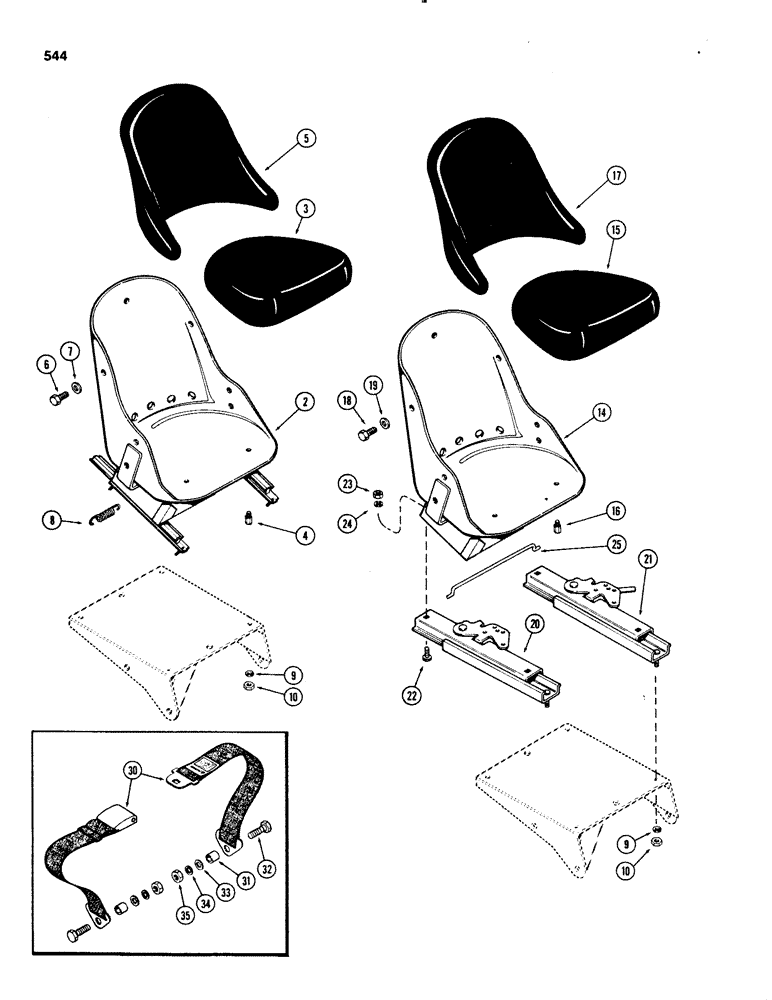

Схема запчастей Case IH 1070 - (0544) - BUCKET SEAT (09) - CHASSIS/ATTACHMENTS
25
15
31
4
19
9
8
18
20
21
6
7
17
34
10
2
16
9
24
23
10
33
22
32
5
14
3
35
30

Артикул

Название

Примечание

Количество

A61223

SEAT

ASSY - bucket (See A64851), Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

SHELL - seat (Order A61223)

1шт.

3

A42745

SEAT

CUSHION ASSY - seat bottom

1шт.

4

L32870

PIN

- cushion locating

2шт.

5

A42747

BACKREST

CUSHION ASSY - seat backrest

1шт.

6

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

7

195-104

WASHER,3/8"

- 7/16 x 1 x 5/32"

5шт.

8

A42299

SPRING

- adjuster

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

A64851

SEAT

ASSY - bucket (Replaces A61223 for repairs), Includes: Ref. 14 -25

1шт.

14

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

15

A42745

SEAT

CUSHION - seat bottom

1шт.

16

L32870

PIN

- locating, seat cushion

2шт.

17

A42747

BACKREST

CUSHION ASSY - backrest

1шт.

18

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

19

195-104

WASHER,3/8"

- 7/16 x 1 x 5/32"

5шт.

20

A64818

ADJUSTER

- RH, seat assy

1шт.

21

A64819

ADJUSTER

- LH, seat assy

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

8шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

25

A64822

ROD - lock, adjuster

1шт.

30

A66391

SAFETY BELT

SAFETY BELT (Replaces A60906)

1шт.

31

A60907

BUSHING

SPACER - anchor, seat belt

2шт.

32

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

33

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

2шт.

34

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

- 7/16" NF hex

2шт.

Выбрано товаров: 29
