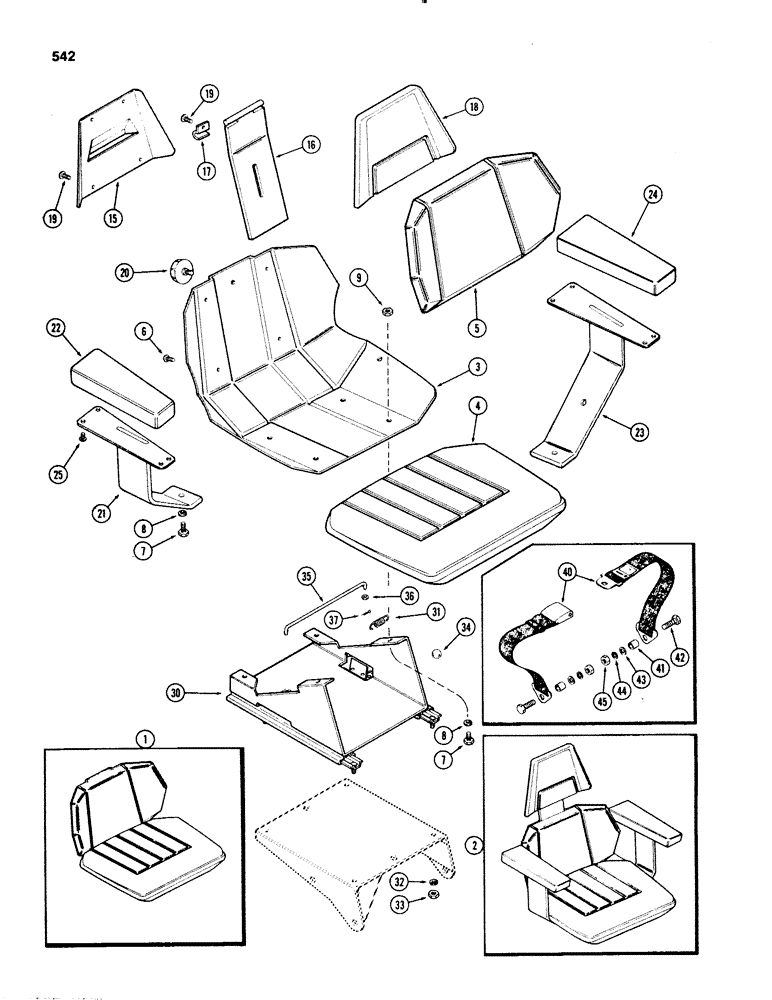

Запчасти Case IH 1070 (0542) - AGRI-KING SEAT, USED PRIOR TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

1

A60460

DIFFERENTIAL ASSY

SEAT ASSY - Agri-King (w/o arm or backrests) Includes Refs. 3 thru 9 (Order A64492)

1шт.

2

A60470

SEAT

ASSY - Agri-King (w/arm & backrests) Includes Refs. 3 thru 25

1шт.

3

A60461

FRAME

ASSY - seat

1шт.

4

A60462

CUSHION

ASSY - seat bottom

1шт.

5

A60465

CUSHION

ASSY - backrest (Order A64823)

1шт.

6

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10 x 3/8" NC pan head machine

4шт.

7

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Used w/Ref. 2 only) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

7

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" NC hex (Used w/Ref 1 only)

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

A60696

BACKREST ASSY - upper

1шт.

15

A60478

FRAME

- upper backrest cushion

1шт.

16

A60697

SPRING ASSY - backrest

1шт.

17

A60479

CLIP

- backrest pivot

2шт.

18

A60472

CUSHION

ASSY - backrest, upper

1шт.

19

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10 x 1/2" pan head, machine

6шт.

20

A60468

KNOB

ASSY - backrest, upper

1шт.

21

61092

SUPPORT ASSY - armrest, RH

1шт.

22

A61098

CUSHION

- armrest, RH

1шт.

23

A61093

SUPPORT

ASSY - armrest, LH

1шт.

24

A61099

CUSHION

- armrest, LH

1шт.

25

187-534

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - #10 x 1/2" round head, self-tapping

8шт.

30

A60450

SUPPORT

ASSY - seat, upper

1шт.

31

A42299

SPRING

- adjuster return

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

33

9635082

NUT,5/16" - 18, Gr 5

4шт.

34

A59829

KNOB

- seat adjusting, LH

1шт.

To be attached with adhesive 345-22

1шт.

35

A60898

ROD - seat lock

1шт.

36

95-3

WASHER,#12

- 1/4 x 9/16 x 3/64"

2шт.

37

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

40

A66391

SAFETY BELT

SAFETY BELT (Replaces A60906)

1шт.

41

A60907

BUSHING

SPACER - anchor, seat belt

2шт.

42

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

43

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

2шт.

44

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

45

425-117

NUT,7/16"-20, G5

- 7/16" NF hex

2шт.
