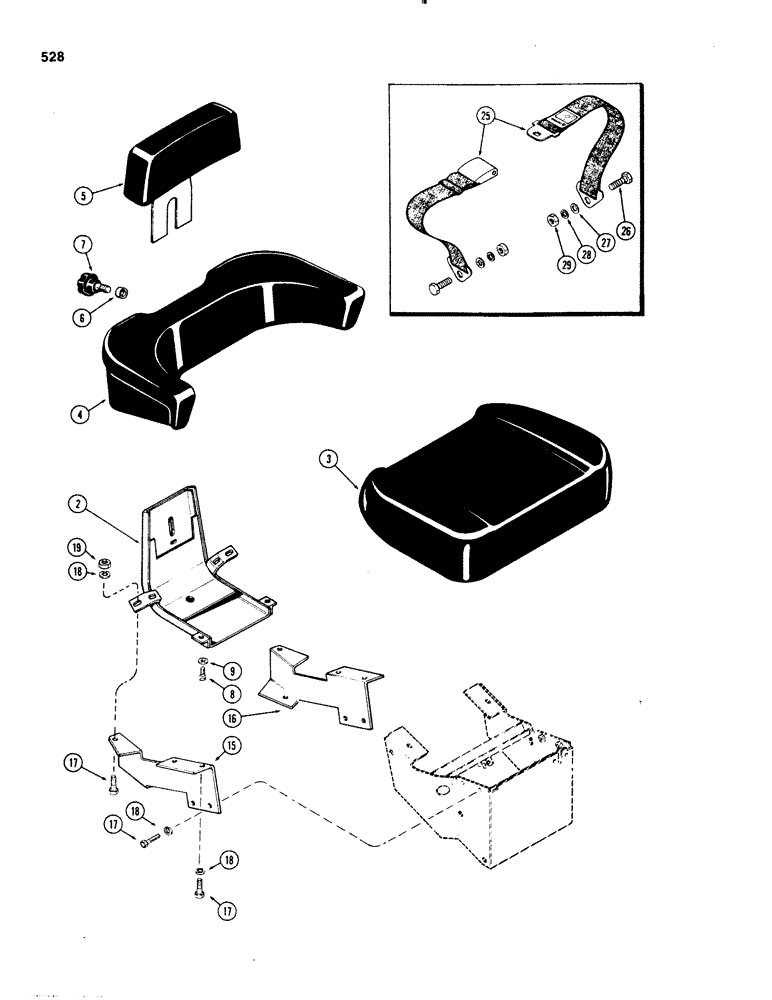

Запчасти Case IH 1070 (0528) - SERIES 30 SEAT, USED TRACTOR SERIAL NUMBERS 8736722 TO 8802110 (09) - CHASSIS/ATTACHMENTS

A66655

SEAT

ASSY - Series 30, Includes: Ref. 2 - 9

1шт.

2

A44792

SUPPORT

- seat frame

1шт.

3

A44793

CUSHION

SEAT

1шт.

4

A44791

BACKREST

- seat, lower

1шт.

5

A44790

BACKREST

- seat, upper

1шт.

6

A40600

SPACER

- backrest adjusting

1шт.

7

A40972

KNOB

- backrest adjusting

1шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

9

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

4шт.

15

A66657

BRACKET

- seat support, RH

1шт.

16

A66656

BRACKET

- seat support, LH

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

A66391

SAFETY BELT

SAFETY BELT

1шт.

26

A61946

STEP BOLT

BOLT - shoulder, seat belt

2шт.

27

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

2шт.

28

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

29

425-117

NUT,7/16"-20, G5

- 7/16" NC hex

2шт.
