Запчасти Case IH 1070 (0526) - SEAT SUSPENSION, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

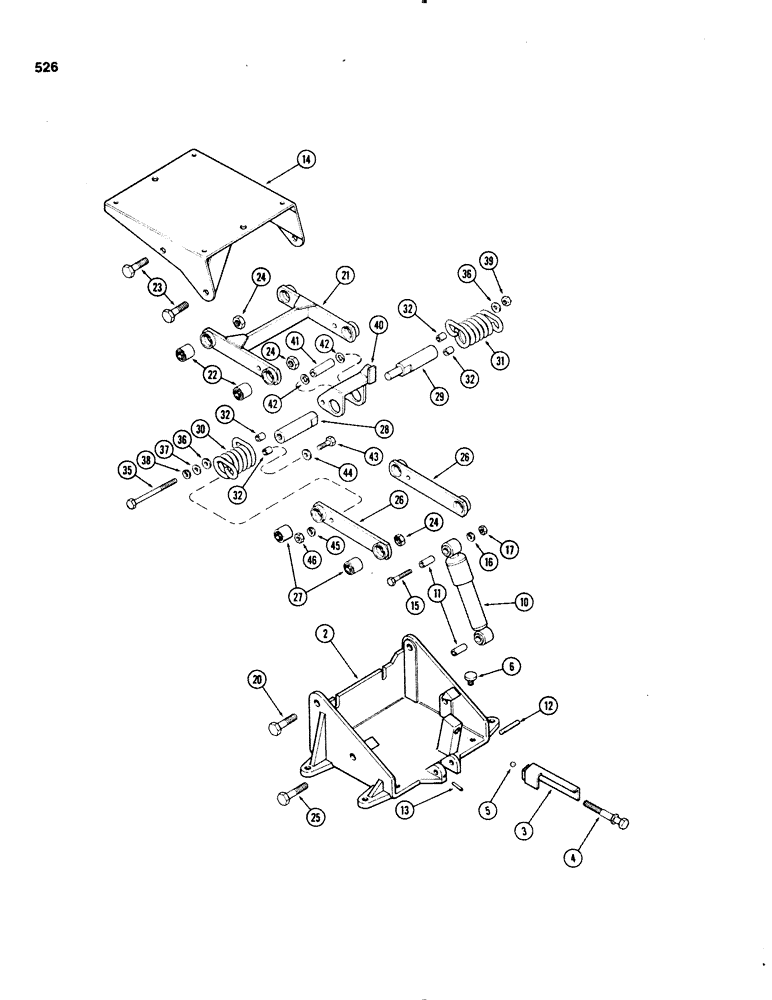

Схема запчастей Case IH 1070 - (0526) - SEAT SUSPENSION, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS
5
44
40
25
23
24
46
14
32
32
35
4
42
36
2
20
26
42
24
11
12
27
43
10
32
32
37
45
38
36
30
29
39
28
26
3
13
6
17
21
41
15
24
31
22
16

Артикул

Название

Примечание

Количество

A62670

SUSPENSION

ASSY - seat (Order A135608), Includes: Ref. 2 - 46

1шт.

2

A62671

SUPPORT

- seat (Order A135544)

1шт.

3

A60675

BRACKET ASSY - seat adjusting

1шт.

4

A60677

SCREW - seat adjusting

1шт.

5

211-12

BALL,7/16 Dia

- 7/16" diameter steel

1шт.

6

A60333

BUMPER - support arm

2шт.

10

A60342

SHOCK ABSORBER

ABSORBER - seat shock

1шт.

11

A60343

BUSHING

- Shock absorber

2шт.

12

A60344

PIN - shock absorber pivot

1шт.

13

138-64

LOCK PIN,1/8" x 1 3/8", Slotted

Pin, 1/8" x 1 3/8", Slotted

1шт.

14

A60345

PLATE ASSY - seat mounting

1шт.

15

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

20

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Includes: Ref. 21 Hex, 5/8"-11 x 2 1/4", G5

1шт.

21

A61846

ARM

ASSY - seat support, upper

1шт.

22

A60330

BUSHING,15.95mm ID x 35.56mm OD x 30.48mm L

- Arm

4шт.

23

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

24

25-1010

NUT,5/8"-11, G5

6шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

26

A60325

ARM ASSY - seat support, lower, Includes: Ref. 27

2шт.

27

A60330

BUSHING,15.95mm ID x 35.56mm OD x 30.48mm L

- Arm

2шт.

28

A60678

SPACER - seat support, RH

1шт.

29

A60679

SPACER

- seat support, LH

1шт.

30

A60684

SPRING

- torsion, RH

1шт.

31

A60685

SPRING

- torsion, LH

1шт.

32

A60335

BUSHING

- seat spring, bolt

4шт.

35

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- 3/8 x 4-1/2" NC hex

1шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 1/8"

1шт.

37

95-6

WASHER,3/8"

- lock, 3/8"

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

40

A60680

BRACKET ASSY - seat spring adjustment

1шт.

41

A60683

SPACER - seat bracket adjustment

1шт.

42

195-26

WASHER

WASHER - 7/16 x 7/8 x 3/32"

1шт.

43

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-3/4" NC hex

2шт.

44

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

Выбрано товаров: 39
