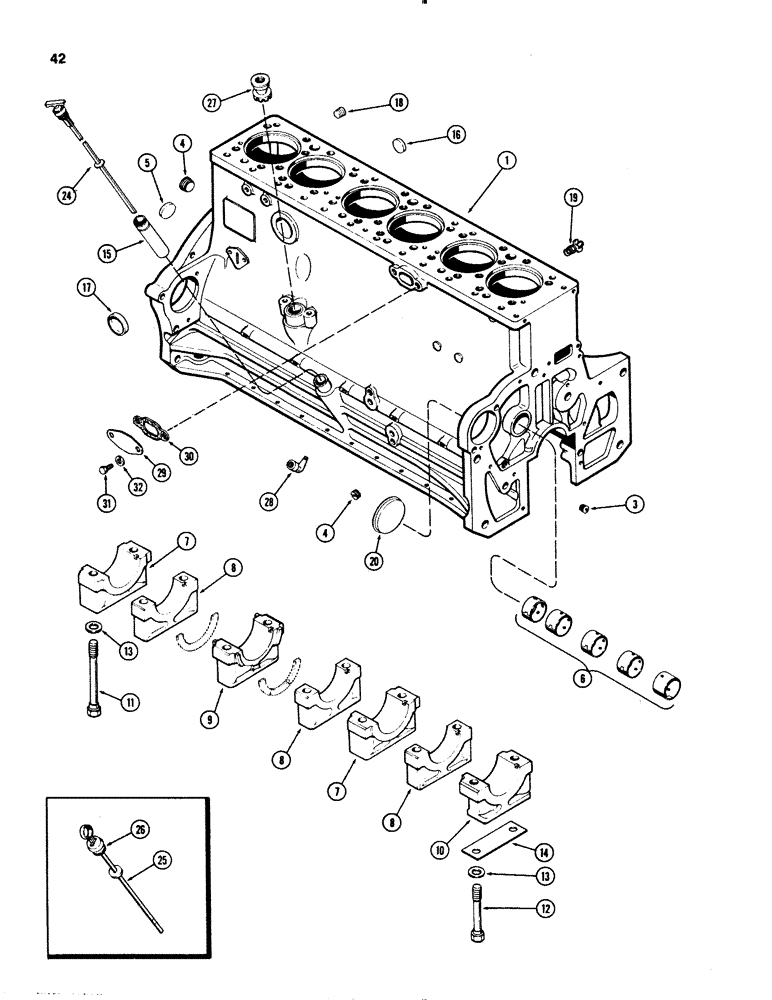

Запчасти Case IH 1070 (0042) - CYLINDER BLOCK, 451B DIESEL ENGINE, 1ST USED ENG. SERIAL NUMBER 2555990 (02) - ENGINE

A44096

CRANKCASE

BLOCK ASSY. - short (Incl. stripped block, pistons, conn. rods & brgs., cranshaft & brgs., camshaft & bushings, timing gears and push rod lifters) (Casting No. A66523), Includes: Ref. 1 - 24

1шт.

1

A44097

CRANKCASE

BLOCK ASSY. - stripped (Casting No. A66523), Includes: Ref. 3 - 20

1шт.

3

221-1843

PLUG

- 3/8" PT hex. socket head

3шт.

4

221-1849

PLUG

- 1/8" PT, hex socket head

6шт.

5

A24361

PLUG

- camshaft hole, 2-3/8" cup

1шт.

6

A23544

BUSHING

KIT - camshaft

1шт.

7

A58783

BEARING CAP

CAP - main bearing, wide

2шт.

8

A58784

BEARING CAP

CAP - main bearing, narrow

3шт.

9

A58785

BEARING CAP

CAP - main bearing, thrust

1шт.

10

A58782

CAP

- main bearing, front

1шт.

11

A66948

STEP BOLT

BOLT - 5/8 x 5" NC hex special

12шт.

12

A66949

STEP BOLT

BOLT - 5/8 x 7-5/16" NC hex special

2шт.

12

A66949

STEP BOLT

BOLT - 5/8 x 7-5/16" NC hex special

2шт.

13

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 1/8"

14шт.

14

A58849

SHIM - oil pump to front brg. cap (.005")

1шт.

15

A34540

TUBE

SOCKET - oil filler

1шт.

16

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup

3шт.

17

A58569

PLUG,Cup, 2", Stainless

- 2" cup

1шт.

18

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4" hex socket head

1шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

41-1052

PLUG,Cup, 3 1/4"

- 3-1/4" cup

1шт.

24

A138330

DIPSTICK

- oil level (Replaces A34541) (with out O-rings)

1шт.

25

A34541

DIPSTICK

- oil level (w/O-rings) (Order A138330)

1шт.

26

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1 x 1/8"

2шт.

27

A34266

DRIVE

ASSY. - tachometer

1шт.

28

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

- 3/16" tube x 1/8" PT x 90 degree

1шт.

29

A58851

PLATE

COVER - water opening, oil cooler

1шт.

30

A58670

GASKET

- oil cooler water opening cover

1шт.

31

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.
