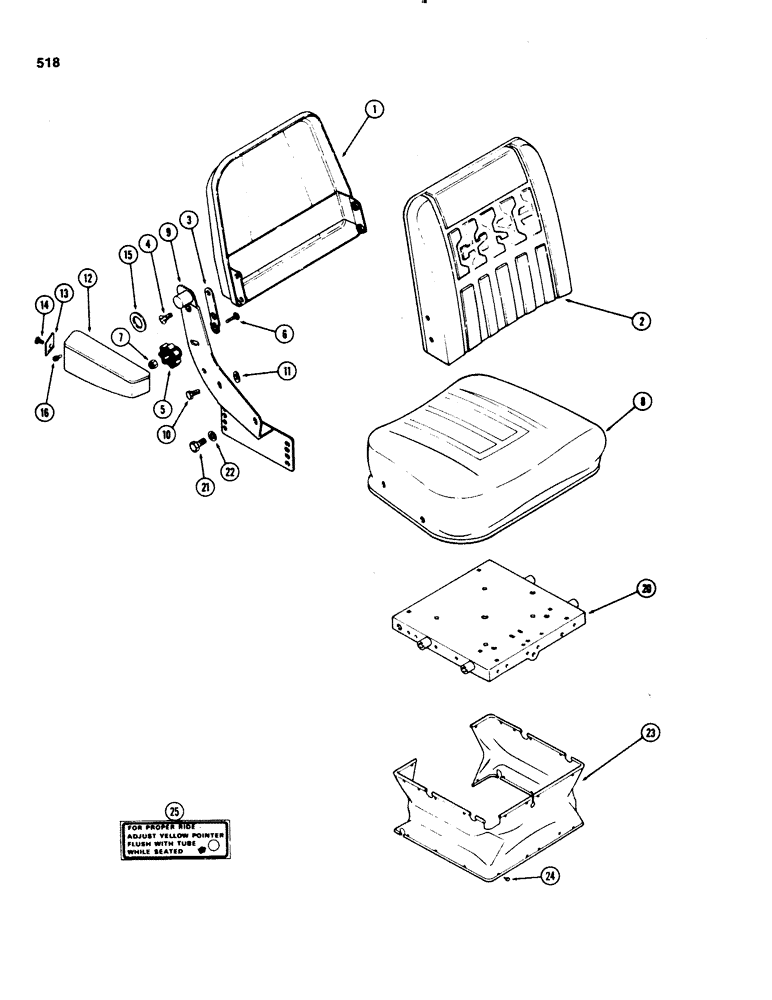

Запчасти Case IH 1070 (0518) - SEAT, VINYL, WITHOUT SWIVEL, 1ST USED TRACTOR SERIAL NUMBER 8802110 (09) - CHASSIS/ATTACHMENTS

A139547

SEAT

& SUSPENSION ASSY - vinyl w/o swivel, Includes: Ref. 1 - 45

1шт.

A45571

CUSHION

BACKREST ASSY - cushion, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - backrest

1шт.

2

NSS

NOT SOLD SEPARAT

PAD & COVER - backrest

1шт.

3

NSS

NOT SOLD SEPARAT

LINK - tilt, backrest

2шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- 3/8 x 1" NC flat head, Phillips

2шт.

5

A45487

BUTTON

KNOB - tilt, backrest

2шт.

6

A45527

CARRIAGE BOLT

- 3/8 x 1-1/2" NC round head carriage

2шт.

7

131-206

NUT,3/8"-16

NUT - 3/8" NC hex jam

2шт.

8

A45570

CUSHION

SEAT CUSHION ASSY

1шт.

9

A45579

BRACKET

BACKREST ASSY - RH side

1шт.

9

A45580

BRACKET

ASSY - LH side

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2 x 1-1/2" NC hex

2шт.

11

A45519

WASHER

SPACER - cushion

12шт.

12

A45489

ARMREST

ASSY - RH

1шт.

12

A45488

ARMREST

ASSY - LH

1шт.

13

A45584

COVER

PLATE - RH armrest

1шт.

13

A45583

PLATE

COVER PLATE - LH armrest

1шт.

14

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - #10 x 5/8" NC self-tapping

2шт.

15

192-123

WASHER

- wave, 1-1/18" ID x 1-5/8" OD

2шт.

16

178-17

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - #10 x 1/2" NC hex socket head set

2шт.

20

NSS

NOT SOLD SEPARAT

PLATE ASSY - upper housing

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

23

A45576

BOOT

ASSY - suspension

1шт.

24

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap-button, 1/2"

24шт.

25

321-3721

DECAL

- instruction

1шт.
