(0514) - SEAT, CLOTH, WITH SWIVEL, 1ST USED TRACTOR SERIAL NUMBER 8802110

Запчасти Case IH 1070 (0514) - SEAT, CLOTH, WITH SWIVEL, 1ST USED TRACTOR SERIAL NUMBER 8802110 (09) - CHASSIS/ATTACHMENTS

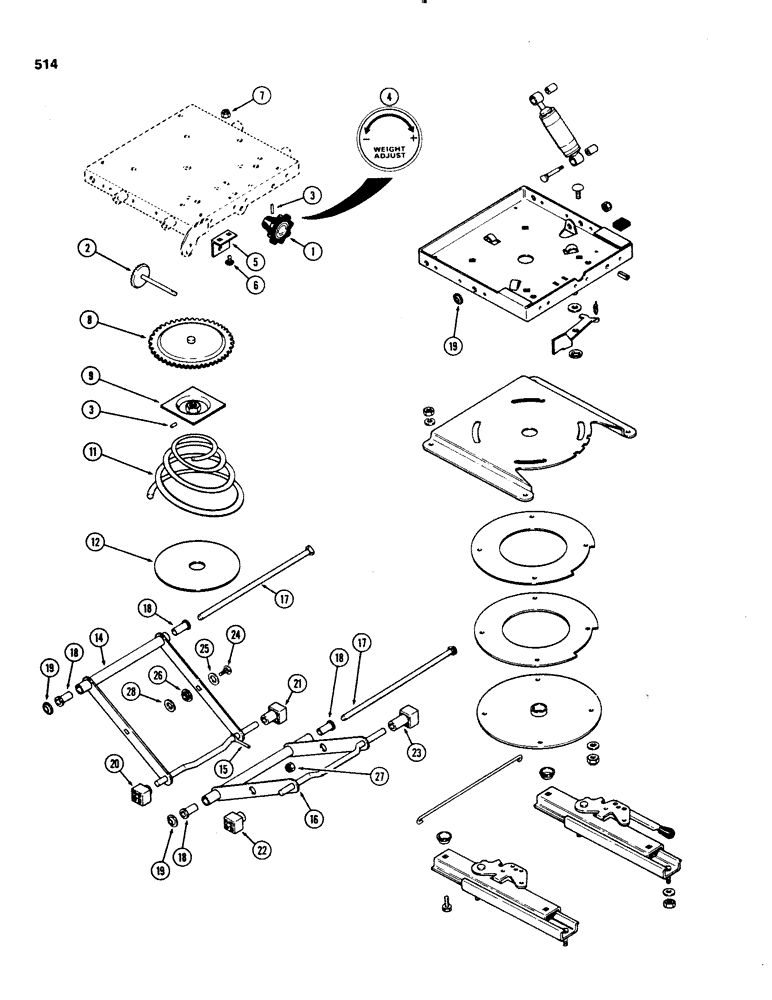

Схема запчастей Case IH 1070 - (0514) - SEAT, CLOTH, WITH SWIVEL, 1ST USED TRACTOR SERIAL NUMBER 8802110 (09) - CHASSIS/ATTACHMENTS
21
11
5
26
19
19
18
18
12
24
3
20
7
6
3
18
16
4
17
15
9
23
2
19
17
22
27
1
28
14
8
25
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A139350

SEAT

& SUSPENSION ASSY - cloth w/20" swivel

1шт.

1

A45508

BUTTON

KNOB - weight adjustment

1шт.

2

A45513

GEAR

& SHAFT ASSY

1шт.

3

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

4

A45511

DECAL

- weight adjustment

1шт.

5

NSS

NOT SOLD SEPARAT

BRACKET - shaft

1шт.

6

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4 x 1/2" N.C. rd. hd. sq. neck

2шт.

7

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT - 1/4" N.C. hex. jam

2шт.

8

A45505

GEAR

& SHAFT ASSY

1шт.

9

A45504

SPRING WASHER

- spring

1шт.

11

A45497

SPRING

- conical

1шт.

12

NSS

NOT SOLD SEPARAT

PAD - spring

1шт.

14

NSS

NOT SOLD SEPARAT

ARM ASSY. - outer

1шт.

15

A47070

INDICATOR

- Height adjustment

1шт.

16

NSS

NOT SOLD SEPARAT

ARM ASSY. - inner

1шт.

17

A45057

SHAFT

- bearing (Replaces A45506)

2шт.

18

A45496

TUBE

- bearing

4шт.

19

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

4шт.

20

A45512

BLOCK

- slider, 1-3/16"

1шт.

21

A45516

BLOCK

- slider, 2-3/16"

1шт.

22

A45515

BLOCK

- slider, 1-9/16"

1шт.

23

CASA45517

BLOCK

- slider, 2-9/16"

1шт.

24

A45055

BOLT

- 3/8 x 1/N.C. flat hd. Phillips

2шт.

25

A45110

WASHER

- spacer

2шт.

26

A45498

BUSHING

BEARING - cross pivot

2шт.

27

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. jam

2шт.

28

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.
