(0510) - SEAT CONVERSION ATTACHMENT, NON-SWIVEL TO DELUXE SWIVEL

Запчасти Case IH 1070 (0510) - SEAT CONVERSION ATTACHMENT, NON-SWIVEL TO DELUXE SWIVEL (09) - CHASSIS/ATTACHMENTS

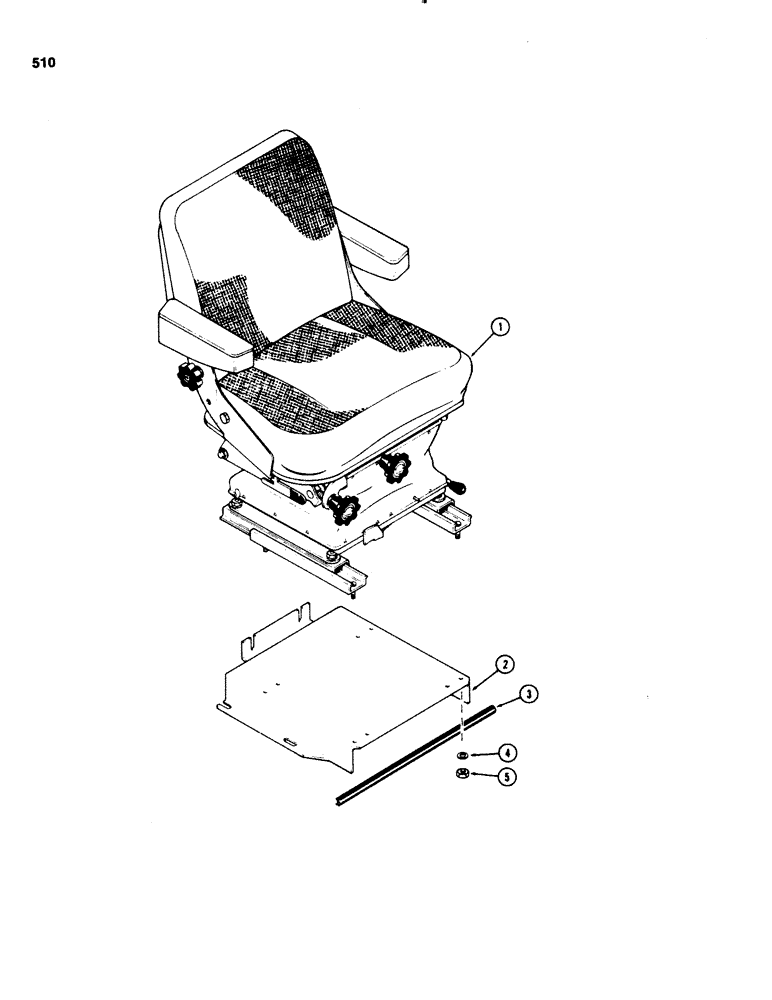

Схема запчастей Case IH 1070 - (0510) - SEAT CONVERSION ATTACHMENT, NON-SWIVEL TO DELUXE SWIVEL (09) - CHASSIS/ATTACHMENTS
3
1
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A67202

ATTACHMENT

- seat conversion (Machine Item), Includes: Ref. 1 - 5

1шт.

1

A139350

SEAT

ASSY - cloth w/swivel (See Fig. 512-516)

1шт.

2

A141329

ADAPTER

- seat to support plate

1шт.

3

A64865

SEAT

TRIM - seat adapter edge

1шт.

4

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 5/64"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.
