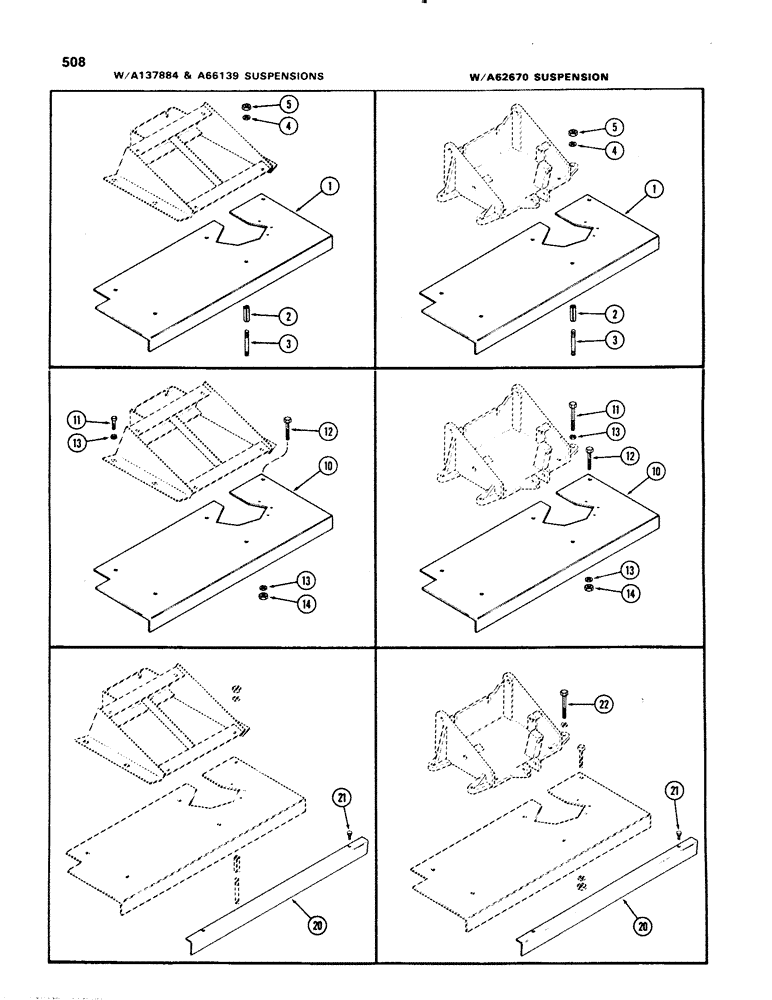

Запчасти Case IH 1070 (0508) - SEAT SUSPENSION SUPPORTS, WITHOUT CAB, USED TRACTOR SERIAL NUMBER 8727601 TO 8802110 (09) - CHASSIS/ATTACHMENTS

1

A62672

PLATE

- seat suspension support

1шт.

2

A65472

SPACER

- plate

5шт.

3

A137836

STUD

- 3/8" NC x 4" (Replaces A66428)

5шт.

4

195-104

WASHER,3/8"

- 7/16 x 1 x 3/32"

5шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

10

A62673

SUPPORT

PLATE - seat suspension support w/spacers (Order 1-A62672, 5-A65472, 5-A137836, 5-195-104 & 5-129-103), used prior to trac. serial no. 8727601

1шт.

11

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Used prior to tractor S/N 8727601 Hex, 3/8"-16 x 3", G5

4шт.

12

113-294

BOLT - 3/8 x 2-3/4" NC hex, used prior to trac. serial no. 8727601

1шт.

13

92-6

LOCK WASHER,3/8"

used prior to trac ser no. 8727601 3/8"

5шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, used prior to trac. serial no. 8727601

1шт.

20

A62461

FLOOR

ANGLE - floormat retaining, with cab

1шт.

21

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4 x 3/4" hex., self tapping, with cab

2шт.

22

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Used prior to tractor S/N 8727601, w/ cab Hex, 3/8"-16 x 3 1/4", G5

4шт.
