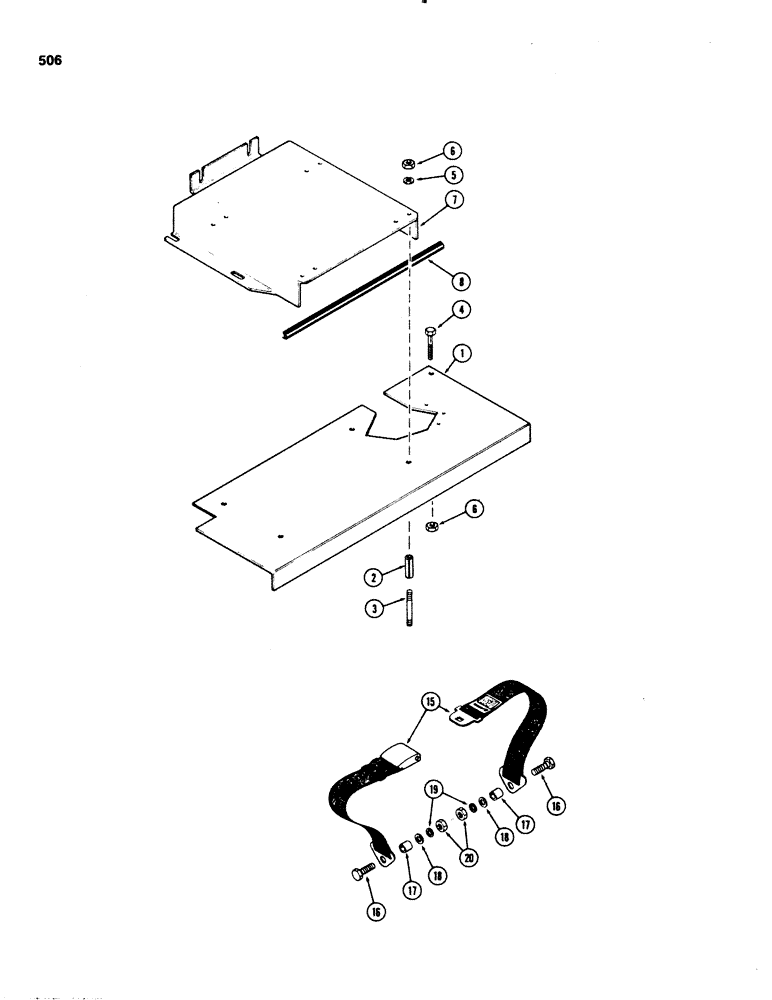

Запчасти Case IH 1070 (0506) - SEAT SUPPORT PLATE, 1ST USED TRACTOR SERIAL NUMBER 8802110 (09) - CHASSIS/ATTACHMENTS

1

A62672

PLATE

- seat suspension support

1шт.

2

A65472

SPACER

- plate

5шт.

3

A137836

STUD

- 3/8" NC x 4" (Replaces A66428)

4шт.

4

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" NC hex

1шт.

5

195-104

WASHER,3/8"

- 7/16 x 1 x 3/32"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

7

A141329

ADAPTER

-, Serial Range: seat-support

1шт.

8

A64865

SEAT

TRIM - seat adapter edge

1шт.

15

A66391

SAFETY BELT

SAFETY BELT

1шт.

16

A61946

STEP BOLT

BOLT - shoulder, seat belt, safety

2шт.

17

A60907

BUSHING

SPACER - anchor bolt, safety seat belt

2шт.

18

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16", safety seat belt

2шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt 7/16"

2шт.

20

425-117

NUT,7/16"-20, G5

- 7/16" NC hex, safety seat belt

2шт.
