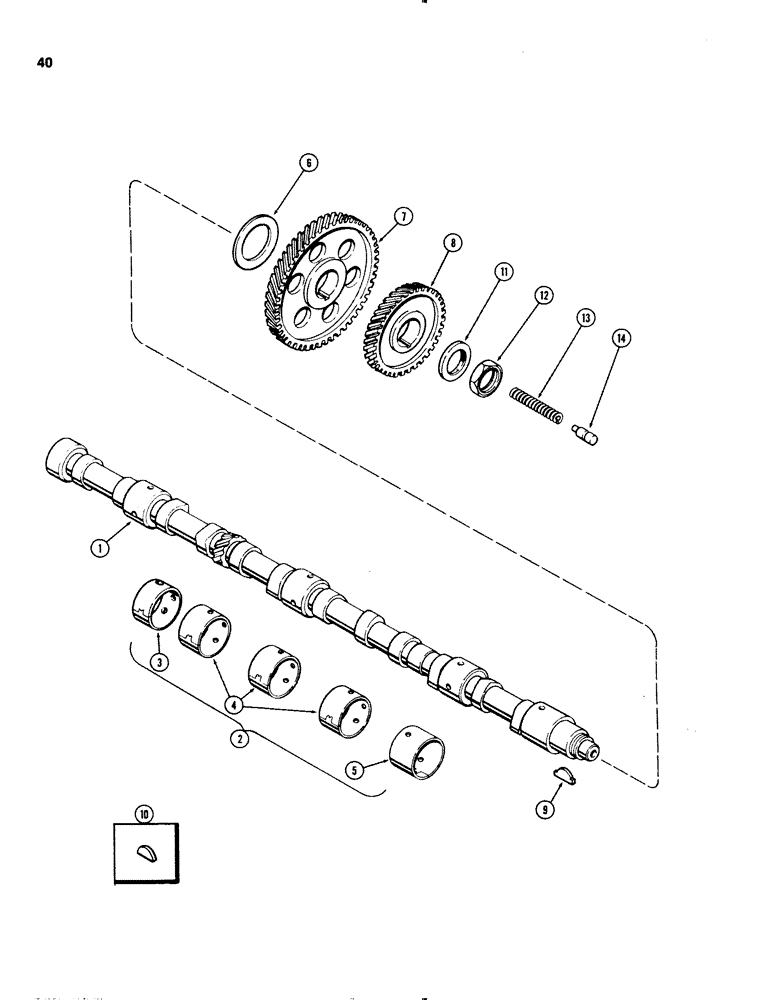

Запчасти Case IH 1070 (0040) - CAMSHAFT, 451B DIESEL ENGINE (02) - ENGINE

1

A66743

CAMSHAFT

- (1st used eng. ser. no. 2323279) (Replaces A62734)

1шт.

1

A58591

CAMSHAFT

- (Used prior to eng. ser. no. 2323279) (Order A66743 & 126-227)

1шт.

2

A23544

BUSHING

KIT - camshaft (Set of 5), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front 1-21/32" wide)

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16" (Used w/A66743 camshaft)

1шт.

10

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Used with A58591 camshaft #C, 5/16" x 1 1/8"

1шт.

11

A31038

THRUST WASHER

- camshaft nut (Replaces A58594)

1шт.

12

A58595

NUT

- camshaft

1шт.

13

P0027853A

LARGE PIN

- plunger, camshaft thrust

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
