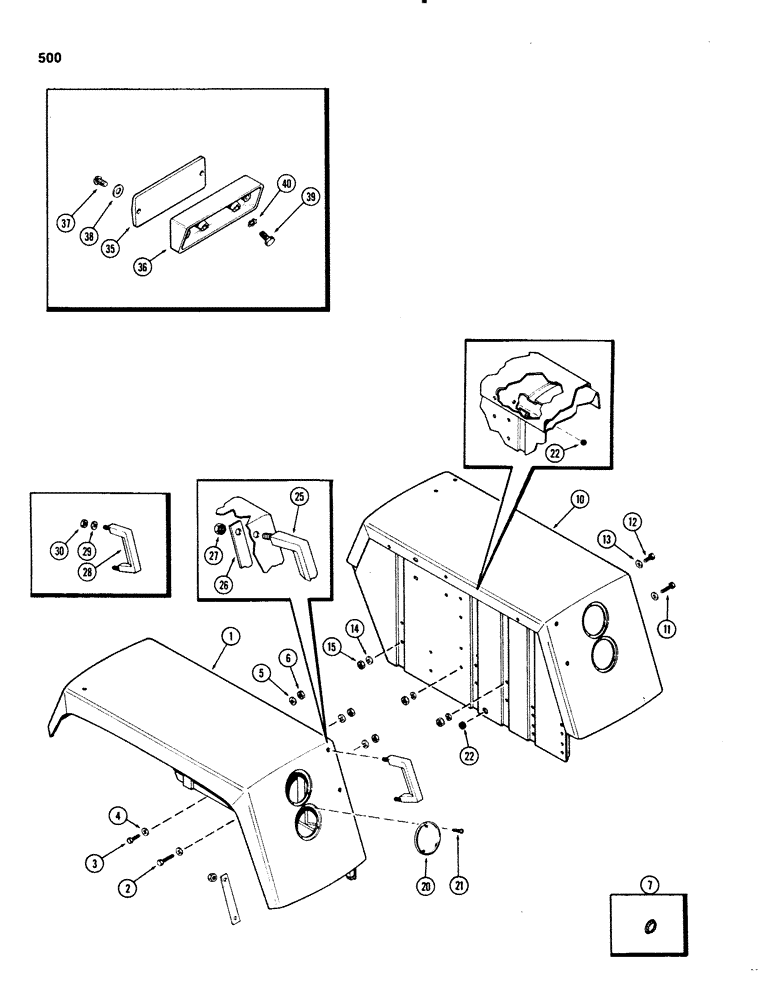

Запчасти Case IH 1070 (0500) - FENDERS, 24 INCH FENDER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A65358
FENDER
ASSY. - 24", R.H. (Replaces A62304 & A64886)
1шт.
2
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
5шт.
3
113-221
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
1шт.
4
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32"
6шт.
5
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
6
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
6шт.
7
353-405
PLUG,Dome, .562" hole, Nylon
- 17/32" button (Used w/A65358 fender)
1шт.
10
A64887
FENDER
ASSY. - 24", L.H. (Replaces A62309)
1шт.
11
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
3шт.
12
113-213
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
12
113-221
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
1шт.
13
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32"
6шт.
14
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
15
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
6шт.
20
A59330
COVER
- cultivator light opening (Order A66660)
1шт.
21
187-1050
SCREW
- #10 x 1/2" N.C. tapping
3шт.
22
A59722
GROMMET
- wire harness
2шт.
A65434
KIT
ATTACHMENT - fender mounted handles (w/o cab) (Mach. Item)
1шт.
25
A60530
HANDLE
- R.H. & L.H., without cab
2шт.
26
A59338
PLATE
- handle mounting, without cab
1шт.
27
230-4216
LOCK NUT,3/8"-16, GA
NUT - 3/8" N.C. hex., lock, handles without cab
4шт.
28
A60530
HANDLE
- cab mountingwith cab
1шт.
29
192-46
LOCK WASHER,3/8"
WASHER, LOCK, , w/Cab 3/8"
2шт.
35
A62415
REFLECTOR
- fender, red
2шт.
36
A62416
BRACKET
- reflector
2шт.
37
187-1058
SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"
SCREW - #10 x 5/8" rd. hd., self-tapping, reflector
4шт.
38
195-512
WASHER,#10
- 7/32 x 7/16 x 1/16", reflector
4шт.
39
187-1036
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"
SCREW - 1/4 x 1/2" N.C. hex., self-tapping, reflector
4шт.
40
193-73
LOCK WASHER,Ext-Int Tooth, 1/4"
WASHER - shakeproof, 1/4" int./ext, reflector
4шт.
Выбрано товаров: 30
