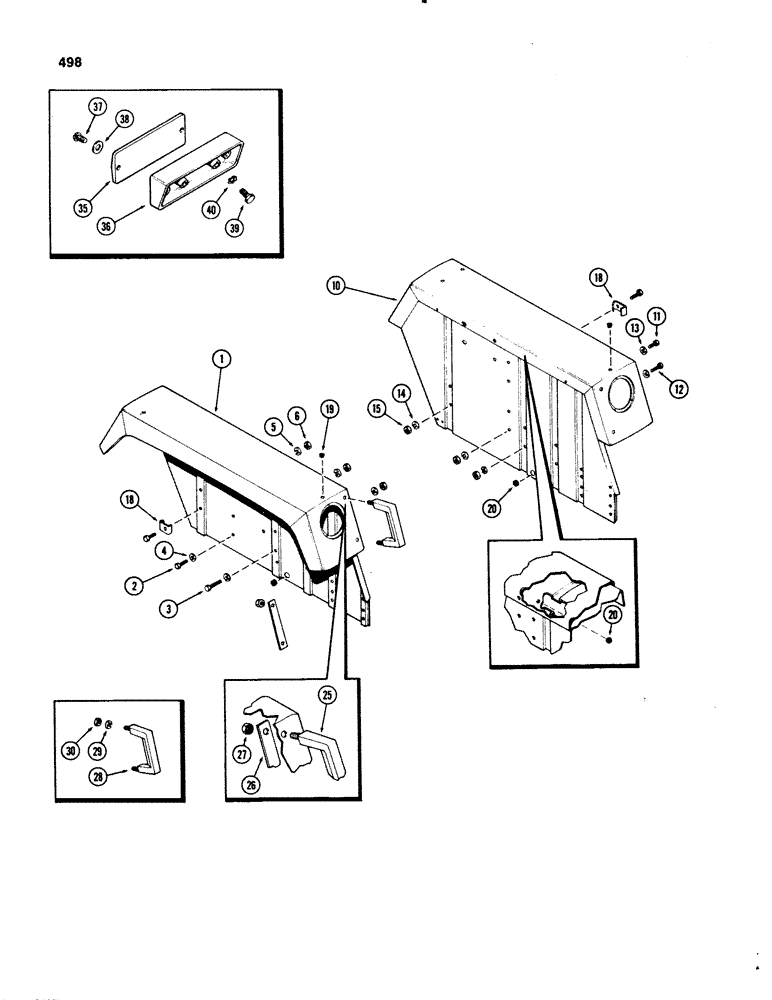

Запчасти Case IH 1070 (0498) - FENDERS, 12 INCH FENDER (09) - CHASSIS/ATTACHMENTS

1

A64878

FENDER

ASSY - 12", RH (Replaces A62296)

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

9628503

NUT,3/8"-16, G5

6шт.

10

A64879

FENDER

ASSY - 12", LH (Replaces A62297)

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

13-262

BOLT - 3/8 x 1-1/8" NC hex

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

9628503

NUT,3/8"-16, G5

4шт.

18

A59318

BRACKET

- fender side sheet mounting

4шт.

19

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16" hole (nylon)

1шт.

20

A59722

GROMMET

- wire harness

2шт.

A65434

KIT

NUT - 5/16" NC hex, lock, Includes: Ref. 25 - 26, Includes: Ref. 25 - 27, handles without cab

1шт.

25

A60530

HANDLE

- RH & LH, handles without cab

2шт.

26

A59338

PLATE

- handle mounting, without cab

1шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" NC hex, lock, handles without cab

4шт.

28

A60530

HANDLE

- cab mounting, without

1шт.

29

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , w/o Cab 3/8"

2шт.

30

129-770

NUT,3/8"-16, G5

- 3/8" NC hex, without cab

2шт.

35

A62415

REFLECTOR

- fender, red

2шт.

36

A62416

BRACKET

- reflector

2шт.

37

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" round head self-tapping, reflector

4шт.

38

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", reflector

4шт.

39

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" NC hex, self-tapping, reflector

4шт.

40

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" internal/external, reflector

4шт.
