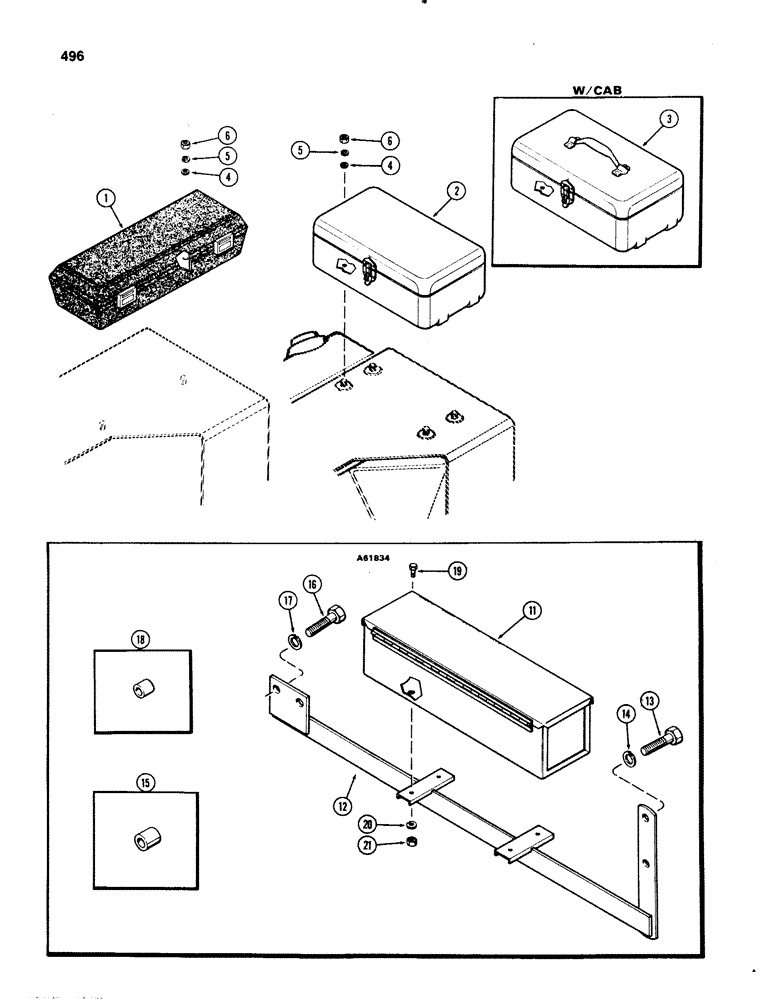

Запчасти Case IH 1070 (0496) - TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

A66152

BOX

- tool (plastic) (Used w/ or w/o cab) (Replaces A61174 and A61788 tool boxes)

1шт.

2

A61174

BOX

- tool (metal) (mounted on fuel tank cover) (w/o cab) (Order A66152)

1шт.

3

A61788

BOX, TOOL

BOX - tool (metal) (w/cab) (Order A66152)

1шт.

4

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" NC hex, jam, Gripco

4шт.

A61834

BOX, TOOL

ATTACHMENT - tool box (Machine Item), Includes: Ref. 11 - 21

1шт.

11

A59844

BOX, TOOL

BOX ASSY - tool, attachment

1шт.

12

A61832

SUPPORT ASSY - tool box, attachment

1шт.

13

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- 3/4 x 3-3/4" NC hex, tool box attachment

2шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Tool box attachment 3/4"

2шт.

15

A59851

SPACER - (Used w/o weight wrapper), tool box attachment

1шт.

16

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Tool box attachment Hex, 5/8"-11 x 3", G5

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Tool box attachment 5/8"

2шт.

18

A60897

TUBE - step mounting spacer, tool box attachment

2шт.

19

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Tool box attachment Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

20

92-5

LOCK WASHER,5/16"

tool box attachment 5/16"

4шт.

21

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" NC hex, lock, tool box attachment

4шт.
