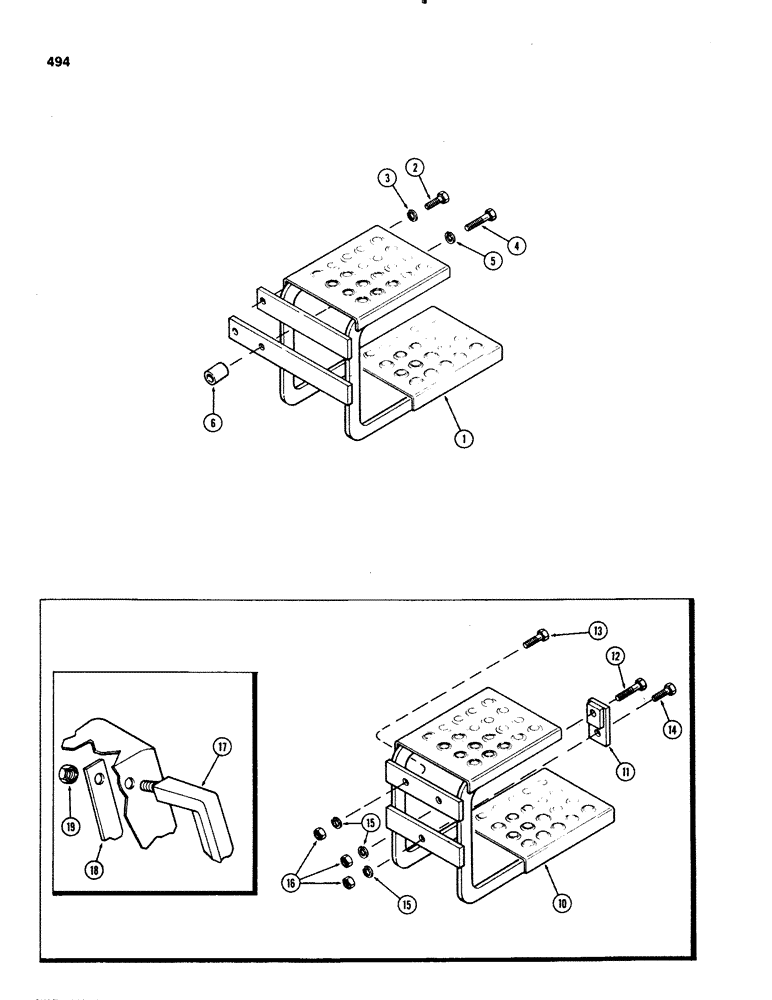

Запчасти Case IH 1070 (0494) - STEPS, WITHOUT CAB, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

1

A59340

STEP ASSY - RH (LH shown)

1шт.

1

A59341

STEP ASSY - LH

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

3

92-8

LOCK WASHER,1/2"

1шт.

4

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8 x 3-1/2" NC hex

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

A60897

TUBE - step mounting spacer

2шт.

A61843

STEP ATTACHMENT - RH or LH (Machine Item), Includes: Ref. 10 - 19, mounting

1шт.

10

A61582

STEP - RH or LH, mounting attachment

1шт.

11

A61585

ADAPTER - mounting step, attachment

1шт.

12

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Mounting attachment Hex, 1/2"-13 x 2", G5

2шт.

13

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex, mounting attachmentT

1шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex, mounting attachment

1шт.

15

92-8

LOCK WASHER,1/2"

mounting step attachment 1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- 1/2" NC hex, mounting attachment

4шт.

17

A60530

HANDLE

- hood & fender, mounting attachment

2шт.

18

A59338

PLATE

- handle fender, mounting attachment

1шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" NC hex, mounting attachment

4шт.
