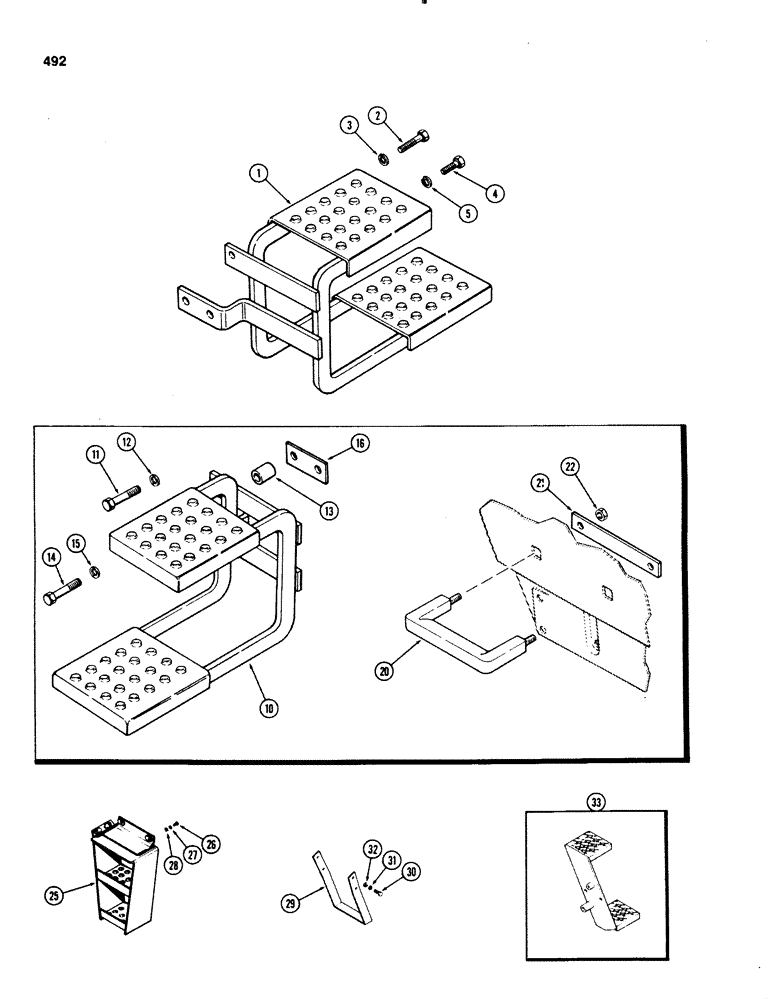

Запчасти Case IH 1070 (0492) - STEPS, WITHOUT CAB, 1ST USED TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

1

A64732

STEP ASSY - RH (LH shown)

1шт.

1

A64733

STEP ASSY - LH

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

3

92-8

LOCK WASHER,1/2"

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

A64745

STEP ATTACHMENT - RH (Machine Item) (Staring trac ser no. 8693001 w/o cab and w/or w/o side rails) (Prior to trac ser no. 8693001 only on tractor w/o cab and w/o side rails) MOUNTING STEP ATTACHMENT, Includes: Ref. 10 - 22

1шт.

10

A64732

STEP - RH MOUNTING ATTACHMENT

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Mounting step attachment Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

11

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Used w/spacer), mounting step attachment Hex, 1/2"-13 x 3 1/4", G5

1шт.

12

92-8

LOCK WASHER,1/2"

mounting step attachment 1/2"

1шт.

13

A64735

SPACER - upper, step, mounting attachment

1шт.

14

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Mounting step attachment Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

14

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(used w/spacer), mounting step attachment Hex, 5/8"-11 x 3 1/4", G5

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Mounting step attachment 5/8"

2шт.

16

A64699

SPACER - lower, step, mounting attachment

1шт.

20

A60530

HANDLE

- mounting, step attachment

2шт.

21

A59338

PLATE

- handle to fender mounting, step attachment

1шт.

22

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" NC hex, mounting step attachment

4шт.

25

A61143

STEP

ASSY - cab mounting, with cab

1шт.

26

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" NC hex, with cab

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , w/Cab 3/8"

4шт.

28

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", with cab

4шт.

A64599

ATTACHMENT - step extension (Machine Item), Includes: Ref. 29 - 32, with cab

1шт.

29

NSS

NOT SOLD SEPARAT

STEP - extension, with cab

1шт.

30

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

w/ Cab Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , w/Cab 1/2"

4шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

4шт.

A43094

CLUTCH

ATTACHMENT - step, servicing, Includes: Ref. 33, with cab

1шт.

33

A32659

STEP

- servicing, with cab

1шт.
