(0488) - SEAL, REAR HOOD AND FIREWALL

Запчасти Case IH 1070 (0488) - SEAL, REAR HOOD AND FIREWALL (09) - CHASSIS/ATTACHMENTS

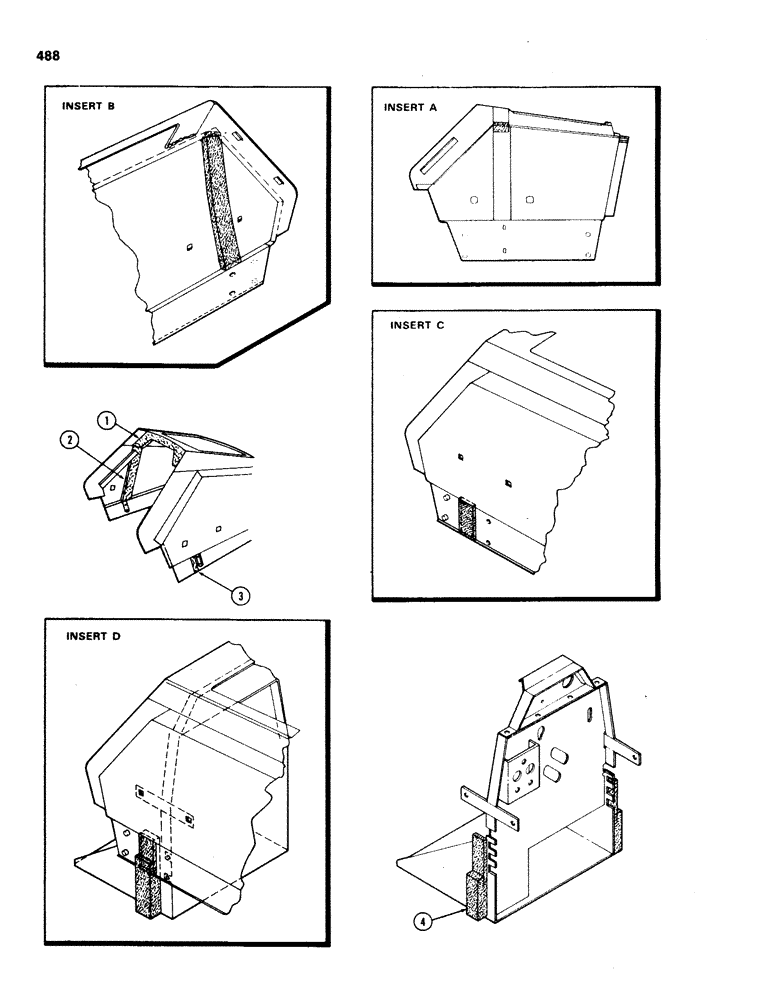

Схема запчастей Case IH 1070 - (0488) - SEAL, REAR HOOD AND FIREWALL (09) - CHASSIS/ATTACHMENTS
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A66417

BAFFLE

- firewall, top (See Inset A)

1шт.

To be attached with adhesive 345-22

1шт.

2

A66419

BAFFLE

FOAM - hood, rear (See Inset B)

2шт.

To be attached with adhesive 345-22

1шт.

3

A66420

FOAM

- rear hood (See Inset C)

2шт.

To be attached with adhesive 345-22

1шт.

4

A66416

BAFFLE

- firewall, lower (See Inset D)

2шт.

To be attached with adhesive 345-22

1шт.
