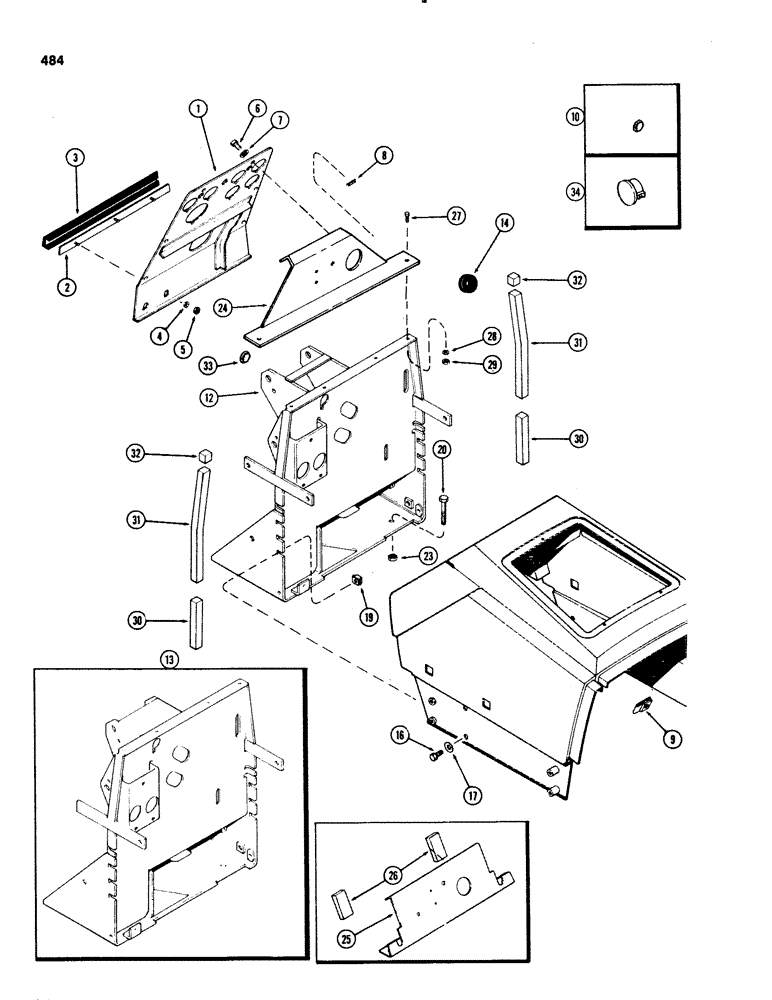

Запчасти Case IH 1070 (0484) - INSTRUMENT PANEL, 1ST USED TRACTOR SERIAL NUMBER 881623 (09) - CHASSIS/ATTACHMENTS

1

A145839

PANEL - instrument (silk screened with ether start button on RH side) (1st used ser no. 8818623)

1шт.

1

A143384

PANEL

- instrument (silk screened with ether start button on LH side) (1st used trac ser no. 8818623)

1шт.

1

A65991

PANEL ASSY.

PANEL ASSY - instrument (Replaces A64900) (With Decals) (Used trac ser nos. 8693001 to 8801288) (Order A145839)

1шт.

See Fig. 546 for decal kit, To be attached with adhesive 345-22

1шт.

2

A60957

PLATE ASSY - molding (Used prior to trac ser no. 8818623)

1шт.

3

A63895

MOLDING

- instrument panel bumper (Used prior to trac ser no. 8818623)

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

5

25-104

NUT,1/4"-20, G5

3шт.

6

A60266

SCREW,Hex, 0.19"-24 x 5/8", Brass, BLK

- brass, #10-24 x 5/8" hex

6шт.

7

193-93

LOCK WASHER,#10

WASHER - Shakeproof, internal #10

6шт.

8

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- #10-24 Tinnerman

6шт.

9

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

RETAINER - #10-25 J Type

2шт.

10

353-411

PLUG,Dome, 1.000" hole, Nylon

Ether start switch hole Dome, 1.000" hole, Nylon

1шт.

12

A66298

FIREWALL ASSY - (1st used trac ser no. 8726959)

1шт.

13

A64542

FIREWALL ASSY - (Used prior to trac ser no. 8726959) (Order A66298)

1шт.

14

A59719

GROMMET

- firewall (1-1/8 x 2-1/2 x 1/2")

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Firewall Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

17

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", firewall

4шт.

19

131-608

NUT

- cage, 3/8" NC, firewall

4шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Firewall Hex, 1/2"-13 x 2", G5

2шт.

23

25-108

NUT,1/2"-13, G5

- 1/2" NC hex, firewall

2шт.

24

A66412

BAFFLE - steering wheel (Replaces A64546), firewall

1шт.

25

A64546

BAFFLE

ASSY - steering wheel (Order A66412, 1-A66412 & 1-A66421), Includes: Ref. 26, firewall

1шт.

26

A59805

FILLER

BAFFLE - air, firewall

2шт.

For rear hood and firewall seals see figure 488

1шт.

27

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Firewall Hex, 1/4"-20 x 1", G5

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Firewall 1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

Firewall 1/4"-20, G5

4шт.

30

A60777

FOAM

BAFFLE - low, firewall side, firewall

2шт.

For rear hood and firewall seals see figure 488

1шт.

31

A60774

BAFFLE - center, firewall side, firewall

2шт.

For rear hood and firewall seals see figure 488

1шт.

32

A60775

BAFFLE - upper, firewall side, firewall

2шт.

For rear hood and firewall seals see figure 488

1шт.

33

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2" dia, firewall

1шт.

34

353-415

PLUG,Dome, 1.500" hole, Nylon

- Heyco, 1-1/2" diameter, firewall

1шт.
