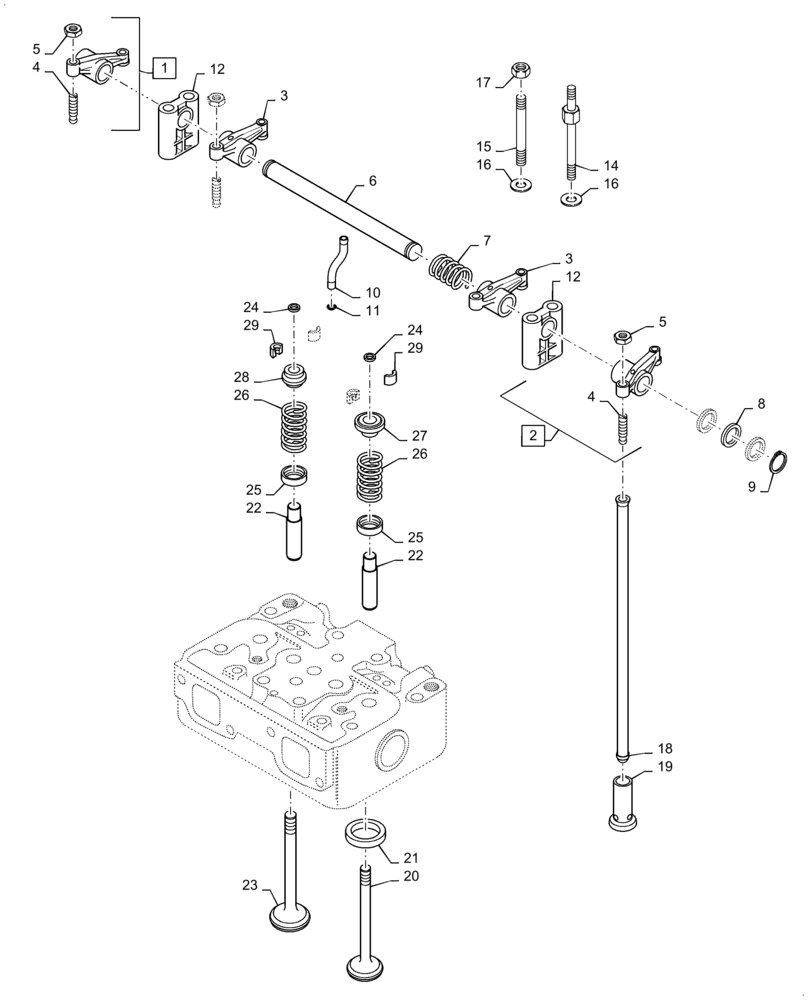

Запчасти Case IH 1070 (0038) - VALVE MECHANISM, (451B) DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

rocker, exhaust valve, 1st, 3rd and 5th cylinders

3шт.

2

A148138

ARM

rocker, exhaust valve, 2nd, 4th and 6th cylinders

3шт.

3

A148136

ARM

rocker, intake valve

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW rocker arm

12шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

3/8" N.F. hex. jam

12шт.

6

A57532

SHAFT

ASSY. rocker arm

3шт.

7

A27877

SPRING

rocker arm shaft

3шт.

8

A27878

WASHER

rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

rocker arm shaft oil

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

rocker arm shaft oil tube

3шт.

12

A61128

BRACKET

rocker arm shaft, 1st used engine serial no. 2307267

6шт.

14

A67121

STUD

rocker arm support, 7/16" N.C. x 5-7/8"

6шт.

15

A58659

STUD

rocker arm support, 7/16" N.C. x 4-5/16"

6шт.

16

195-29

WASHER,7/16"

15/32 x 59/64 x 1/16"

12шт.

17

25-107

NUT,7/16"-14, G5

7/16" N.C. hex.

6шт.

18

A141841

ROD

ASSY. push

12шт.

19

A20865

TAPPET

lifter, push rod

12шт.

19

A21857

TAPPET

lifter, push rod, 0.010" oversize

12шт.

20

A42130

VALVE

KIT valve, exhaust, set of 2

3шт.

21

A57449

INSERT

KIT insert, exhaust valve

6шт.

22

A57448

GUIDE

KIT guide, intake and exhaust

12шт.

23

A42129

PACKAGE

KIT valve, intake, set of 2

3шт.

24

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

valve stem

12шт.

25

A66328

SEAT

intake and exhaust valve springs

12шт.

26

A62253

SPRING

intake and exhaust valves

12шт.

27

A66336

ROTATOR

Roto Coil, Exhaust Valve

6шт.

28

A44645

KIT

KIT retainer, intake valve, 2 rets. and 4 locks

6шт.

29

A27872

LOCK

valve springs

24шт.
