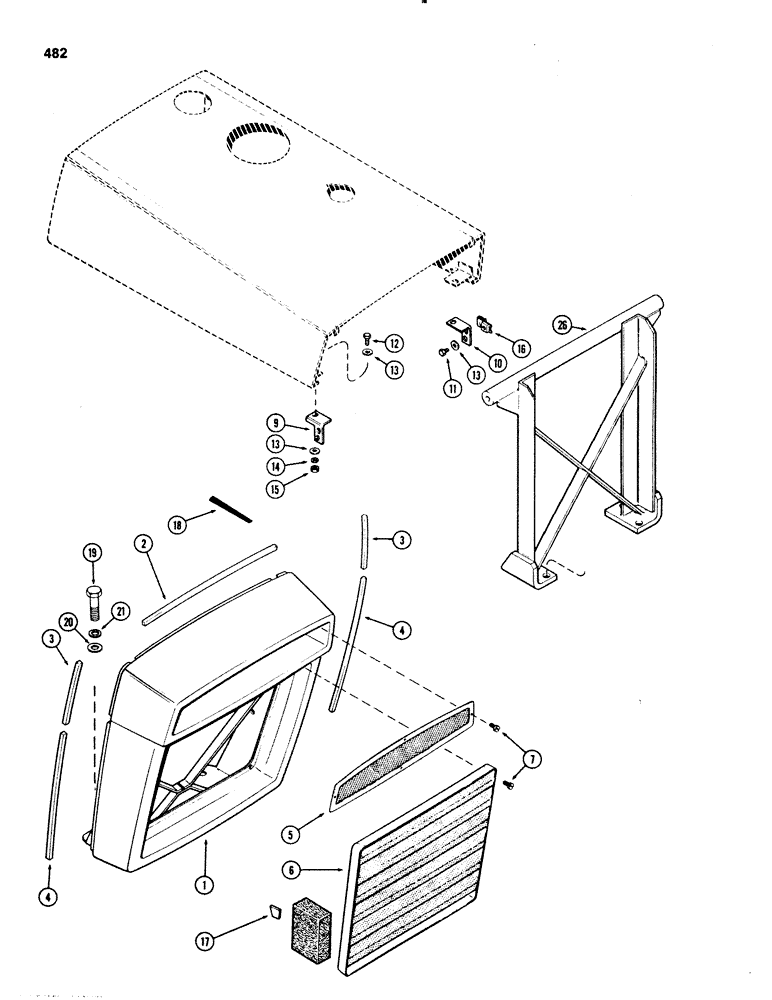

Запчасти Case IH 1070 (0482) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

A139374

GUARD

GRILLE - radiator (Fiberglass) (Replaces A62737 & A64244)

1шт.

2

A59746

SEAL

SPACER - hood to grille, center

1шт.

To be attached with adhesive 345-22

1шт.

3

A59747

GASKET

SPACER - hood to grille side, upper

2шт.

To be attached with adhesive 345-22

1шт.

4

A59748

GASKET

SPACER - front side, Serial Range: sheets-grille

2шт.

To be attached with adhesive 345-22

1шт.

5

A59754

GRILLE

SCREEN ASSY. - grille cap

1шт.

6

A59752

FILTER SCREEN

SCREEN ASSY. - grille

1шт.

7

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. Phillips Type I

8шт.

9

A62742

BRACKET

- front hood to grille, R.H.

1шт.

10

A62743

BRACKET

- front hood to grille, L.H.

1шт.

11

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

- 5/16 x 7/8" N.C. hex

4шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

14

192-45

LOCK WASHER

- 5/16" N.C. hex

6шт.

15

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex

2шт.

16

131-616

NUT,Ret, J, 5/16"-18

- 5/16" N.C. Tinnerman, Type J

4шт.

17

A62211

FOAM

- grille screen

12шт.

18

A135604

POINTER

TRIM - grille sight gage (Replaces A62690)

1шт.

19

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

20

195-45

WASHER,3/4"

4шт.

21

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

23

A147163

SEAL

- grille

2шт.

To be attached with adhesive 345-22

1шт.

25

A60535

ATTACHMENT - support (Mach. Item), implement

1шт.

26

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Implement support Hex, 3/4"-10 x 2 1/2", G5

4шт.
