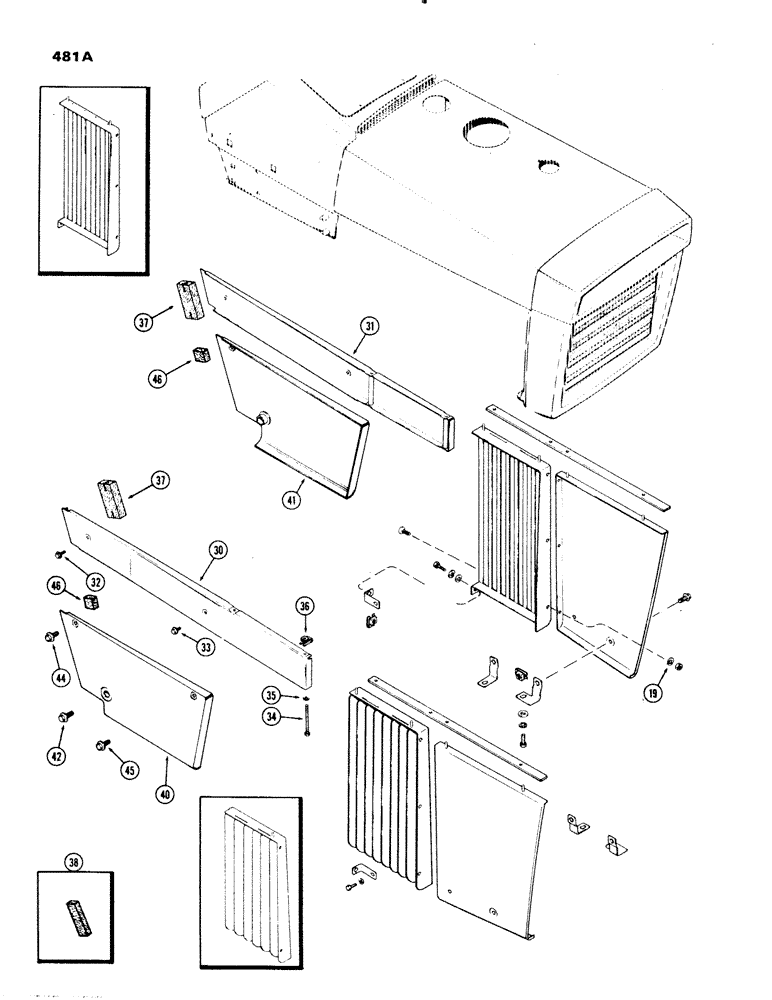

Запчасти Case IH 1070 (0481A) - DECAL PANELS, USED PRIOR TO TRACTOR SERIAL NUMBER 8727601 (09) - CHASSIS/ATTACHMENTS

30

A60968

PANEL

ASSY - decal, RH (Order A65206), used prior to trac serial number 8727601

1шт.

31

A60969

DISK HARROW

PANEL ASSY - decal, LH (Order A65213), used prior to trac serial number 8727601

1шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Decal panels, Used prior to trac S/N 8727601 Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

33

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Decal panels, used prior to tractor S/N 8727601 Hex Flg, 5/16"-18 x 1", Serr

2шт.

34

113-20

BOLT,Hex, 1/4" - 20 x 4-3/4", Gr 5

- 1/4 x 4-3/4" NC hex DECAL PANELS , used prior to trac serial number 8727601

6шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Decal panels, used prior to tractor S/N 8727601 1/4"

6шт.

36

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

RETAINER - Tinnerman, J Type DECAL PANELS , used prior to trac serial number 8727601

6шт.

37

A65939

SEAL

- decal panel seal, (1st used trac ser no. 8715188) (Replaces A61879), used prior to trac serial number 8727601

2шт.

To be attached with adhesive 345-22

1шт.

38

A61879

FOAM

- decal panel seal, (Used prior to trac ser no. 8715188) (Order A65939), used prior to trac serial number 8727601

2шт.

To be attached with adhesive 345-22

1шт.

40

A65212

PANEL

ASSY - rear side, RH

1шт.

41

A65231

PANEL

ASSY - rear side, LH

1шт.

42

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

Rear side panels Hex Flg, 5/16"-18 x 1 1/4", Serr

2шт.

44

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Rear side panels Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

45

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Rear side panels Hex Flg, 5/16"-18 x 1", Serr

2шт.

46

A61878

FOAM

- rear side panel sealing

2шт.

To be attached with adhesive 345-22

1шт.
