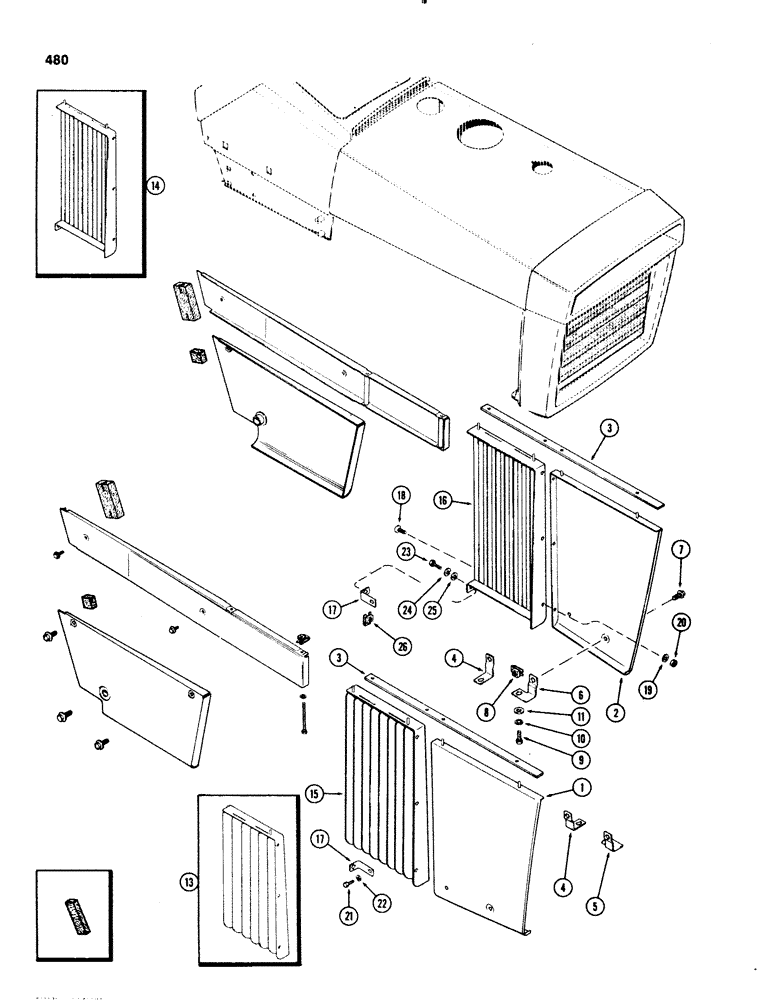

Запчасти Case IH 1070 (0480) - SIDE PANELS, USED PRIOR TO TRACTOR SERIAL NUMBER 8727601 (09) - CHASSIS/ATTACHMENTS

1

A59128

PANEL

ASSY - front side, RH

1шт.

2

A59365

PANEL

ASSY - front side, LH

1шт.

3

A59239

SPACER

- hood & side sheets (See Note)

2шт.

4

A59364

BRACKET

- RH & LH side sheet mounting

2шт.

5

A59278

BRACKET

- RH side sheet mounting

1шт.

6

A59279

BRACKET - LH side sheet mounting

1шт.

7

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

8

131-616

NUT,Ret, J, 5/16"-18

- 5/16" Tinnerman

4шт.

9

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

13

A64922

GUARD

LOUVER ASSY - RH (6 slat) (1st used trac ser no. 8693001)

1шт.

14

A64923

GUARD

LOUVER ASSY - LH (6 slat) (1st used trac ser no. 8693001)

1шт.

15

A59440

VENTILATOR

LOUVER - RH (8 slats) (Used prior to trac ser no. 8693001) (Order A64922 & A64923)

1шт.

16

A59441

GUARD

LOUVER - LH (8 slats) (Used prior to trac ser no. 8693001) (Order A64922 & A64923)

1шт.

17

A61042

BRACKET - louver mounting

2шт.

18

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" NC truss head, louvers

6шт.

19

92-5

LOCK WASHER,5/16"

louvers 5/16"

6шт.

20

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex, louvers

6шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Louvers Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

92-5

LOCK WASHER,5/16"

louvers 5/16"

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Louvers Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

louvers 3/8"

2шт.

25

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", louvers

2шт.

26

131-616

NUT,Ret, J, 5/16"-18

- 5/16" Tinnerman, louvers

2шт.
