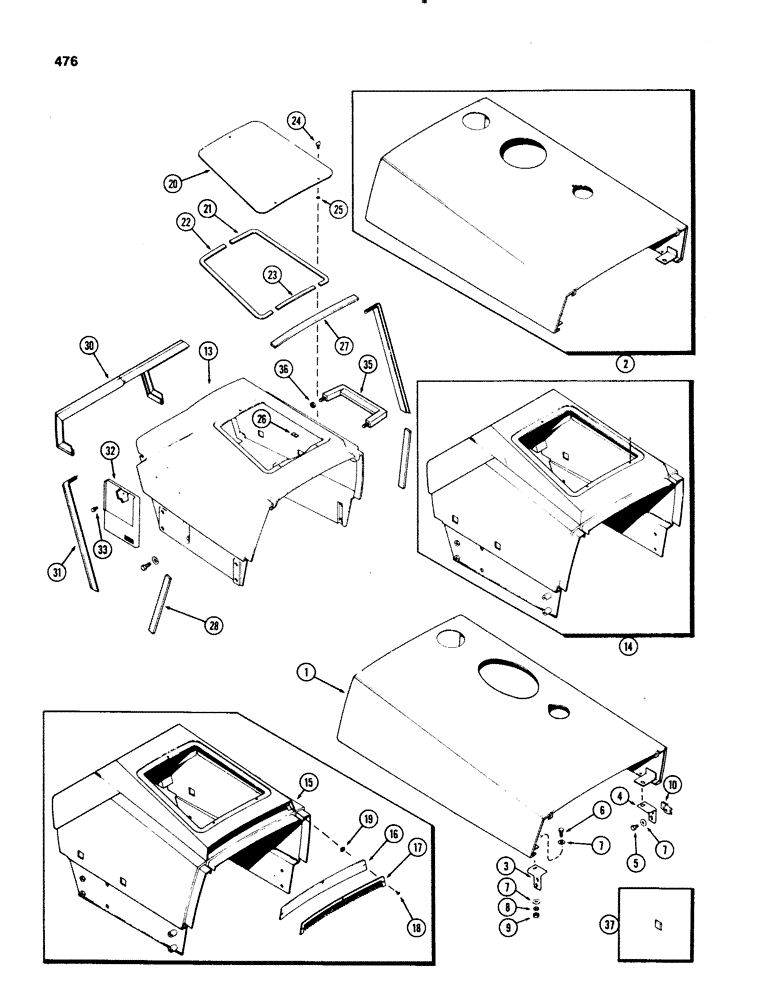

Запчасти Case IH 1070 (0476) - HOOD (09) - CHASSIS/ATTACHMENTS

1

A65736

GUARD

HOOD ASSY - front (For oval muffler) (1st used trac ser no. 8708982)

1шт.

2

A64872

HOOD ASSY - front (For round muffler) (Used prior to tac ser no. 8708982)

1шт.

3

A62742

BRACKET

- front hood to grille, RH

1шт.

4

A62743

BRACKET

- front hood to grille, LH

1шт.

5

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- 5/16 x 1" NC hex

4шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

8

92-5

LOCK WASHER,5/16"

6шт.

9

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

2шт.

10

131-616

NUT,Ret, J, 5/16"-18

- 5/16" NC Tinnerman, Type J

4шт.

13

A141972

GUARD

HOOD ASSY - rear (Used w/manual box)

1шт.

14

A65199

HOOD

ASSY - rear (1st used trac ser no. 8727601) (Order A141972)

1шт.

15

A61640

HOOD

ASSY - rear (Used prior to trac ser no. 8727601) (Order A141972)

1шт.

16

A64876

COVER

- hood opening (1st used trac ser no. 8693001)

1шт.

17

A59395

SCREEN

- rear hood (Used prior to trac ser no. 8693001) (Order A64876)

1шт.

18

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" pan head, Phillips

3шт.

19

131-618

NUT

- Tinnerman

3шт.

20

A59391

COVER

- hood access

1шт.

21

A135682

SEAL

- hood access cover, RH (w/adhesive back) (Replaces A59400)

1шт.

22

A135681

SEAL

- hood access cover, LH (w/adhesive back) (Replaces A59400)

1шт.

23

A135681

SEAL

- hood access cover, center (w/adhesive back) (Replaces A59400)

1шт.

24

A137887

NUT

STUD - wing head, rear hood cover (Replaces A61044)

3шт.

25

A61045

RETAINER

- stud, rear hood cover

3шт.

26

A61046

CLIP

RECEPTACLE CLIP - rear hood cover

3шт.

A45349

KIT

SEAL KIT - hood (adhesive backed) (1/2 x 1 x 48") (Replaces A49406, A59408 & A62122)

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - rear hood center (1/2 x 1 x 17-11/16") (Order A45349)

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - rear hood, outer (1/2 x 1 x 11-13/16") (Order A45349)

2шт.

30

A64864

GUARD

MODLING - rear hood & instrument panel

1шт.

31

A64865

SEAT

MOLDING - rear hood lower

2шт.

32

A141933

BOX

- Operator's Manual

1шт.

33

A143300

FASTENER

- speed clinch

2шт.

35

A60530

HANDLE

- RH & LH

2шт.

36

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" NC hex, lock handle

4шт.

37

A59366

PLUG

- handle hole (Used w/o handle) (Order A66658)

4шт.

37

A62811

PLUG

- handle hole (Used w/o handle) (demonstrator) (black)

4шт.
