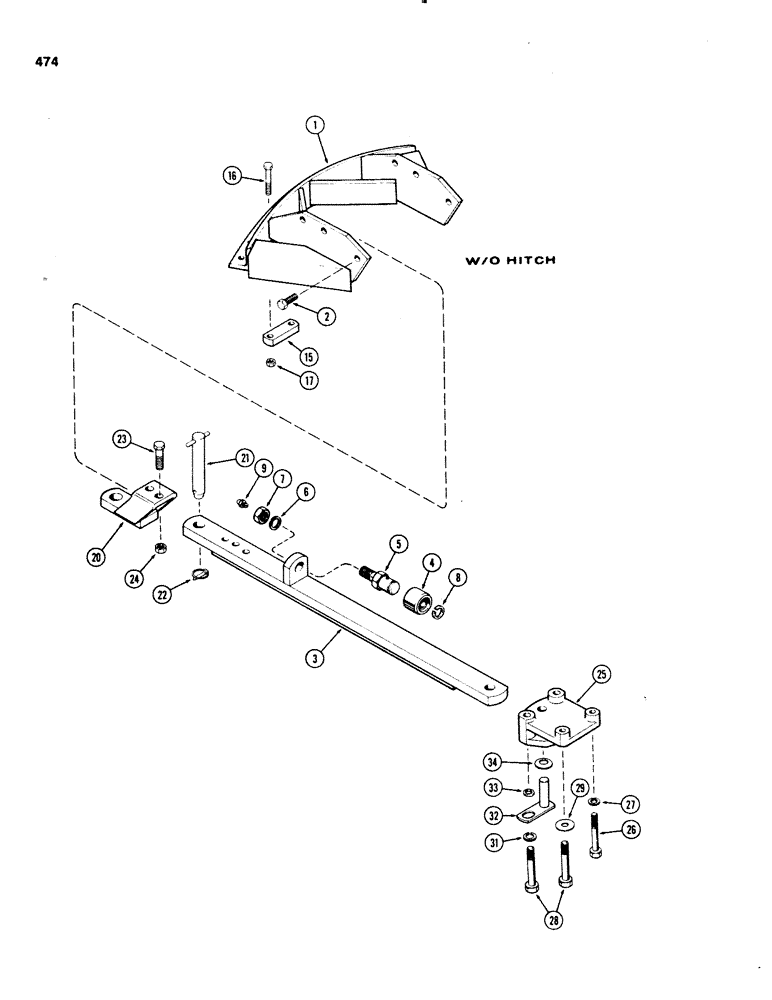

Запчасти Case IH 1070 (0474) - DRAWBAR, WITHOUT HITCH, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

1

A34846

SUPPORT ASSY - wide swing drawbar

1шт.

2

113-746

BOLT - 3/4 x 2" NC hex

6шт.

3

A60444

DRAWBAR

- wide swing (Order A64200)

1шт.

4

A27010

ROLLER

- drawbar

1шт.

5

A32946

BOLT

- drawbar roller

1шт.

6

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

7

129-131

NUT,1 1/8"-12, G5

- 1-1/8" NF hex

1шт.

8

A27012

RING

- snap, drawbar roller bolt

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT steering

1шт.

15

A58347

STRAP

- drawbar clamp

1шт.

16

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.

A60408

ATTACHMENT - yoke (Machine Item), Includes: Ref. 20 - 24

1шт.

20

A60445

YOKE - drawbar

1шт.

21

A65764

PIN

ASSY - drawbar (Replaces A57998), Includes: Ref. 22

1шт.

22

A30338

PIN

KLIK - pin

1шт.

23

113-764

BOLT

- 3/4 x 3-1/4" NC hex

2шт.

24

129-572

NUT,3/4"-10, G8

2шт.

25

A60425

BRACKET

- drawbar pivot pin

1шт.

26

113-671

BOLT - 5/8 x 3-1/4" NC hex

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

113-755

BOLT - 3/4 x 5-1/4" NC hex

1шт.

29

95-12

WASHER,3/4"

- 3/16 x 2 x 5/32"

1шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

32

A65762

PIN

ASSY - drawbar (Replaces A59605)

1шт.

33

A57929

SPACER

- drawbar pivot

1шт.

34

A35270

WASHER

- drawbar anti-rattle spring

1шт.
