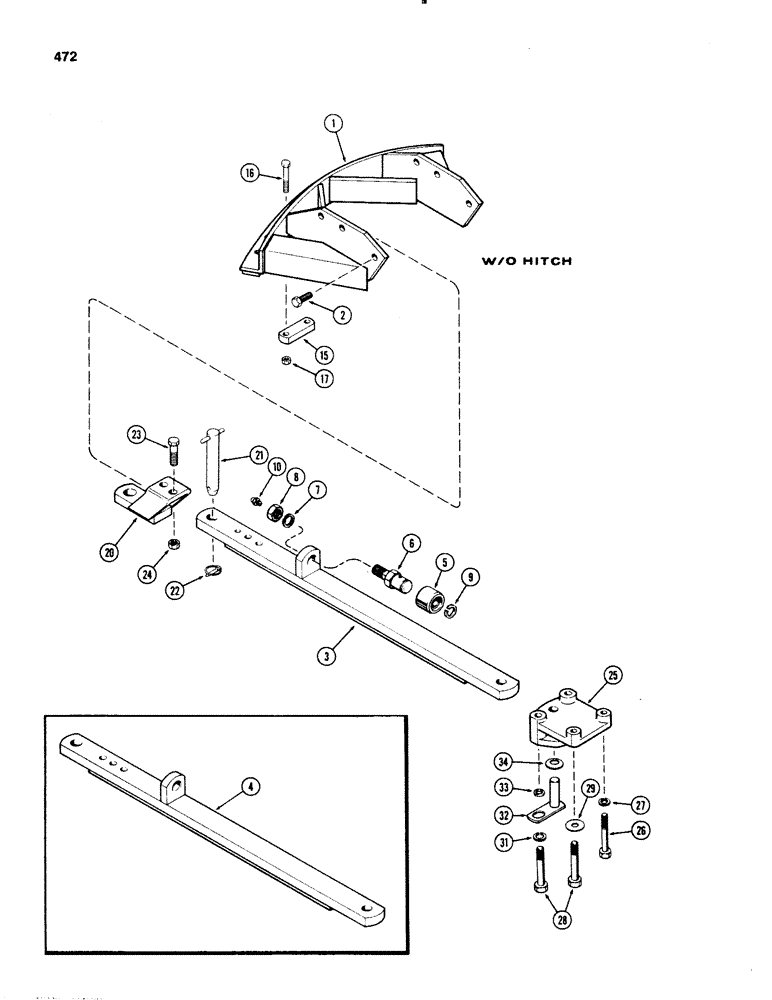

Запчасти Case IH 1070 (0472) - DRAWBAR, WITHOUT HITCH, 1ST USED TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

1

A34846

SUPPORT ASSY. - wide swing drawbar

1шт.

2

113-746

BOLT - 3/4 x 2" N.C. hex

6шт.

3

A141865

DRAWBAR

- wide swing (Replaces A64200 & A65752) (1st used trac. ser. no. 8717277)

1шт.

4

A64200

DRAWBAR - wide swing (Order A141865) (Used trac. ser. nos., Serial Range: 8693001-8717277)

1шт.

5

A27010

ROLLER

- drawbar

1шт.

6

A32946

BOLT

- drawbar roller

1шт.

7

92-18

LOCK WASHER,1 1/8"

WASHER, LOCK, 1 1/8"

1шт.

8

129-131

NUT,1 1/8"-12, G5

- 1-1/8" N.F. hex

1шт.

9

A27012

RING

- snap, drawbar roller bolt

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str

1шт.

15

A58347

STRAP

- drawbar clamp

1шт.

16

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

A64384

ATTACHMENT

YOKE ATTACHMENT - (Machine Item), Includes: Ref. 20 - 24

1шт.

20

A161230

CLEVIS

YOKE - (Order A64383)

1шт.

21

A65764

PIN

ASSY. - drawbar (Replaces A57998), Includes: Ref. 22

1шт.

22

A30338

PIN

KLIK - pin

1шт.

23

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- 3/4 x 3-1/4" N.C. hex

2шт.

24

129-572

NUT,3/4"-10, G8

2шт.

25

A60425

BRACKET

- drawbar pivot pin

1шт.

26

113-671

BOLT - 5/8 x 3-1/4" N.C. hex

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

113-755

BOLT - 3/4 x 5-1/4" N.C. hex

1шт.

29

95-12

WASHER,3/4"

- 3/16 x 2 x 5/32"

1шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

32

A65762

PIN

ASSY. - drawbar (Replaces A59605)

1шт.

33

A57929

SPACER

- drawbar pivot

1шт.

34

A35270

WASHER

- drawbar anti-rattle spring

1шт.
