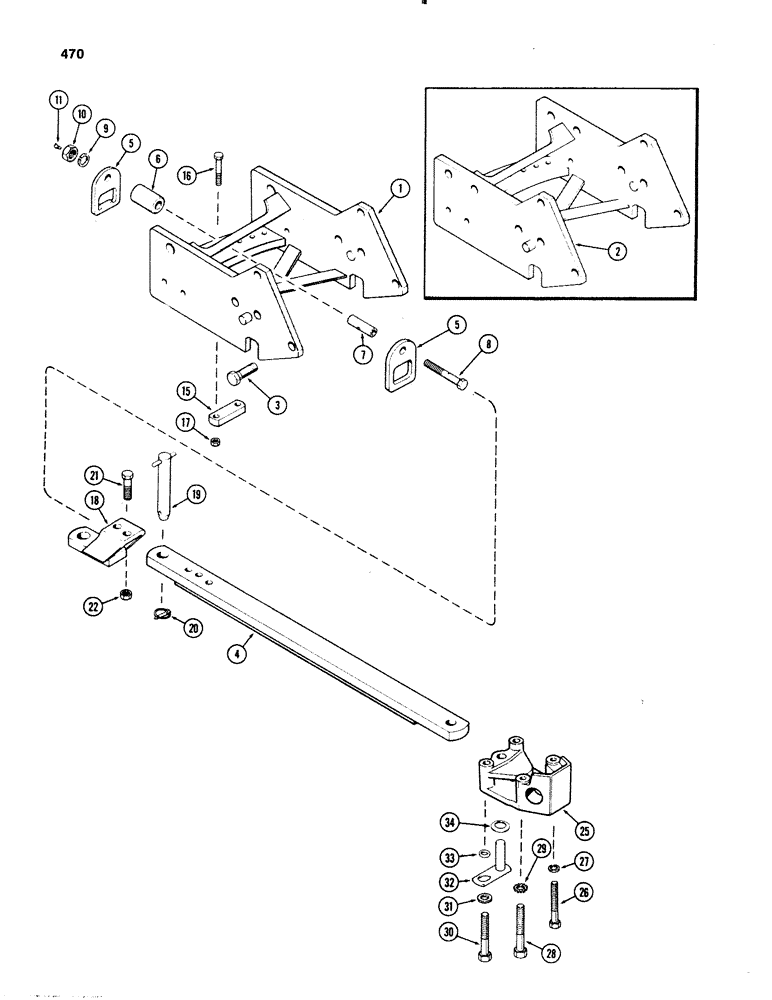

Запчасти Case IH 1070 (0470) - DRAWBAR, WITH HITCH, USED PRIOR TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

1

A61885

SUPPORT

ASSY - drawbar (1st used trans ser no. 2337317)

1шт.

2

A60600

SUPPORT ASSY - drawbar (Used prior to trans ser no. 2337317)

1шт.

3

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

4

A60433

DRAWBAR

ASSY - standard

1шт.

5

A60440

BRACKET

- drawbar

2шт.

6

A59151

ROLLER

- drawbar

1шт.

7

A60418

SLEEVE

- drawbar

1шт.

8

A59165

BOLT

- drawbar roller

1шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

10

25-1012

NUT,3/4"-10, G5

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT

1шт.

15

A58347

STRAP

- draw bar clamp

1шт.

16

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.

60408

DOWEL

ATTACHMENT - yoke (Machine Item), Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

YOKE - drawbaar

1шт.

19

A65764

PIN

ASSY - drawbar (Replaces A65764), Includes: Ref. 20

1шт.

20

A30338

PIN

- klik

1шт.

21

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- 3/4 x 3-3/4" NC hex

2шт.

22

129-572

NUT,3/4"-10, G8

2шт.

25

A59603

BRACKET

- drawbar pivot pin

1шт.

26

113-672

BOLT

- 5/8 x 5-1/4" NC hex

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

13-1292

BOLT,Hex, 3/4" - 10 x 5-3/4", Gr 5

(Replaces 113-755) Hex, 3/4"-10 x 5 3/4", G5

1шт.

29

A34651

LOCK WASHER

- Shakeproof, 3/4" external

1шт.

30

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

31

95-12

WASHER,3/4"

- 13/16 x 2 x 5/32"

2шт.

32

A65762

PIN

ASSY - drawbar (Replaces A59605)

1шт.

33

A57929

SPACER

- drawbar pivot

1шт.

34

A35270

WASHER

- drawbar anti-rattle spring

1шт.
