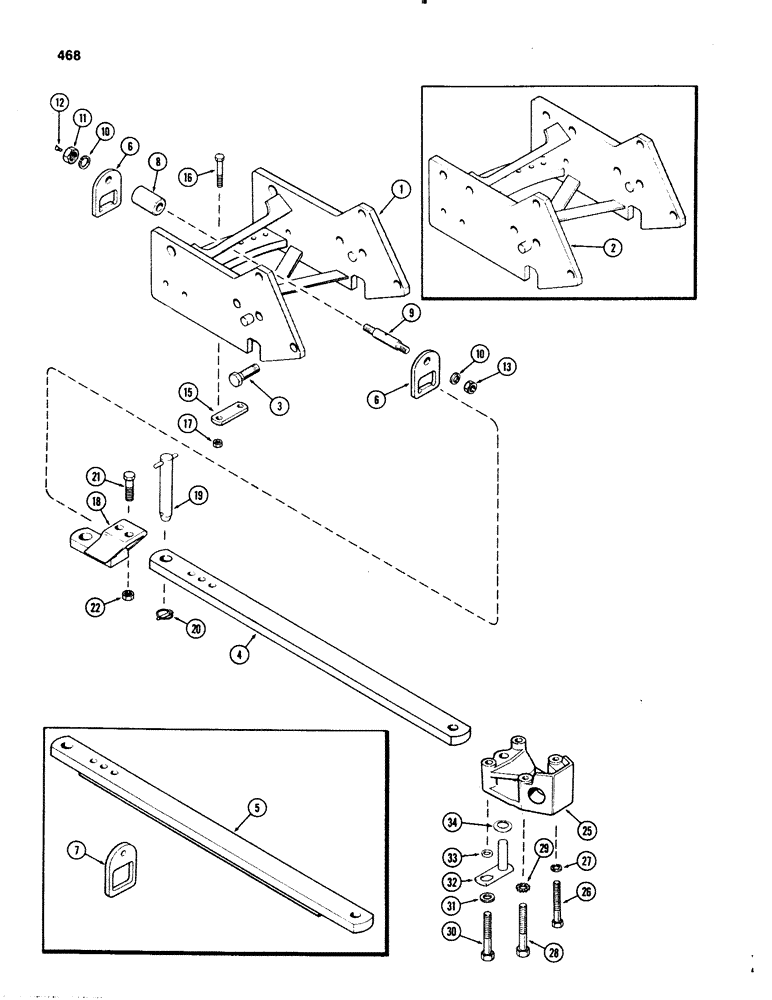

Запчасти Case IH 1070 (0468) - DRAWBAR, WITH HITCH, 1ST USED TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

1

A61885

SUPPORT

ASSY - drawbar (1st used trans ser no. 2337317)

1шт.

2

A60600

SUPPORT ASSY - drawbar (Used prior to trans ser no. 2337317)

1шт.

3

113-747

X

BOLT - 3/4 x 2-1/4" NC hex

8шт.

4

A65750

DRAWBAR, SWINGING

DRAWBAR - standard (Replaces A64465) (1st used tac ser no. 8717277)

1шт.

5

A64465

DRAWBAR

- standard (Order 1-A65750 drawbar & 2-A60417 hanger brackets) (Used prior to trac ser no. 8717277)

1шт.

6

A60417

BRACKET

- drawbar hanger (Replaces A60440) (Used w/A65750 drawbar)

2шт.

7

A60440

BRACKET

- drawbar hanger (Used w/A64456)

2шт.

8

A59151

ROLLER

- drawbar

1шт.

9

A65702

SHAFT

- drawbar roller (Replaces A64464)

1шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

11

25-1012

NUT,3/4"-10, G5

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT

1шт.

13

131-561

NUT

- 3/4" NC hex, thin flexloc

1шт.

15

A58347

STRAP

- drawbar clamp

1шт.

16

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.

A64384

ATTACHMENT

YOKE ATT - (Mach Item), Includes: Ref. 18 - 22

1шт.

18

A161230

CLEVIS

YOKE - (Order A64384)

1шт.

19

A65764

PIN

ASSY - drawbar (Replaces A57998)

1шт.

20

A30338

PIN

KLIK - pin

1шт.

21

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- 3/4 x 2-3/4" NC hex

2шт.

22

129-572

NUT,3/4"-10, G8

2шт.

25

A59603

BRACKET

- drawbar pivot pin

1шт.

26

113-672

BOLT

- 5/8 x 5-1/4" NC hex

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

113-755

BOLT - 3/4 x 5-3/4" NC hex

1шт.

29

A34651

LOCK WASHER

- Shakeproof, 3/4" external

1шт.

30

113-756

BOLT

- 3/4 x 6" NC hex

1шт.

31

95-12

WASHER,3/4"

- 13/16 x 2 x 5/32"

2шт.

32

A65762

PIN

ASSY - drawbar pivot (Relaces A59605)

1шт.

33

A57929

SPACER

- drawbar pivot

1шт.

34

A35270

WASHER

- spring, pivot pin

1шт.
