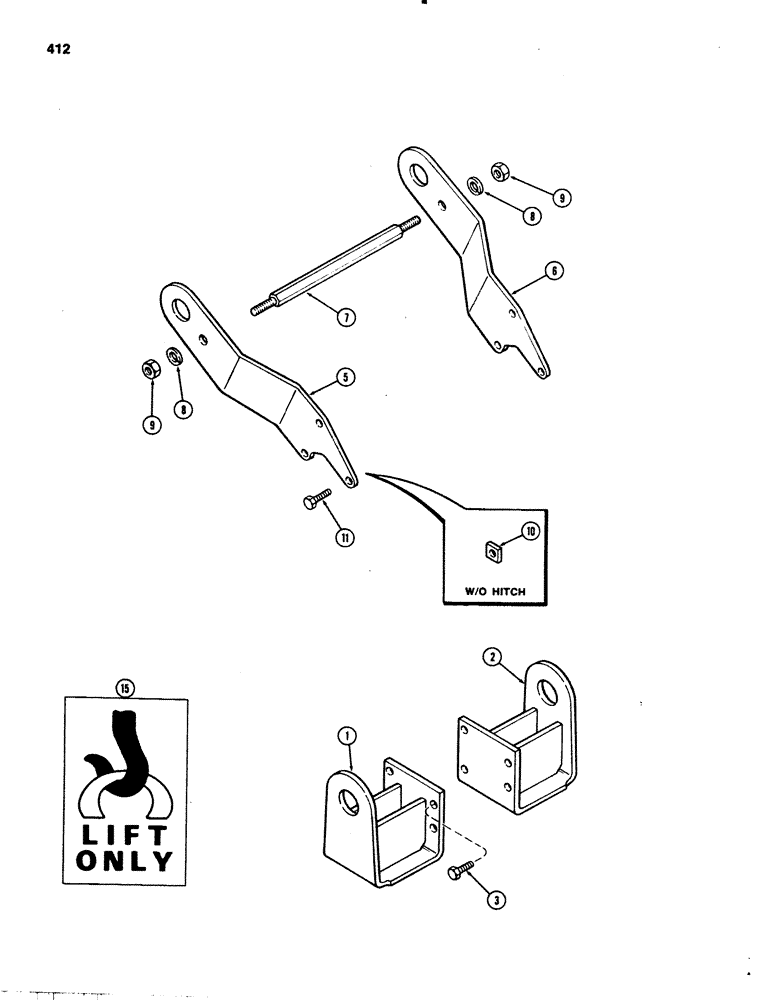

Запчасти Case IH 1070 (0412) - LIFT EYES (09) - CHASSIS/ATTACHMENTS

1

A141869

LIFT EYE - front, R.H.

1шт.

2

A141872

LIFT EYE - front, L.H.

1шт.

3

13-708

BOLT - 3/4 x 2" N.C. hex

8шт.

5

A141588

LIFT EYE - rear, R.H.

1шт.

6

A141587

LIFT EYE - rear, L.H.

1шт.

7

A141589

BRACKET

BAR - lift eye stabilizer, rear

1шт.

8

192-31

LOCK WASHER,1"

WASHER, LOCK, , Rear lift eye 1"

2шт.

9

129-110

NUT,1"-8, G5

Rear lift eye 1"-8, G5

2шт.

10

G17139

SPACER - lift eye (Used w/o hitch), rear

6шт.

11

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- 3/4 x 2-3/4" N.C. hex (Used w/o hitch), rear lift eye

6шт.

11

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- 3/4 x 3-3/4" N.C. hex. (Used w/o hitch), rear lift eye

6шт.

15

321-3578

DECAL

- lift eye, rear

1шт.
