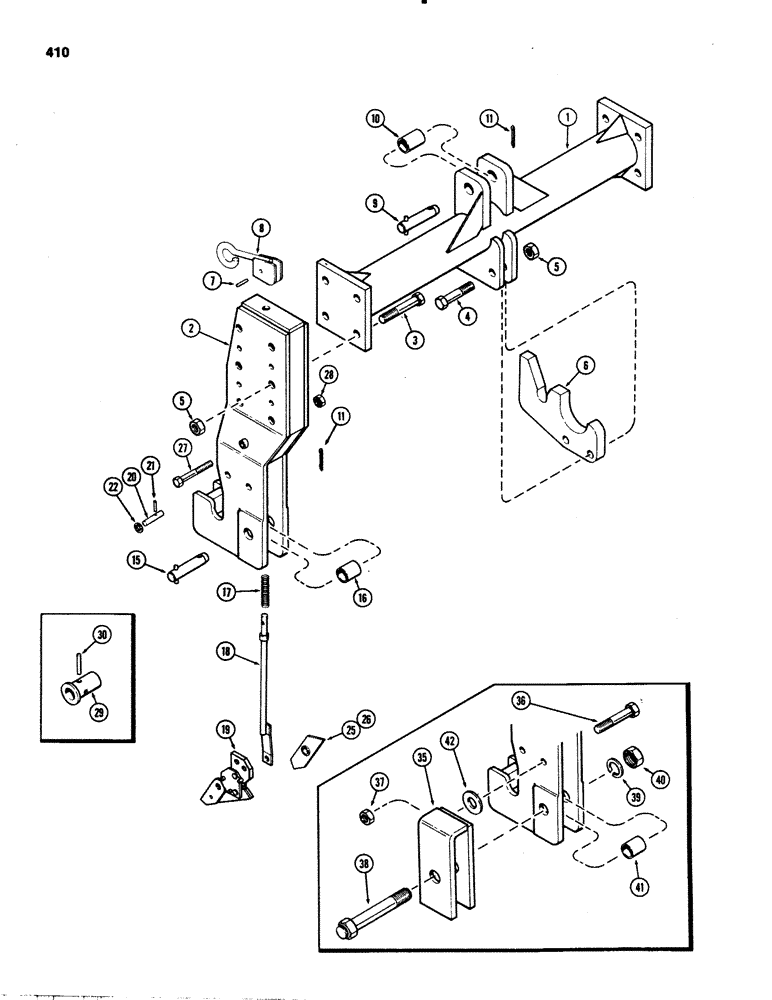

Запчасти Case IH 1070 (0410) - QUICK HITCH COUPLER, CATEGORY III AND II (09) - CHASSIS/ATTACHMENTS

A66281

NO LONGER SERVICED

ATTACHMENT - coupler (Mach. Item), Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - upper arm tube (Order A66281)

1шт.

2

NSS

NOT SOLD SEPARAT

HITCH - lower arm bracket, R.H. (Order A66281)

1шт.

2

NSS

NOT SOLD SEPARAT

HITCH - lower arm bracket L.H. (Order A66281)

1шт.

3

113-736

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4 x 4-1/4" N.C. hex

8шт.

4

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

5

129-108

NUT,3/4"-10, G5

10шт.

6

A44600

PLATE

LUG - upper arm hitch

1шт.

7

138-2067

PIN,3/16" x 1", Coiled

2шт.

8

A45456

HANDLE

- hitch release

2шт.

9

A45463

PIN

- upper hitch (Replaces A44599)

1шт.

10

A44474

SLEEVE

- upper draft arm pin

1шт.

11

T50113

PIN

- clinch, hitch pin

3шт.

15

A45462

PIN

- coupler arm, lower

2шт.

16

A43542

SLEEVE

- coupler arm (for Cat. II Tractors)

2шт.

17

A45461

SPRING

- release rod (Replaces A44476)

2шт.

18

A44598

ROD

- handle to tripping devices (Used w/handle, Serial Range: facing-rear)

2шт.

18

A45086

ROD

- handle to tripping devices (Used w/handles facing each other)

2шт.

19

A45020

LEVER

- lock, R.H. (Replaces A44596)

1шт.

19

A45019

LEVER

- lock, L.H. (Replaces A44597)

1шт.

20

A45459

PIN

- trip ratchet lever pin

2шт.

21

138-2055

PIN,3/16" x 1 1/2", Coiled

WASHER - 21/32 x 1-5/16 x 1/8"

2шт.

25

A44470

LEVER

- lower trip ratchet, R.H.

1шт.

26

A44471

LEVER

- lower trip ratchet, L.H.

1шт.

27

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

28

131-165

NUT,1/2"-13, GA

NUT - 1/2" N.C. Gripco crown lock

2шт.

29

T32995

ADAPTER

- hitch coupler

2шт.

30

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

A66283

KIT

- hitch adapter (Mach. Item) (Category II), Includes: Ref. 35 - 42

1шт.

35

A66284

BRACKET

- adapter

2шт.

36

113-777

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- 3/4 x 4-1/4" N.C. hex

2шт.

37

131-385

LOCK NUT,3/4"-10, GA

NUT - 3/8" N.C. Gripco Top lock

2шт.

38

A66285

BOLT

- adapter attaching

2шт.

39

192-33

LOCK WASHER,1 1/8"

1 1/8"

2шт.

40

129-131

NUT,1 1/8"-12, G5

- 1-1/8" N.F. hex

2шт.

41

A43542

SLEEVE

- coupler arm (Used w/A66281 hitch to prevent coupler arm collapse)

2шт.

42

195-109

WASHER,3/4"

- 13/16 x 2 x 1/8"

2шт.
