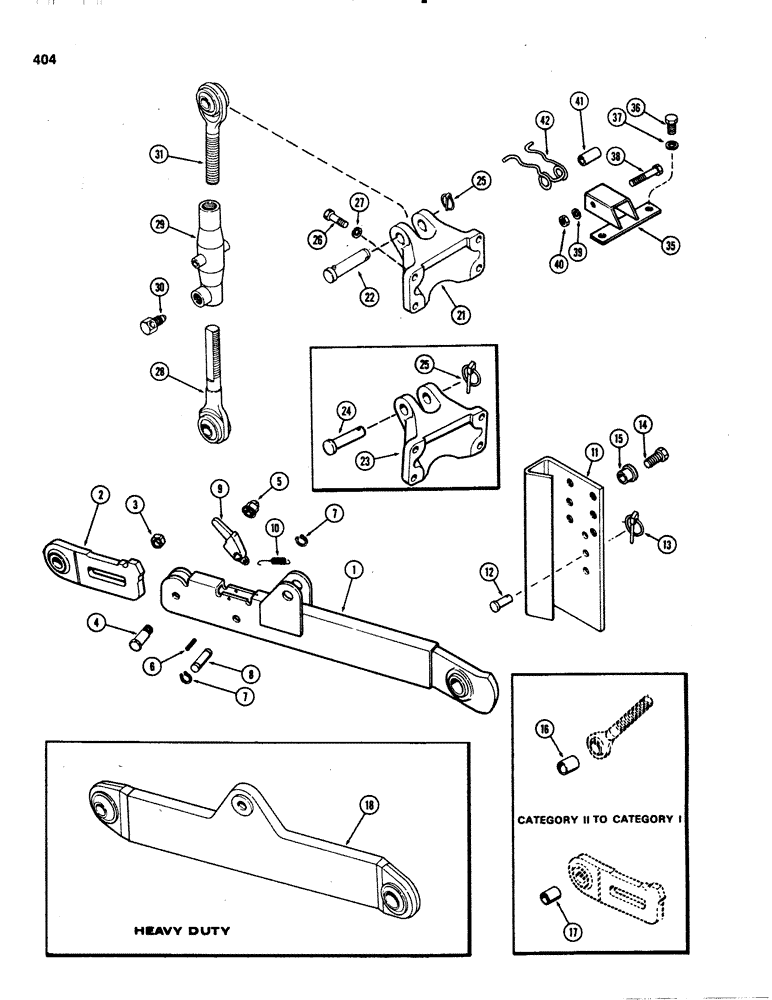

Запчасти Case IH 1070 (0404) - THREE POINT HITCH, DRAFT ARMS (09) - CHASSIS/ATTACHMENTS

A61010

ARM ASSY - draft, RH (Standard) (Includes Items 1 thru 10)

1шт.

A61011

ARM ASSY - draft, LH (Standard), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - draft, RH (Order A61010)

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - draft, LH (Order A61011)

1шт.

2

A61020

LINK

- folding, RH

1шт.

2

A61021

LINK - folding, LH

1шт.

3

A61026

BLOCK

- folding slide

1шт.

4

A61111

BOLT

- 3/4 x 2-1/2" NC hex, shoulder

1шт.

5

131-657

LOCK NUT,3/4"-10, GB

NUT - 3/4" NC hex, crown lock

1шт.

6

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

7

A33531

SNAP RING,#75, Ext

Ring, Snap, , pivot pin retainer #75, Ext

2шт.

8

A60259

PIN

- folding link latch pivot

1шт.

9

A61024

LATCH

- folding link

1шт.

10

A61025

SPRING

- folding link latch

1шт.

11

A61700

STOP

- draft arm sway, RH

1шт.

11

A61701

STOP

- draft arm sway, LH

1шт.

12

A60603

PIN

- stop mounting

2шт.

13

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY - klik

2шт.

14

113-744

X

BOLT - 3/4 x 1-3/4" NC hex

2шт.

15

A60597

SPACER

- stop pivot

2шт.

16

A33499

ADAPTER

- upper hitch pin (Cat II to Cat I)

1шт.

17

A33498

ADAPTER

- lower hitch pin (Cat II to Cat I)

2шт.

18

A62378

ARM

- draft, RH (Heavy Duty)

1шт.

18

A62379

ARM

- draft, LH (Heavy Duty)

1шт.

21

A66496

BRACKET

- upper link mounting (1st used trac ser no. 8742445)

1шт.

22

A141825

LINK

PIN - rear link mast (Replaces A66497) (1st used trac ser no. 8742445)

1шт.

23

A60667

BRACKET

- upper link mounting (Order 1-A66496 & 1-A141825) (Used prior to trac ser no. 8742455)

1шт.

24

A33432

PIN

- rear link mast (Order A141825) (Used prior to trac ser no. 8742445)

1шт.

25

A33509

PIN,11.18mm OD

ASSY - klik

1шт.

26

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

A62289

SCREW,1 1/4" - 12 x 5.60"

- upper link, rear (Implement End)

1шт.

29

A62287

TURNBUCKLE

- upper lift link

1шт.

30

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- turnbuckle lock

1шт.

31

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper link, front (Tractor End)

1шт.

35

A60664

BRACKET

- turnbuckle transport clip

1шт.

36

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

38

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" NC hex

1шт.

39

92-8

LOCK WASHER,1/2"

1шт.

40

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

1шт.

41

A60246

SPACER

- bracket

1шт.

42

A61684

CLIP

- transport

1шт.
