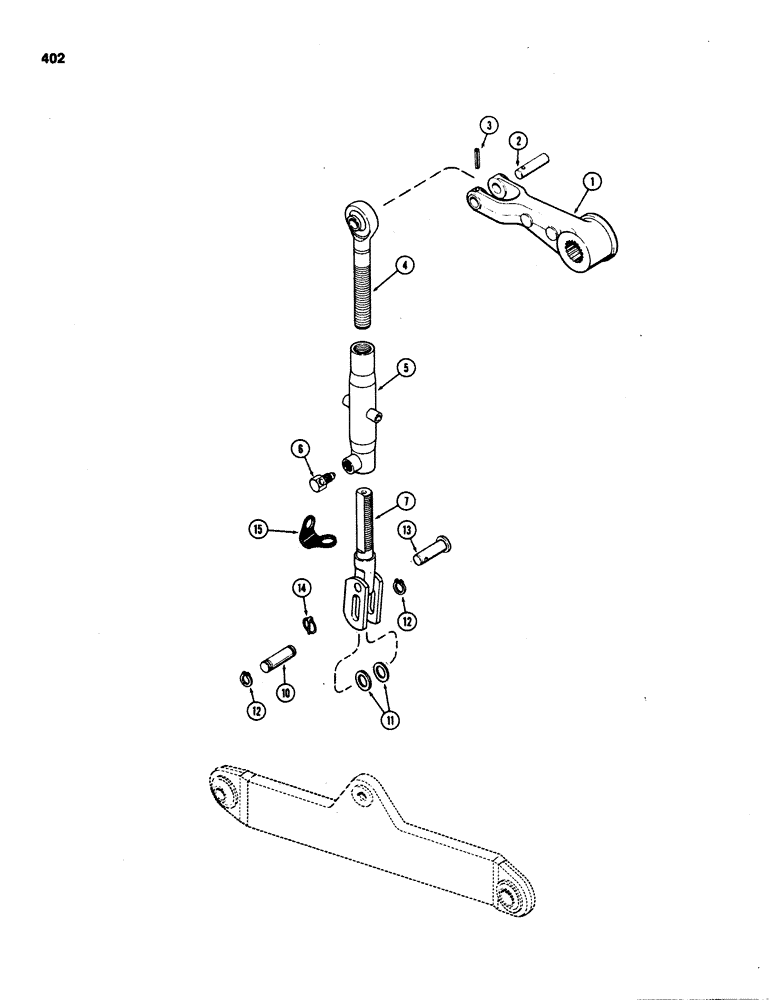

Запчасти Case IH 1070 (0402) - THREE POINT HITCH, LIFT LINKS, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

A57494

ARM

- rockshaft, R.H. & L.H.

2шт.

2

A32268

PIN

- lift arm to lift link

2шт.

3

135-766

GROOVED PIN,1/4" x 2", Type E

Pin, Grooved, 1/4" x 2", Type E

2шт.

4

A61470

LINK ASSY. - lift, upper

2шт.

5

A61795

TURNBUCKLE ASSY. - lift link

2шт.

6

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- yoke locating

1шт.

7

A61474

LINK ASSY. - lift, lower

1шт.

10

A60979

PIN

- lift link to draft arm (replaces A60679)

2шт.

11

195-553

WASHER,1", SAE

- 1-1/16 x 2 x 1/8"

4шт.

12

A34428

SNAP RING,#98, Ext

Ring, Snap, , link pin #98, Ext

4шт.

13

A62243

PIN

- float lockout

2шт.

14

A30338

PIN

ASSY. - klik

2шт.

15

A62986

HOLDER

KEEPER - lock screw

2шт.
