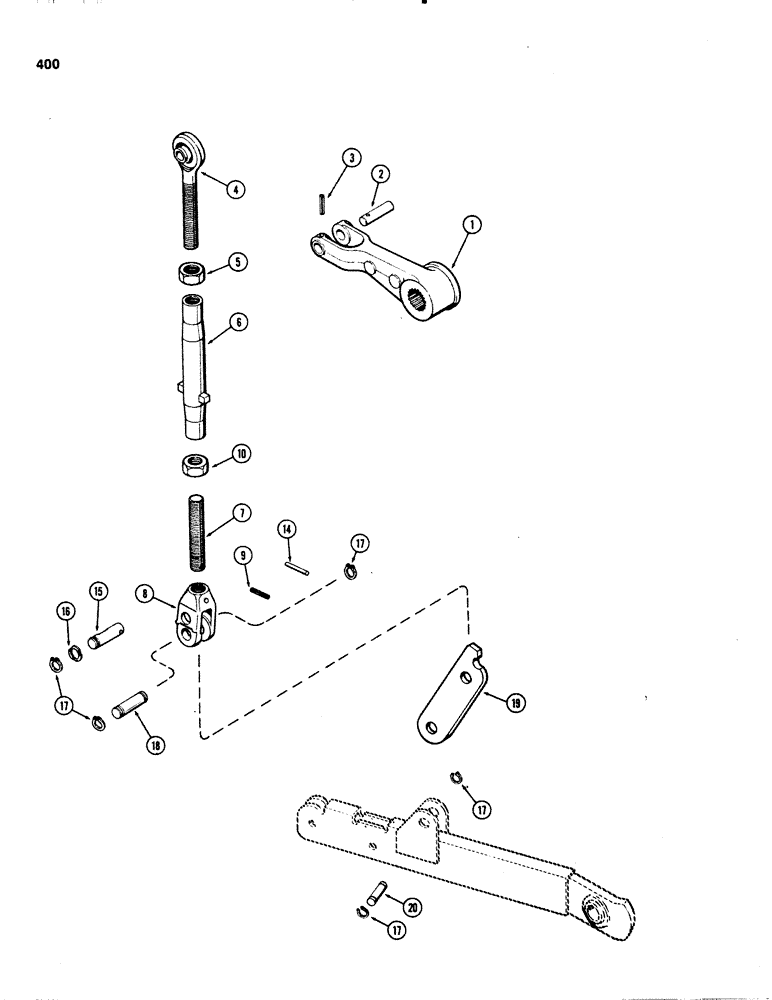

Запчасти Case IH 1070 (0400) - THREE POINT HITCH, LIFT LINKS, STANDARD (09) - CHASSIS/ATTACHMENTS

1

A57494

ARM

- rockshaft, R.H. & L.H.

2шт.

2

A32268

PIN

- lift arm to lift link, upper

2шт.

3

135-766

GROOVED PIN,1/4" x 2", Type E

Pin, Grooved, 1/4" x 2", Type E

2шт.

4

A64460

LINK

ASSY. - lift, upper (Replaces A60262)

2шт.

5

129-372

NUT,Jam, 1 1/4"-12, G5, LH

- 1-1/4" N.F. hex., jam (L.H. thread)

2шт.

6

A60265

SHAFT

TURNBUCKLE - lift link

2шт.

7

A64456

LINK

- lift, lower (Replaces A57503)

1шт.

8

A57504

YOKE - lower lift link

1шт.

9

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

Drill Hole for 138-159 (Ref #9) with A64456 (Ref #7) in place.

1шт.

10

25-1520

NUT

- 1-1/4" N.F. hex., jam (R.H. thread)

2шт.

14

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

2шт.

15

A34595

PIN

- lock, lift link float

2шт.

16

A34431

WASHER - spring, float lock pin

2шт.

17

A34428

SNAP RING,#98, Ext

Ring, Snap, , pin #98, Ext

10шт.

18

A34429

PIN

- lift link, 2-3/4" long

2шт.

19

A34426

LINK - float

2шт.

20

A60261

PIN

- lower, lift link

2шт.
