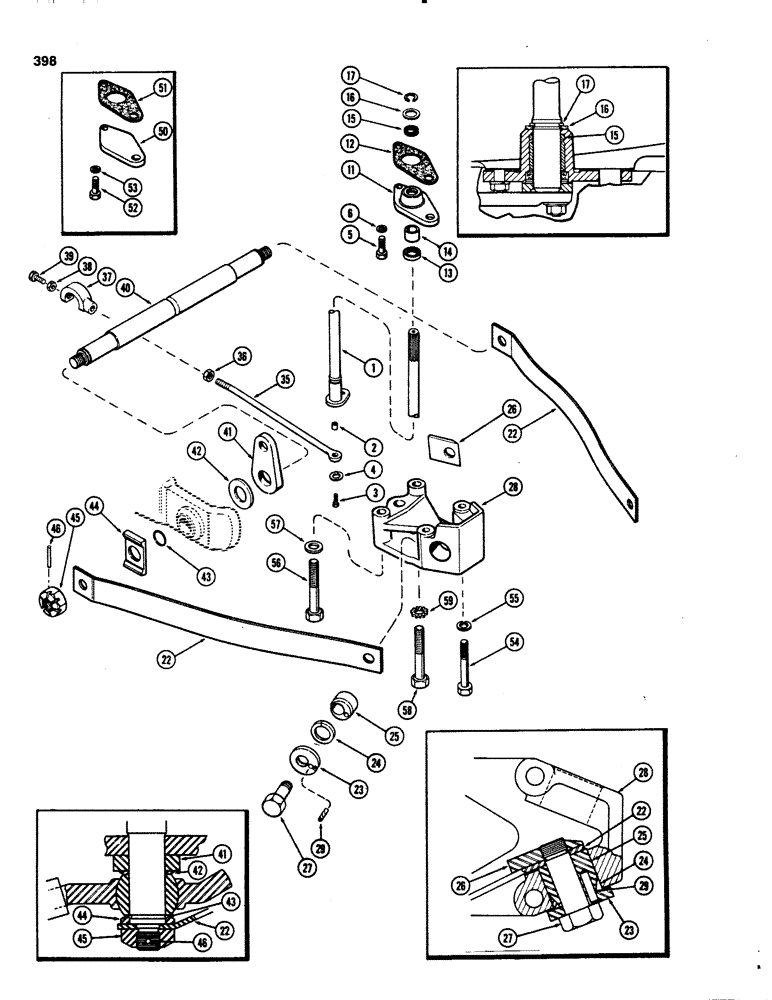

Запчасти Case IH 1070 (0398) - D-O-M LOWER SENSING LINKAGE (09) - CHASSIS/ATTACHMENTS

1

A34834

SHAFT

- draft signal

1шт.

2

A34836

SPACER

- draft signal arm, 5/16 x 1/2 x 15/32"

1шт.

3

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

5

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

11

A32203

BUSHING

SUPPORT - draft signal shaft

1шт.

12

A32210

GASKET

- support

1шт.

13

A23903

OIL SEAL

- oil, 1 x 1-1/2 x 1/4"

1шт.

14

A31082

BUSHING

BEARING - 1 x 1-1/4 x 1"

1шт.

15

A9394

RING

- quad, 1 x 1-1/4 x 9/64"

1шт.

16

B18275

WASHER

- 1-1/32 x 1-1/2 x 12 ga

1шт.

17

A33315

RING

- snap, shaft retaining

1шт.

22

A57581

SPRING

- wishbone (See Note)

2шт.

23

A147637

WASHER

- clamp, adjusting cam (1st used trans ser no. 10067019)

2шт.

23

A57585

WASHER

- clamp, adjusting cam (Used prior to trans ser no. 10067019) (Order 1-A147637 washer & 1-A147468 cam)

2шт.

24

A57584

RING

- cam adjusting

2шт.

25

A147468

CAM

- adjusting, wishbone (1st used trans ser no. 10067019)

2шт.

25

A57582

CLAMP

CAM - adjusting, wishbone (Used prior to trans ser no. 10067019) (Order 1-A147637 washer & 1-A147468 cam)

2шт.

26

A57583

CLAMP

- adjusting (Replaces A67074)

2шт.

27

A57943

STEP BOLT

BOLT - cam

2шт.

28

A59603

BRACKET

- drawbar pivot pin

1шт.

29

138-2042

PIN,5/16" x 1 1/4", Coiled

2шт.

35

A33405

LINK

- draft signal control

1шт.

36

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" NF hex, jam

1шт.

37

A33006

LOCK

- draft signal control link

1шт.

38

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex, jam

1шт.

39

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

40

A57587

BAR

- cross, wishbone

1шт.

41

A32953

LINK

- support, cross bar

2шт.

42

A62435

WASHER

- inner, draft arm pivot

2шт.

43

A57588

RING

- snap, cross bar

2шт.

44

A57589

PLATE

- spacer

2шт.

45

A33404

NUT

- retaining

2шт.

46

138-2014

PIN,3/16" x 1 7/8", Coiled

2шт.

50

A32387

COVER - draft signal shaft, w/o hitch

1шт.

51

A32210

GASKET

- cover

1шт.

52

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

53

92-6

LOCK WASHER,3/8"

1шт.

54

113-672

BOLT

- 5/8 x 5-1/4" NC hex

2шт.

55

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

56

113-758

X

BOLT - 3/4 x 6" NC hex

1шт.

57

95-12

WASHER,3/4"

- 13/16 x 2 x 5/32"

1шт.

58

13-1292

BOLT,Hex, 3/4" - 10 x 5-3/4", Gr 5

(Replaces 113-775) Hex, 3/4"-10 x 5 3/4", G5

1шт.

59

A34651

LOCK WASHER

- Shakeproof, 3/4" external

1шт.
