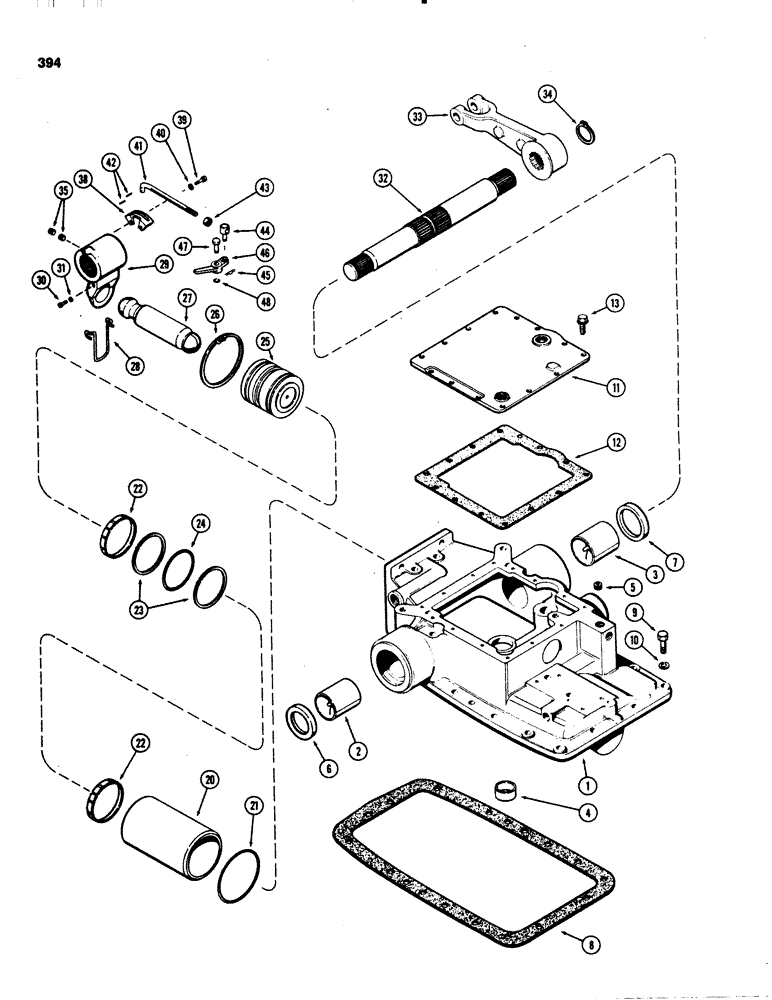

Запчасти Case IH 1070 (0394) - ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

1

A60639

HOUSING

ASSY - rockshaft, Includes: Ref. 2 - 5

1шт.

2

A32302

BUSHING,60.27mm ID x 65.2mm OD x 76.2mm L

- RH, 2-3/8 x 2-9/16 x 3"

1шт.

3

A32303

BUSHING,69.75mm ID x 74.73mm OD x 76.2mm L

- LH, 2-3/4 x 2-15/16 x 3"

1шт.

4

A12014

BUSHING

- 1-1/2 x 1-3/4 x 3/4"

1шт.

5

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - 3/8" hex socket head, pipe

3шт.

6

A32304

OIL SEAL,60.33mm ID x 85.8mm OD x 11.91mm Thk

- oil, RH (2-3/8 x 3-3/8 x 15/32")

1шт.

7

A32305

OIL SEAL,69.85mm ID x 92.2mm OD x 11.91mm Thk

- oil, LH (2-3/4 x 3-5/8 x 15/32")

1шт.

8

A32299

GASKET

- housing

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

9

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- 1/2 x 6" NC hex

2шт.

9

115-415

BOLT - 1/2 x 7" NC hex

2шт.

10

92-8

LOCK WASHER,1/2"

16шт.

11

A59598

COVER

- rockshaft housing

1шт.

12

A33383

GASKET

- cover

1шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

10шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" NC hex

2шт.

20

A147755

SLEEVE

LINER - cylinder piston (Replaces A34273)

1шт.

21

A32295

O-RING,5.725" ID x 6.275" OD x 0.275"

- 5-3/4 x 6-1/4 x 1/4"

1шт.

22

A32219

RING,126.62mm ID x 133.35mm OD x 15.88mm Thk

- piston wear

2шт.

23

A32293

RING,121.94mm ID x 133.93mm OD x 2.97mm Thk

- piston back-up

2шт.

24

A32294

O-RING,4.725" ID x 5.275" OD x 0.275"

- 4-3/4 x 5-1/4 x 1/4"

1шт.

25

A34270

PISTON

ASSY - rockshaft hydraulic cylinder

1шт.

26

A32292

CIRCLIP

RING - snap, piston liner retainer

1шт.

27

A57887

ROD

- piston

1шт.

28

A60497

SPRING

- piston rod

1шт.

29

A32287

ARM

- piston rod

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

32

A32286

ROCKSHAFT

1шт.

33

A57494

ARM

- rockshaft, RH & LH

2шт.

34

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, lift arm retaining

2шт.

35

84-88

SET SCREW,Hex Soc, 1/2"-20 x 1/2"

SCREW - 1/2" NF cup point head, set

2шт.

38

A33380

BRACKET

- rod lock

1шт.

39

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

40

92-5

LOCK WASHER,5/16"

2шт.

41

A33381

ROD

- valve lock

1шт.

42

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

43

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" NF hex, jam

1шт.

44

A33379

TRUNNION

-, Serial Range: rod-lever

1шт.

45

136-109

SPLIT PIN

PIN - cotter, 5/64 x 1-27/64"

1шт.

46

A34175

LEVER

- valve lock

1шт.

47

A32918

PIN

- pivot, lever

1шт.

48

A11538

SNAP RING,#50, Ext

Ring, Snap, , pin retaining #50, Ext

1шт.
