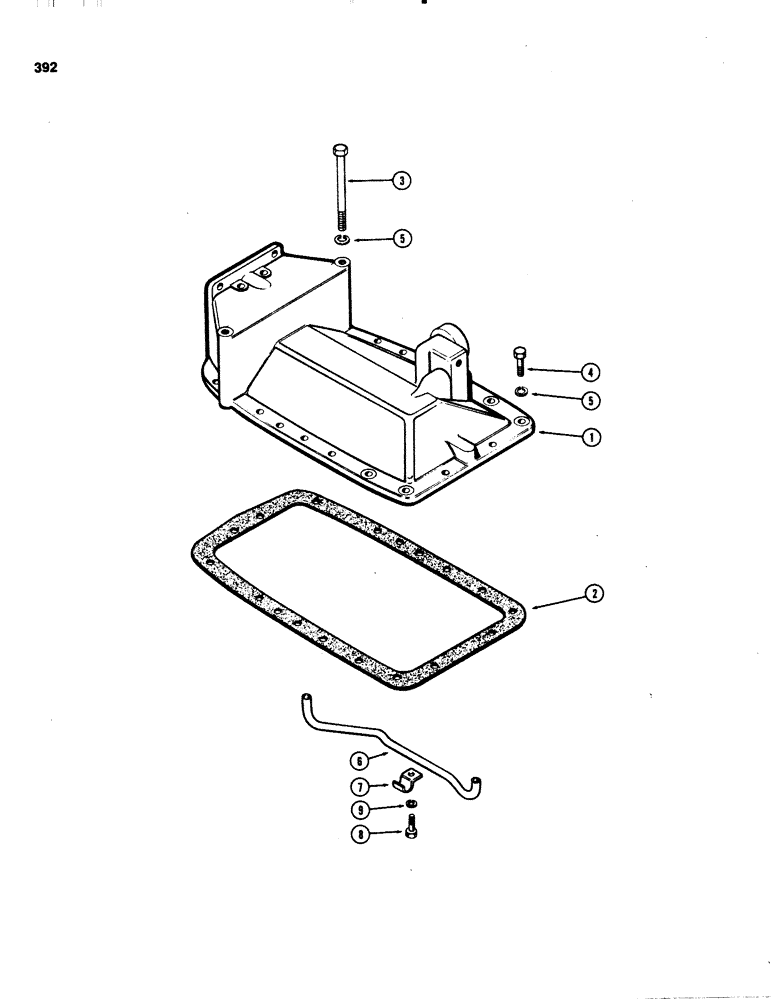

Запчасти Case IH 1070 (0392) - TRANSMISSION REAR COVER, WITHOUT DRAFT-O-MATIC (09) - CHASSIS/ATTACHMENTS

1

A60637

COVER - transmission, rear top

1шт.

2

A32299

GASKET

-, Serial Range: cover-case

1шт.

3

15-8112

BOLT

- 1/2 x 7" NC hex

2шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

5

92-8

LOCK WASHER,1/2"

14шт.

6

A33521

PIPE CLAMP

TUBE - auxiliary valve return

1шт.

7

A33554

CLIP - tube

2шт.

8

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.
