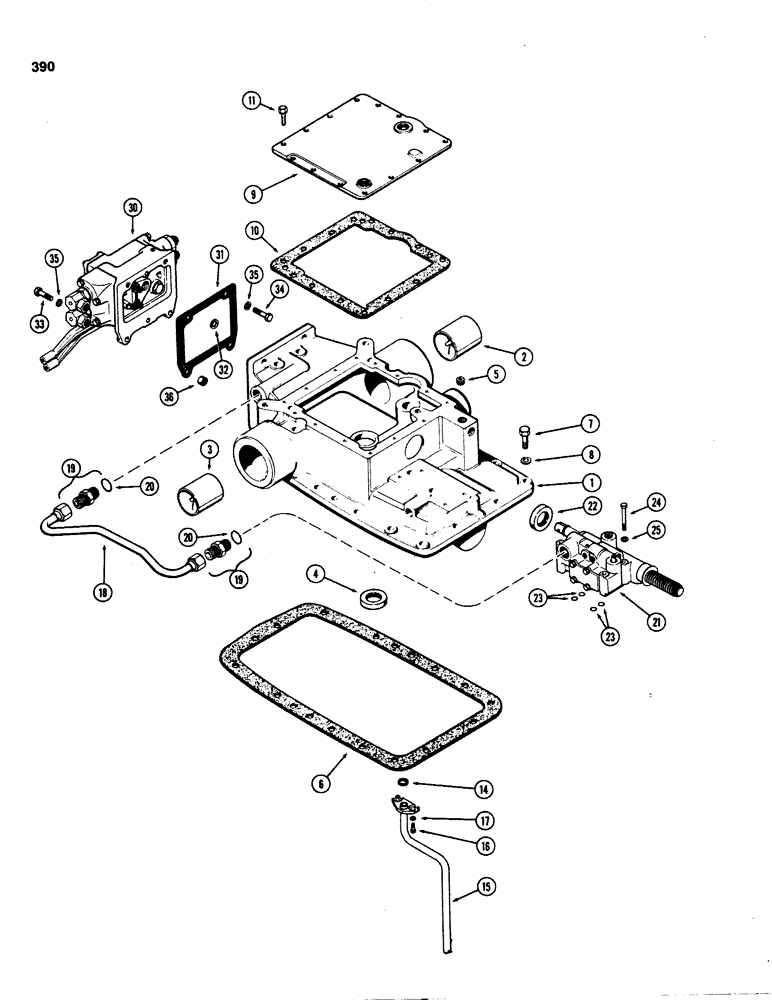

Запчасти Case IH 1070 (0390) - ROCKSHAFT HOUSING, WITH DRAFT-O-MATIC (09) - CHASSIS/ATTACHMENTS

1

A60639

HOUSING

ASSY - rockshaft, Includes: Ref. 2 - 5

1шт.

2

A32303

BUSHING,69.75mm ID x 74.73mm OD x 76.2mm L

- housing, 2-3/4 x 2-15/16 x 3"

1шт.

3

A32302

BUSHING,60.27mm ID x 65.2mm OD x 76.2mm L

- housing, 2-3/8 x 2-9/16 x 3"

1шт.

4

A12014

BUSHING

- housing, 1-1/2 x 1-3/4 x 3/4"

1шт.

5

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - 3/8" hex socket head, pipe

3шт.

6

A32299

GASKET

- housing to transmission case

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

7

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- 1/2 x 6" NC hex

2шт.

7

115-415

BOLT - 1/2 x 7" NC hex

2шт.

Use 26-8112

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

9

A59598

COVER

- rockshaft housing (replaces A59596)

1шт.

10

A33383

GASKET

-, Serial Range: cover-housing

1шт.

11

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

10шт.

11

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" NC hex

2шт.

14

A32343

SEAL

- return tube, 47/64 x 1-13/64 x 13/64"

1шт.

15

A58371

TUBE

- return, hydraulic fluid

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

A59602

TUBE

- draft control, Serial Range: valve-housing

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY - 1-1/16" PT, 3/4" tube, Incl. Ref. 20

2шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

21

A59600

VALVE

ASSY - draft control (See Fig. 446)

1шт.

22

A32307

SEAL

- valve to housing, 1-15/32 x 1-7/8 x 13/64"

1шт.

23

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 1/2 x 11/16 x 3/32"

4шт.

24

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

24

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

1шт.

25

92-5

LOCK WASHER,5/16"

4шт.

30

REF

INSTRUCTION

VALVE ASSY - auxiliary (See Figures 430 - 444)

1шт.

31

A32349

GASKET

-, Serial Range: valve-housing

1шт.

32

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

-, Serial Range: valve-housing

1шт.

33

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

35

92-8

LOCK WASHER,1/2"

4шт.

36

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.
