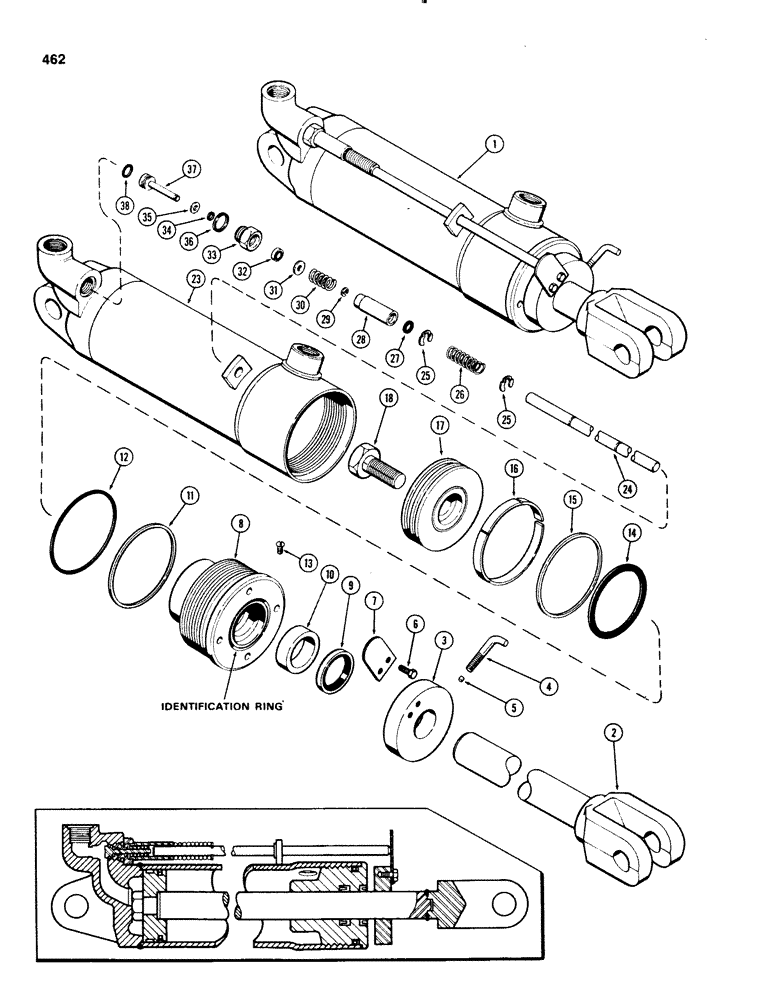

Запчасти Case IH 1070 (0462) - G33769 REMOTE HYDRAULIC CYLINDER, 4" BORE X 8" SROKE GLAND W/INDENTIFICATION RING W/O CENTER BEARING (08) - HYDRAULICS

1

G33769

CYLINDER

ASSY - hydraulic (Replaces G31945), Includes: Ref. 2 - 34

1шт.

2

G33772

ROD

- piston

1шт.

3

G32074

COLLAR

- stop

1шт.

4

G32077

BOLT

- hook

1шт.

5

G32076

PLUG

- locking

1шт.

6

187-1513

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping

2шт.

7

G32075

PLATE

- stop

1шт.

8

G34773

GLAND

ASSY - service (Replaces G34053), Includes: Ref. 9 - 12

1шт.

9

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod (1-1/2 x 2 x 5/16")

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

10

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

12

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8"

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

13

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" round slotted self-tapping

1шт.

14

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- 3-1/2 x 3-3/2 x 1/8"

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

15

G31928

RING

- seal, piston (teflon)

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

16

G31927

RING

- wear, piston (nylon)

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

17

G33774

PISTON

- cylinder

1шт.

18

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

23

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

24

G32428

ROD

- push

1шт.

25

G32429

RING

- retaining (Y type)

2шт.

26

G31934

SPRING

- rod return (2-5/16" long)

1шт.

27

A8613

O-RING,0.426" ID x 0.566" OD

- 7/16 x 9/16 x 1/16"

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

28

G32427

SLEEVE

- protector

1шт.

29

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

30

G31980

SPRING

- plunger return (1" long)

1шт.

31

G31929

WASHER

- spring backing (7/32 x 5/8 x 1/16")

1шт.

32

G31932

WIPER SEAL

SEAL - wiper (3/16 x 1/2 x 1/8"_

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

33

G31933

GLAND

ASSY - valve, Includes: Ref. 34 and 35

1шт.

34

G31935

O-RING,0.174" ID x 0.377" OD

- 11/64 x 3/8 x 7/64"

1шт.

35

G31948

WASHER

- 13/64 x 13/32 x 1/16"

1шт.

37

G31943

PLUNGER

- valve

1шт.

38

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- 27/64 x 5/8 x 3/32"

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.

G31946

KIT

- cylinder repair, Includes: Ref. 9 - 12, 14 - 16, 27, 32, 34, 36 and 38

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

Included w/ CYLINDER REPAIR KIT, G31946

1шт.
