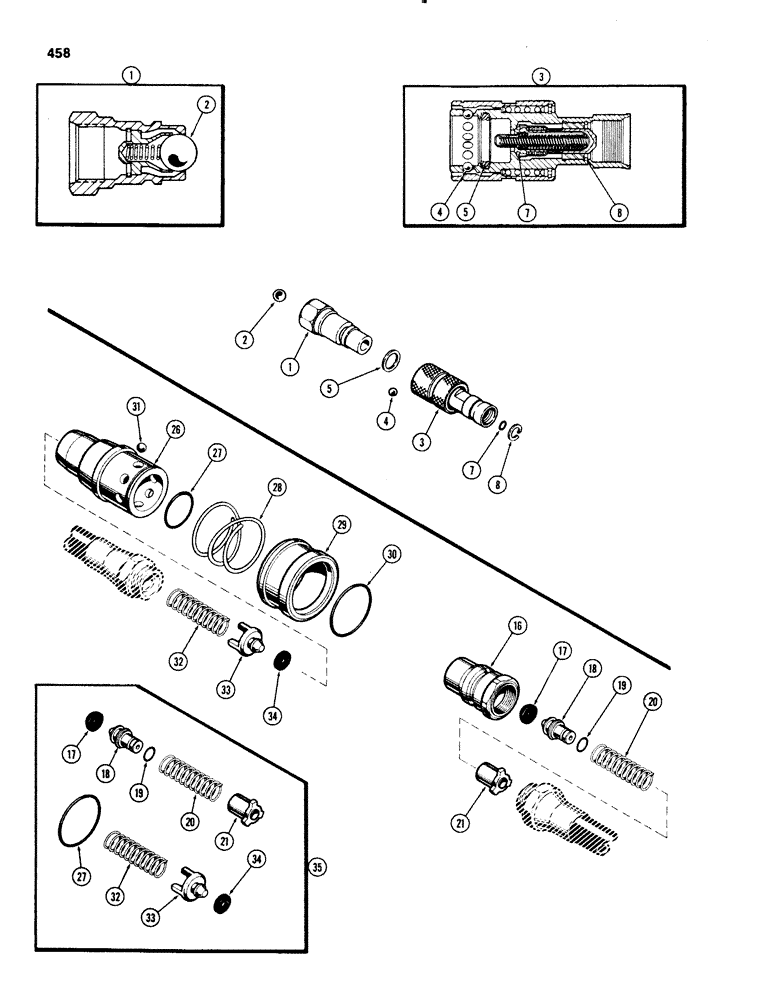

Запчасти Case IH 1070 (0458) - HYDRAULIC COUPLINGS, PRESSURE COUPLINGS (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSY - male (Replaces A66816), Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- coupling

1шт.

3

A147888

BREAKER POINTS

COUPLING ASSY - female (Replaces A141156), Includes: Ref. 4 - 8

4шт.

4

211-355

BALL

- coupling

10шт.

A47220

GASKET KIT

KIT - repair, coupling, Includes: Ref. 5 - 8

1шт.

5

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING - back-up

1шт.

7

A47222

SEAL

- poppet

1шт.

8

A45603

RING, LOCKING

RING - lock

1шт.

A28541

COUPLING, BREAK AWAY

COUPLING ASSY - male, break away, Includes: Ref. 16 -21

1шт.

16

A27356

PIPE FITTING

BODY - coupling, standard

1шт.

17

A33964

SEAL

- piston, standard couplings

1шт.

18

A27508

PISTON

- coupling, standard

1шт.

19

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- 1/4 x 3/8 x 1/16", standard couplings

1шт.

20

A27351

SPRING

- piston, standard couplings

1шт.

21

51200858

SLEEVE

- piston, standard couplings

1шт.

A28542

COUPLING, QUICK, FEM

COUPLING ASSY - female, hydraulic break-away, Includes: Ref. 26 - 34, standard couplings

4шт.

26

A27349

BODY

- coupling, standard

1шт.

27

A34848

O-RING

- 7/8 x 1-1/8 x 1/8", standard couplings

1шт.

28

A27354

SPRING

- sleeve tension, standard couplings

1шт.

29

A27353

SLEEVE

SLEEVE - lock & release, standard couplings

1шт.

30

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve retaining, standard couplings

1шт.

31

211-7

BALL,1/4" Dia

- swivel, standard couplings 1/4" Dia

8шт.

32

A11324

SPRING

- piston pressure, standard couplings

1шт.

33

A26215

PISTON

- coupling socket, standard couplings

1шт.

34

A33964

SEAL

- piston, standard couplings

1шт.

35

A40459

KIT

- repair, standard couplings

1шт.
