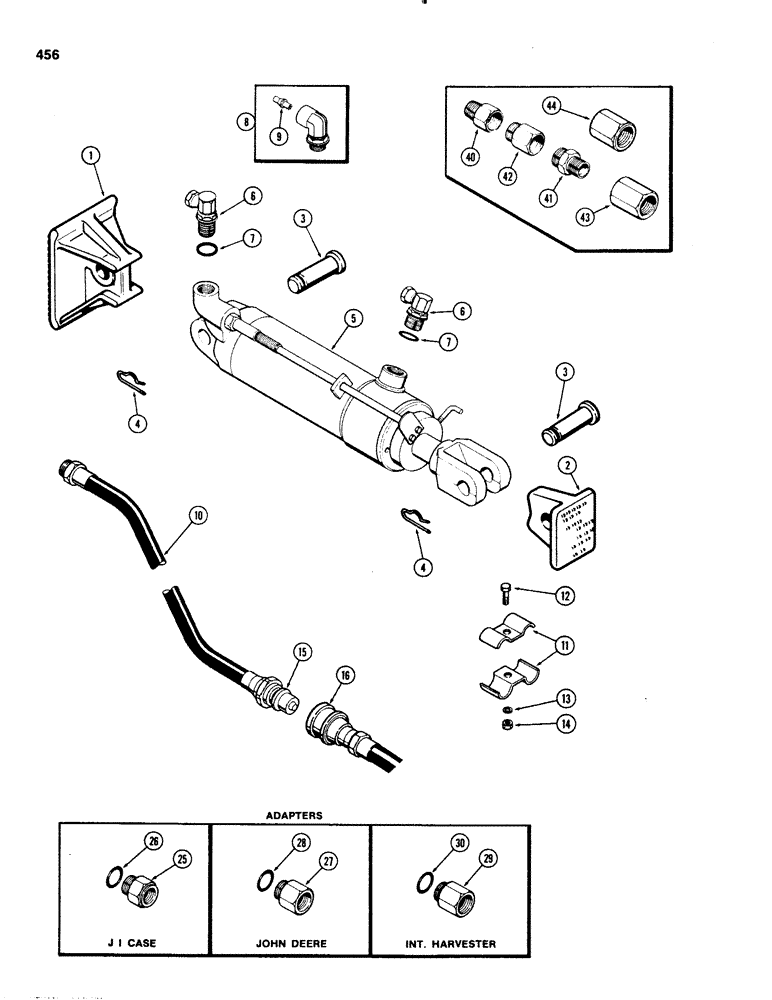

Запчасти Case IH 1070 (0456) - REMOTE HYDRAULIC CYLINDER AND HOSES (08) - HYDRAULICS

1

A57188

BASE

hydraulic cylinder

1шт.

2

A9163

hydraulic cylinder

1шт.

3

A27347

PIN

cylinder retaining

2шт.

4

A29054

HAIR PIN COTTER

cylinder retaining

2шт.

5

REF

INSTRUCTION

CYLINDER ASSY - remote hydraulic (See Fig. 460 - 466)

1шт.

6

2185201

ADAPTER - hose to cylinder 7/8"-90 deg. (See Ref 8), Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

8

A65953

HYDRAULIC VALVE

KIT - flow regulator (w/7/8"-14 thread), Includes: Ref. 9

1шт.

9

A57369

SPOOL

POPPET - check, return flow

1шт.

10

A8204

remote , 60" long

1шт.

10

A8205

remote hydraulic, 96" long

1шт.

10

A135006

HYDRAULIC HOSE,0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

- Remote (Replaces A20816) 0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

1шт.

10

A135007

HYDRAULIC HOSE,0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

- Remote (Replaces A20817) 0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

1шт.

11

A27440

CLAMP

hose

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

5/16" NC hex

1шт.

15

REF

INSTRUCTION

COUPLING ASSY - male, break-away (See Fig. 458)

1шт.

16

REF

INSTRUCTION

COUPLING ASY - female, break-away (See Fig. 458)

1шт.

25

A135687

ADAPTER

ASSY - hydraulic coupling (7/8"-14 male to 7/8"-18 female) (To convert J.I. Case Implement Hoses), Includes: Ref. 26, adapters, to convert implement non-standard fittings to sae 1st used trac ser no. 8770001

1шт.

Adapter to be used with A66816 male half break-away coupling assembly (See Fig. 459)

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32", convert implement non-standard fittings to sae 1st used trac ser no. 8770001

1шт.

27

A135688

ADAPTER

ASSY - hydraulic coupling (7/8"-14 male to 3/4"-16 female) (To convert John Deere Implement Hoses), Includes: Ref. 28, hose adapters, to convert implement non-standard fittings to sae 1st used trac ser no. 8770001

1шт.

Adapter to be used with A66816 male half break-away coupling assembly (See Fig. 459)

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32", hose adapters to convert implement non-standard fittings to sae 1st used trac ser no. 8770001

1шт.

29

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

ASSY - hydraulic coupling (7/8"-14 male to 1/2" female) (To convert International Harvester Implement Hoses), Includes: Ref. 30, adapters, to convert implement non-standard fittings to sae 1st used trac ser no. 8770001

1шт.

Adapter to be used with A66816 male half break-away coupling assembly (See Fig. 459)

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32", hose adapters, to convert implement non-standard fittings to sae 1st used trac ser no. 8770001

1шт.

40

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

7/8"-18 female to 1/2" PT male, used prior to trac ser no. 8770001

1шт.

41

A27359

ADAPTER

7/8"-18 male to 1/2" PT male, used prior to trac ser no. 8770001

1шт.

42

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

7/8"-18 male to 1/2" PT female, used prior to trac ser no. 8770001

1шт.

43

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

7/8"-18 female to 1/2" PT female, used prior to trac ser no. 8770001

1шт.

44

A135110

ADAPTER

7/8"-14 female to 1/2" PT female, used prior to trac ser no. 8770001

1шт.
