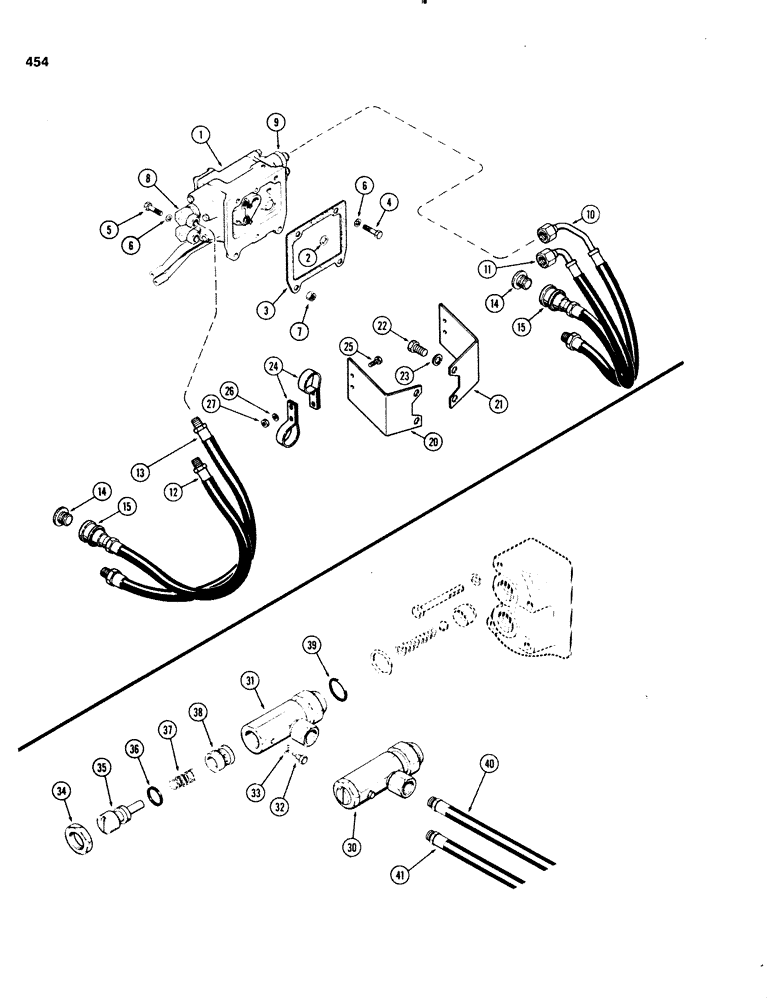

Запчасти Case IH 1070 (0454) - BREAK-AWAY COUPLINGS & LINES, STANDARD COUPLINGS, FOR A42248 VALVE PRIOR TO TRACTOR SN 8709725 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY - auxiliary (See Figure 442)

1шт.

2

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- valve (21/32 x 29/32 x 9/64")

1шт.

3

A32349

GASKET

-, Serial Range: valve-housing

1шт.

4

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.

8

A57562

ADAPTER

- outlet, RH hose (90 deg.)

2шт.

9

A64708

FITTING

- outlet, LF hose (7/8" NF x 1-1/16" NF x 1-3/4" long)

2шт.

10

A33003

HOSE

- upper LH outlet (18-3/16" long)

1шт.

11

A32999

HOSE

- lower LH outlet (24-7/16" long)

1шт.

12

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - lower RH outlet (31-5/8" long)

1шт.

13

A60395

HOSE,12.7mm ID x 726.95mm L

- upper RH outlet (29-5/8" long)

1шт.

14

A65044

PLUG

- dust, female coupling (black)

2шт.

14

A65045

PLUG

- dust, female coupling (yellow)

2шт.

15

A28542

COUPLING, QUICK, FEM

COUPLING ASSY - female break-away (See Fig. 458)

4шт.

20

A57660

BRACKET

- mounting, RH remote coupling

1шт.

21

A57661

BRACKET - mounting, LH remote coupling

1шт.

22

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

A57662

CLAMP

-, Serial Range: coupling-bracket

4шт.

25

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

27

25-104

NUT,1/4"-20, G5

4шт.

A65107

REGULATOR

KIT - speed, remote cylinder, Includes: Ref. 30 - 39

1шт.

Can be used in place of A42248 valve

1шт.

30

A65105

VALVE

REGULATOR ASSY - cylinder speed, Includes: Ref. 31 - 38

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - (Order A65107), hydraulic cylinder speed regulator

1шт.

32

A31095

SCREW,Hex, #8 - 32 x 15/32"

- stop, hydraulic cylinder speed regulator

1шт.

33

192-106

WASHER

- lock, #8, hydraulic cylinder speed regulator

1шт.

34

A31094

JAM NUT

- 7/8" NF hex lock, hydraulic cylinder speed regulator

1шт.

35

A31093

ADJUSTMENT SCREW,7/8" - 14 x 2 11/32", Gr 2

SCREW - adjusting, hydraulic cylinder speed regulator

1шт.

36

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- 9/16 x 3/4 x 3/32", hydraulic cylinder speed regulator

1шт.

37

A27452

SPRING

- pressure, hydraulic cylinder speed regulator

1шт.

38

A31092

PISTON

- speed regulator, hydraulic cylinder

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8", hydraulic cylinder speed regulator

1шт.

40

A60395

HOSE,12.7mm ID x 726.95mm L

- upper RH adapter, hydraulic cylinder speed regulator

1шт.

41

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - lower RH adapter, hydraulic cylinder speed regulator

1шт.
