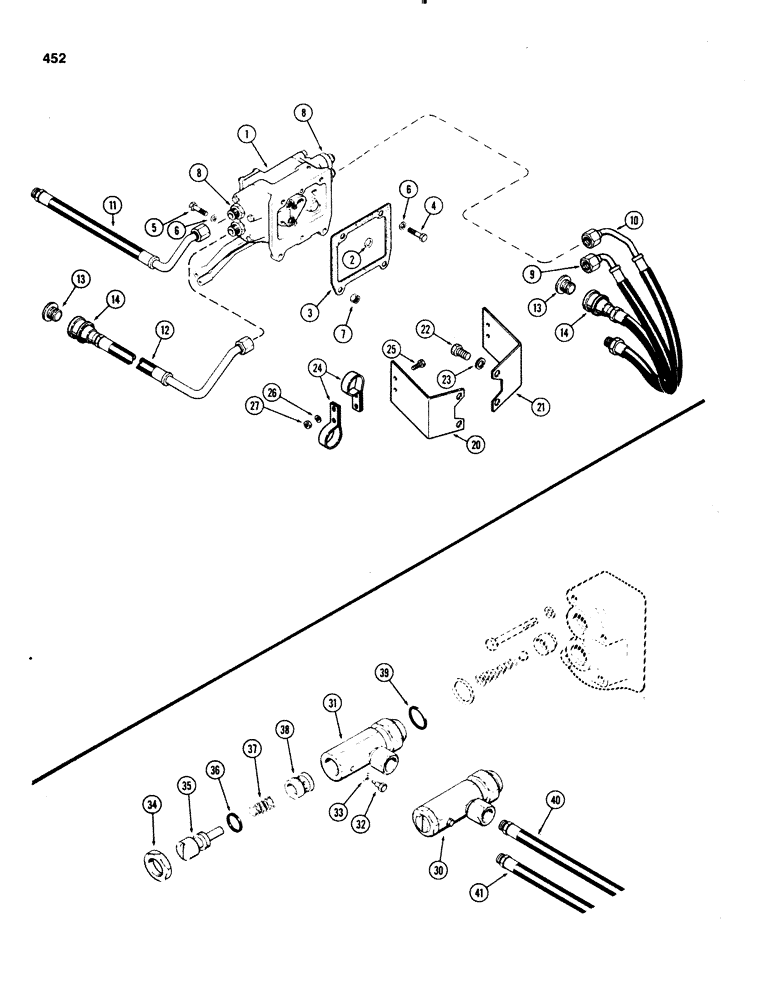

Запчасти Case IH 1070 (0452) - BREAK-AWAY COUPLINGS & LINES, STANDARD COUPLINGS, FOR A45294, A44745 & A44192 VALVES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY - auxiliary (See Figure 430)

1шт.

2

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

valve, 21/32 x 29/32 x 9/64"

1шт.

3

A32349

GASKET

valve

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

1/2" NC hex

2шт.

8

A64708

FITTING

outlet, RH & LH hose (7/8" NF x 1-1/16" NF x 1-3/4" long)

4шт.

9

A33003

HOSE

hydraulic, LH upper (18-3/16" long)

1шт.

10

A32999

HOSE

hydraulic, LH lower (24-7/16" long)

1шт.

11

A65328

HOSE

hydraulic, RH upper (18-51/64" long)

1шт.

12

A65327

HOSE

hydraulic, RH lower (23-1/2" long)

1шт.

13

A65044

PLUG

dust, female coupling (Black)

2шт.

13

A65045

PLUG

dust, female coupling (Yellow)

2шт.

14

A28542

COUPLING, QUICK, FEM

ASSY. - female half (See Fig. 458)

4шт.

20

A57660

BRACKET

mounting, RH coupling

1шт.

21

A57661

mounting, LH coupling

1шт.

22

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

A57662

CLAMP

coupling

4шт.

25

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

27

25-104

NUT,1/4"-20, G5

4шт.

A65107

REGULATOR

KIT - speed, remote cylinder, hyd cyl speed regualtor, Includes: Ref. 30 - 41

1шт.

1st used tractor serial number 8709725

1шт.

30

A65105

VALVE

REGULATOR ASSY - cylinder speed, hydraulic , Includes: Ref. 31 - 39

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - (Order A65107), hyd cyl speed regualtor

1шт.

32

A31095

SCREW,Hex, #8 - 32 x 15/32"

stop, hyd cyl speed regualtor

1шт.

33

192-106

WASHER

lock, #8, hyd cyl speed regualtor

1шт.

34

A31094

JAM NUT

lock, adjusting screw (7/8" NF hex), hyd cyl speed regualtor

1шт.

35

A31093

ADJUSTMENT SCREW,7/8" - 14 x 2 11/32", Gr 2

adjusting, hyd cyl speed regualtor

1шт.

36

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

9/16 x 3/4 x 3/32", hyd cyl speed regualtor

1шт.

37

A27452

SPRING

pressure, hyd cyl speed regualtor

1шт.

38

A31092

PISTON

speed regulator, hyd cyl

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8", hyd cyl speed regualtor

1шт.

40

A60395

HOSE,12.7mm ID x 726.95mm L

hydraulic, RH upper (See Fig. 454), hyd cyl speed regualtor

1шт.

41

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

lower RH adapter (See Fig. 454), hyd cyl speed regualtor

1шт.
