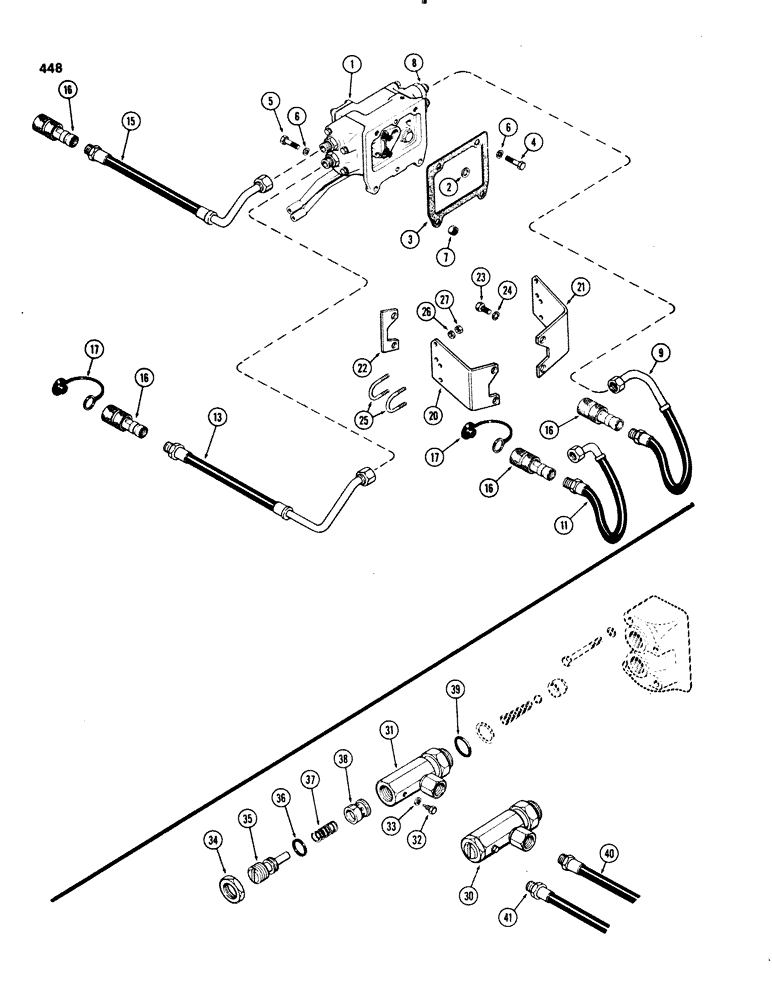

Запчасти Case IH 1070 (0448) - BREAK-AWAY COUPLINGS AND LINES, PRESSURE COUPLINGS, FOR A45294, A44745 & A44192 VALVES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY - auxiliary (See Figure 430)

1шт.

2

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- valve, 21/32 x 29/32 x 9/64"

1шт.

3

A32349

GASKET

-, Serial Range: valve-housing

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.

8

A64708

FITTING

- outlet, RH & LH hose (7/8" NF x 1-1/16" NF x 1-3/4" long)

4шт.

9

A66791

HOSE

- hydraulic, LH upper

1шт.

11

A66793

HOSE

- hydraulic, LH lower

1шт.

13

A66792

HOSE

- hydraulic, RH upper

1шт.

15

A66790

HOSE

- hydraulic, RH lower

1шт.

16

REF

INSTRUCTION

COULPING ASSY - female (See Figure 458)

1шт.

17

A137135

PLUG

- dust, female coupling (black) (w/recess) (1st used trac ser no. 8785145)

2шт.

17

A137136

PLUG

- dust, female coupling (white) (w/recess) (1st used trac ser no. 8785145)

2шт.

17

A135004

PLUG

- dust, female couplings (w/o recess) (Used prior to trac ser no. 8785145)

4шт.

20

A66786

BRACKET - mounting, RH couplings

1шт.

21

A66787

BRACKET

- mounting, LH couplings

1шт.

22

A135057

STIFFENER - bracket, RH

1шт.

23

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25

A66788

CLAMP

-, Serial Range: coupling-bracket

4шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

A65107

REGULATOR

KIT - speed, remote cylinder, Includes: Ref. 30 - 40, hydraulic

1шт.

30

A65105

VALVE

REGULATOR ASSY - hydraulic cylinder speed, Includes: Ref. 31 - 39

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - regulator, hydraulic cylinder speed regulator

1шт.

32

A31095

SCREW,Hex, #8 - 32 x 15/32"

- speed regulator stop, hydraulic cylinder

1шт.

33

192-106

WASHER

- lock, #8, hydraulic cylinder speed regulator

1шт.

34

A31094

JAM NUT

- adjusting screw locking, hydraulic cylinder speed regulator

1шт.

35

A31093

ADJUSTMENT SCREW,7/8" - 14 x 2 11/32", Gr 2

SCREW - speed regulating adjusting, hydraulic cylinder

1шт.

36

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- 9/16 x 3/4 x 3/32", hydraulic cylinder speed regulator

1шт.

37

A27452

SPRING

- piston, hydraulic cylinder speed regulator

1шт.

38

A31092

PISTON

- speed regulating, hydraulic cylinder

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8", hydraulic cylinder speed regulator

1шт.

40

A60395

HOSE,12.7mm ID x 726.95mm L

- upper RH adapter (See Figure 456), hydraulic cylinder speed regulator

1шт.

41

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - lower, RH adapter (See Figure 456), hydraulic cylinder speed regulator

1шт.
